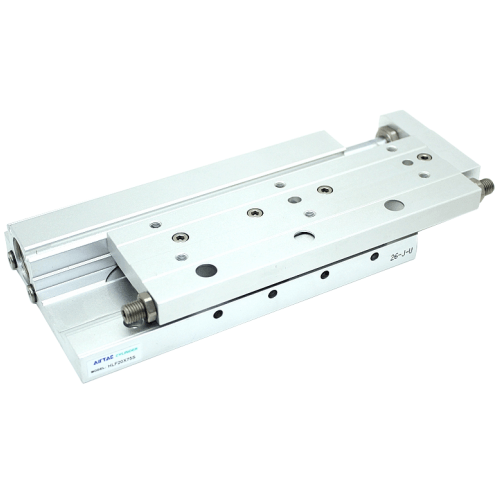

Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X40S
The AirTAC Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X40S is a genuine HLF slide-table cylinder, 12 mm bore: a double-acting dual-rod air cylinder integrated with a low-height cross-roller guide so the table travels straight with high rigidity and low deflection. It delivers about 45.2 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidelow-height cross-roller guide
- Bore12 mm
- Push thrust @0.5 MPa45.2 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X40S
The HLF12X40S is an AirTAC low-height cross-roller slide-table cylinder with a 12 mm bore and 40 mm stroke. It integrates a double-acting dual-rod air cylinder with a cross-roller linear guide in a reduced-height body, so the moving table travels straight with minimal deflection. The dual rod doubles the thrust, and a floating joint spares the rod from side torque. This bore size delivers moderate thrust suitable for guided transfer and positioning in tight vertical spaces.
This is a genuine AirTAC part. A magnet is standard for position sensing, and CMSH, DMSH, or EMSH sensor switches fit the body's magnetic-switch slots. We confirm exact thrust, dimensions, and allowable load and moment values from the AirTAC datasheet or on-page spec table on request.
Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X40S Technical Specifications
| Model | Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X40S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLF (low-height cross-roller guide) |
| Bore | 12 mm |
| Push thrust @0.5 MPa | 45.2 N |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Choose the 12 mm bore when you need moderate guided thrust in a low-profile envelope; a larger bore increases push force. The HLF cross-roller guide suits applications demanding high rigidity and precision in a reduced-height installation with two port sets. Select the 40 mm stroke within the bore's available range. Thread is PT (BSPT); G or NPT options use the G or T suffix. For load, moment, and kinetic-energy limits, route sizing to us - these are published as tables and deflection curves in the datasheet.
Applications
Pick-and-Place Head
Low-height cross-roller guidance positions small parts precisely in pick-and-place stations where vertical clearance is limited.
Small-Parts Transfer
Moves lightweight components between conveyor lanes with straight, deflection-resistant travel in a compact slide body.
Assembly Stage Stop
Acts as a guided stopper or positioning stage in assembly lines, holding workpieces accurately thanks to cross-roller rigidity.
FAQ
What guide type does the HLF series use?
The HLF is an integrated cross-roller slide table with a low-height body, giving high rigidity and precision straight-line travel in a more compact profile than standard HLS cross-roller tables. It provides two port sets but has no adjuster-position option.
What is the maximum operating pressure for the HLF12X40S?
Maximum working pressure is 0.7 MPa (100 psi). For bore 12 the operating range is 0.15-0.7 MPa (22-100 psi). Meter-out speed control should keep travel between 50 and 500 mm/s.
