Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X50S
The AirTAC Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X50S is a genuine HLF slide-table cylinder, 12 mm bore: a double-acting dual-rod air cylinder integrated with a low-height cross-roller guide so the table travels straight with high rigidity and low deflection. It delivers about 45.2 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidelow-height cross-roller guide
- Bore12 mm
- Push thrust @0.5 MPa45.2 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X50S

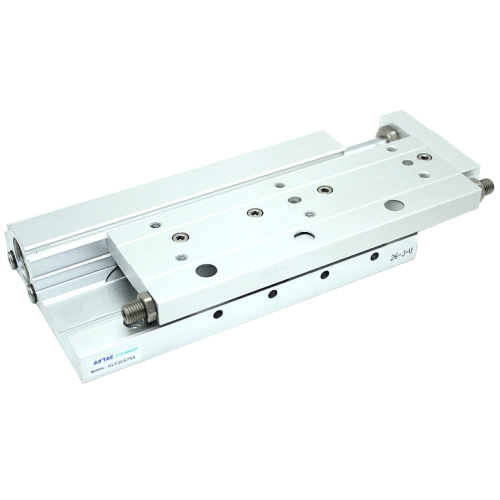

The HLF12X50S is an AirTAC low-height cross-roller slide-table cylinder with a 12 mm bore and 50 mm stroke. It integrates a double-acting dual-rod air cylinder with a cross-roller linear guide in a reduced-height body, so the moving table travels straight with minimal deflection. The dual rod doubles the thrust, and a floating joint spares the rod from side torque. This bore size delivers moderate thrust suitable for guided transfer and positioning tasks where vertical space is constrained.
This is a genuine AirTAC part. A magnet is standard for position sensing, and CMSH, DMSH, or EMSH sensor switches fit the body's magnetic-switch slots. We confirm exact thrust, dimensions, and allowable load and moment values from the AirTAC datasheet or on-page spec table on request.
Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X50S Technical Specifications
| Model | Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF12X50S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLF (low-height cross-roller guide) |
| Bore | 12 mm |
| Push thrust @0.5 MPa | 45.2 N |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Choose the 12 mm bore when you need moderate guided thrust in a low-profile envelope; a larger bore increases push force. The HLF cross-roller guide suits applications demanding high rigidity and precision in a reduced-height installation with two port sets. Select the 50 mm stroke within the bore's available range. Thread is PT (BSPT); G or NPT options use the G or T suffix. For load, moment, and kinetic-energy limits, route sizing to us - these are published as tables and deflection curves in the datasheet.
Applications
Component Placement Stage
Low-height cross-roller guidance places electronic components accurately on substrates where machine height must stay minimal.
Gripper Traverse
Carries a gripper across a 50 mm stroke with straight, rigid motion so parts remain aligned during pick-up and release.
Low-Profile Transfer
Transfers small workpieces between stations in compact automation cells where a standard-height slide would not fit.
FAQ
How does the HLF12X50S differ from an HLS cross-roller table?
The HLF uses the same cross-roller guide principle as the HLS but in a reduced-height body, making it ideal for installations with tight vertical clearance. It offers two port sets rather than the full HLS porting options and has no adjuster-position code.
Where can I find the allowable load and moment for this model?
Allowable load, moment, and kinetic-energy values are published as tables and deflection curves in the AirTAC datasheet. We confirm the exact values for the HLF12X50S from the datasheet or on-page spec table on request.
