Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X100S
The AirTAC Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X100S is a genuine HLF slide-table cylinder, 16 mm bore: a double-acting dual-rod air cylinder integrated with a low-height cross-roller guide so the table travels straight with high rigidity and low deflection. It delivers about 80.4 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidelow-height cross-roller guide
- Bore16 mm
- Push thrust @0.5 MPa80.4 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X100S

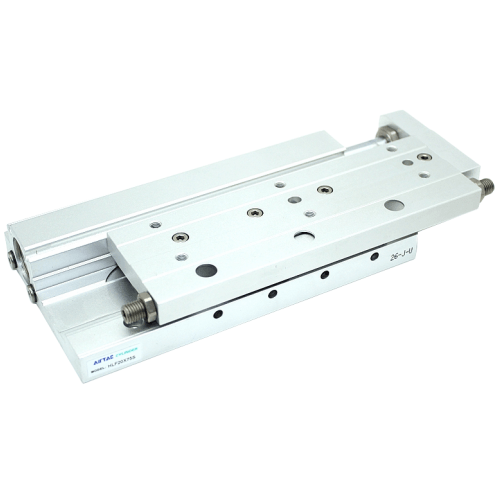

The HLF16X100S is an AirTAC low-height cross-roller slide-table cylinder with a 16 mm bore and 100 mm stroke. It integrates a double-acting dual-rod air cylinder with a cross-roller linear guide in a reduced-height body, so the moving table travels straight with minimal deflection. The dual rod doubles the thrust, and a floating joint spares the rod from side torque. The 16 mm bore delivers higher thrust than the smaller bores, making it suitable for moving larger or heavier workpieces over a long 100 mm stroke.
This is a genuine AirTAC part. A magnet is standard for position sensing, and CMSH, DMSH, or EMSH sensor switches fit the body's magnetic-switch slots. We confirm exact thrust, dimensions, and allowable load and moment values from the AirTAC datasheet or on-page spec table on request.
Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X100S Technical Specifications
| Model | Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X100S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLF (low-height cross-roller guide) |
| Bore | 16 mm |
| Push thrust @0.5 MPa | 80.4 N |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Choose the 16 mm bore when your application needs higher guided thrust and a long 100 mm stroke in a low-profile body; stepping up from bore 12 to 16 increases push force. The HLF cross-roller guide provides high rigidity and precision straight-line travel in a reduced-height installation with two port sets. Thread is PT (BSPT); G or NPT options use the G or T suffix. For load, moment, and kinetic-energy limits, route sizing to us - these are published as tables and deflection curves in the datasheet.
Applications
Long-Stroke Pick-and-Place
Cross-roller rigidity keeps parts aligned over a 100 mm travel in pick-and-place heads that need both reach and low body height.
Workpiece Transfer Gate
Moves heavier parts between conveyor segments with straight, deflection-resistant motion over a full 100 mm stroke.
Assembly Positioning Slide
Positions subassemblies at multiple stations along the 100 mm stroke with repeatable accuracy thanks to the cross-roller guide.
FAQ
What thrust level does the 16 mm bore provide compared to smaller HLF bores?
The 16 mm bore delivers higher thrust than the 8 mm and 12 mm HLF bores, making it better suited for moving larger or heavier workpieces. Exact thrust values are shown in the on-page spec table or datasheet; we confirm them on request.
What is the maximum working pressure for the HLF16X100S?
Maximum working pressure is 0.7 MPa (100 psi). For bore 16 the operating range is 0.15-0.7 MPa (22-100 psi). Keep travel speed between 50 and 500 mm/s using meter-out flow control.
