Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X20S

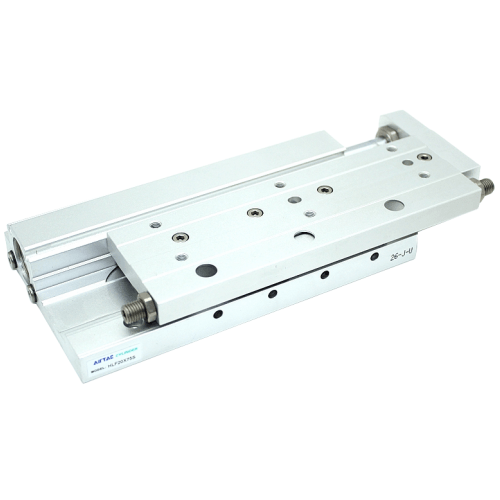

The AirTAC Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X20S is a genuine HLF slide-table cylinder, 16 mm bore: a double-acting dual-rod air cylinder integrated with a low-height cross-roller guide so the table travels straight with high rigidity and low deflection. It delivers about 80.4 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidelow-height cross-roller guide
- Bore16 mm
- Push thrust @0.5 MPa80.4 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X20S
The AirTAC HLF16X20S is a double-acting dual-rod slide-table cylinder with an integrated low-height cross-roller linear guide built into the body. The cross-roller construction provides high rigidity and accurate straight-line motion in a reduced-height package, well suited for assemblies where vertical clearance is limited. A floating joint protects the rods from side torque, and the dual-rod layout doubles thrust for a bore 16 mm cylinder with a 20 mm stroke.
This is a genuine AirTAC component fitted with a standard sintered NdFeB magnet for position detection. CMSH, DMSH, and EMSH series sensor switches seat in the body slots. We verify thrust figures, dimensions, and allowable load/moment specifications from the AirTAC datasheet or the on-page spec table whenever you request them.
Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X20S Technical Specifications
| Model | Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X20S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLF (low-height cross-roller guide) |
| Bore | 16 mm |
| Push thrust @0.5 MPa | 80.4 N |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Bore 16 mm provides moderate thrust in the HLF series; a larger bore gives more push while a smaller bore saves space. Select the HLF sub-family when cross-roller precision is required but the installation height must stay low, as opposed to HLS for standard-height maximum rigidity, HLQ for ball-bearing anti-rust service, or HLH for miniature roller-ball straightness. The 20 mm stroke covers a versatile mid-range travel for part transfer and gripper motion.
The thread is PT by default; order with a G or T suffix for G or NPT threads respectively. Operating pressure for bore 16 is 0.15-0.7 MPa (22-100 psi); never exceed 0.7 MPa. For allowable load, moment, and deflection, we reference the published tables and curves in the datasheet and can confirm values for your specific application.
Applications
Small-Parts Transfer
Transfer small workpieces across a 20 mm stroke between conveyors or fixtures; the cross-roller guide keeps travel precise and the low body height fits under overhead tooling.
Assembly Stage Positioning
Use the HLF16X20S to position a sub-assembly 20 mm for a pressing or insertion operation; dual rods double the thrust and the floating joint prevents rod torque damage.
Compact Gate Mechanism
Actuate a small gate or diverter 20 mm in and out within a low-height enclosure where a standard slide table would not fit vertically.
FAQ
Does the HLF16X20S come with a magnet for position sensing?
Yes. Every HLF model is magnet-fitted as standard; the S in the code is not an optional add-on. CMSH, DMSH, and EMSH sensor switches are the compatible series, seating directly into the magnetic-switch slots on the body.
How do I confirm allowable load and moment for my mounting orientation?
Allowable load, moment, and table deflection are published as tables and curves in the AirTAC datasheet. We confirm the exact values for your specific mounting direction and payload on request rather than quoting a single figure.
