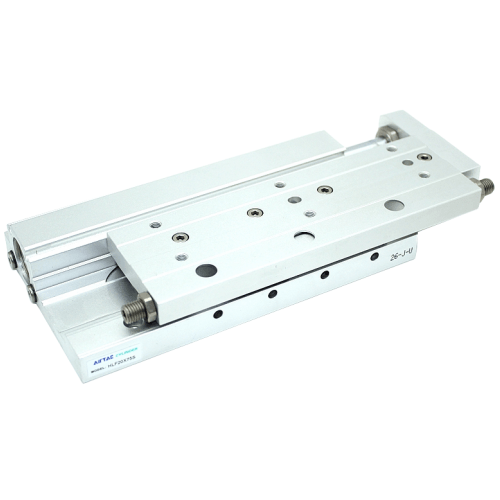

Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X75S
The AirTAC Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X75S is a genuine HLF slide-table cylinder, 16 mm bore: a double-acting dual-rod air cylinder integrated with a low-height cross-roller guide so the table travels straight with high rigidity and low deflection. It delivers about 80.4 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidelow-height cross-roller guide
- Bore16 mm
- Push thrust @0.5 MPa80.4 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X75S
The AirTAC HLF16X75S is a double-acting dual-rod slide-table cylinder that pairs a cross-roller linear guide with a low-height body, offering precise straight-line travel over a 75 mm stroke in a compact vertical envelope. With a 16 mm bore it provides moderate thrust through two rods, while the floating joint isolates the rods from side torque. The cross-roller guide maintains rigidity and low deflection across the full 75 mm travel, keeping the table stable even at the extended position.
This is a genuine AirTAC part with a standard magnet for position sensing using CMSH, DMSH, or EMSH switches. We confirm thrust, dimensions, and allowable load-moment data from the datasheet or on-page spec table on request.
Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X75S Technical Specifications
| Model | Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X75S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLF (low-height cross-roller guide) |
| Bore | 16 mm |
| Push thrust @0.5 MPa | 80.4 N |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
The 16 mm bore provides moderate thrust in a low-height cross-roller package. The 75 mm stroke is the longest standard option for this bore, suited to applications needing more guided travel without a taller body. Choose PT, G, or NPT thread to match fittings - two port sets on the body allow flexible pneumatic routing. Route load and moment sizing to us; we reference the published Wmax, Emax, and moment tables along with deflection curves for this specific model.
Applications
Extended Pick-and-Place
Moves a suction gripper across a 75 mm stroke for pick-and-place with the low-height cross-roller body fitting under conveyor frames and tooling.
Component Shuttle
Shuttles small parts between workstations over 75 mm of guided travel, the cross-roller guide keeping deflection minimal at full extension.
Indexing Slide
Indexes a workpiece holder precisely between two positions along a 75 mm path with the dual-rod cross-roller guide providing repeatable straight-line motion.
FAQ
What stroke options are available for the HLF 16 mm bore?
The HLF16 bore offers several standard strokes including 75 mm. All strokes share the same 16 mm bore thrust and 0.15 to 0.7 MPa operating range. Select the stroke that matches your required travel and confirm load-moment suitability with us using the published tables.
How are allowable load and moment confirmed for the HLF16X75S?
Allowable load, moment, and kinetic energy are published as Wmax, Emax, and moment tables, with table deflection shown as curves. We confirm these values from the datasheet for your specific stroke and mounting orientation on request.
