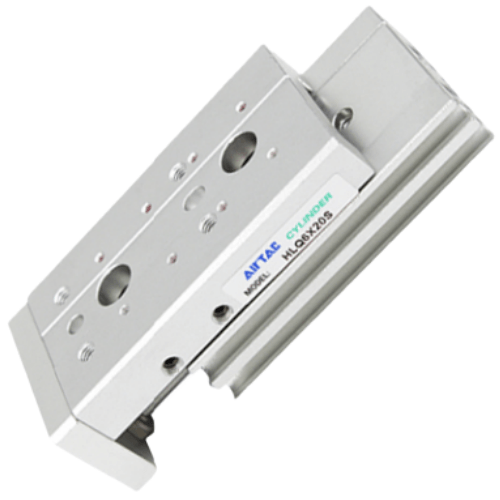

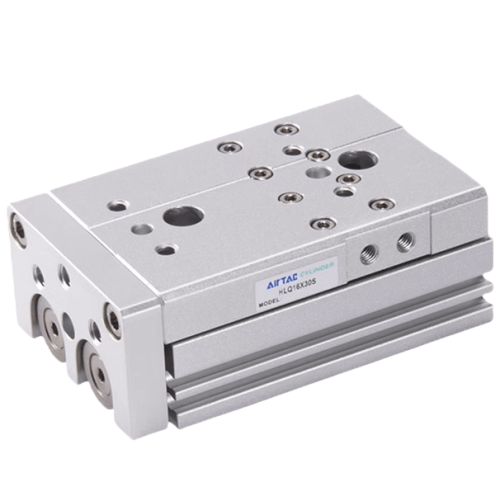

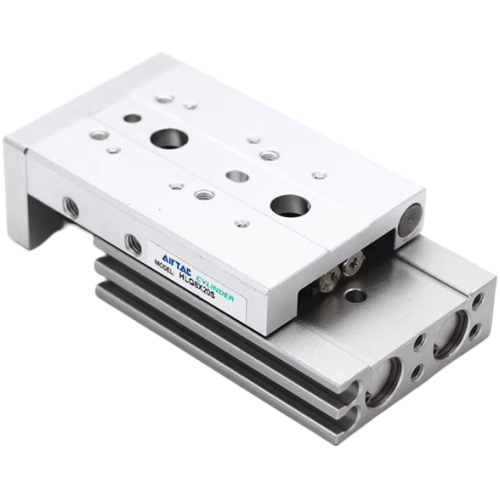

Airtac HLQ Dual-Axis Precision Slide Table Cylinder HLQ25X100SA
The AirTAC Airtac HLQ Dual-Axis Precision Slide Table Cylinder HLQ25X100SA is a genuine HLQ slide-table cylinder, 25 mm bore: a double-acting dual-rod air cylinder integrated with a ball-bearing guide so the table travels straight with high rigidity and low deflection. It delivers about 378 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guideball-bearing guide
- Bore25 mm
- Push thrust @0.5 MPa378 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port size1/8"
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac HLQ Dual-Axis Precision Slide Table Cylinder HLQ25X100SA
The AirTAC HLQ25X100SA is a double-acting dual-rod slide-table cylinder combining an air cylinder with a ball-bearing linear guide for precise straight-line movement. At 25 mm bore and 100 mm stroke, the dual rods provide higher thrust while the floating joint isolates the rods from side torque. Adjustable rubber stoppers at both ends give controlled end-of-stroke cushioning, and the ball-bearing guide provides anti-rust, dust-proof performance with minimal deflection.
As a genuine AirTAC component, this slide table carries a standard magnet for position detection and accepts CMSH, DMSH, or EMSH sensor switches in the body slots. Typical construction uses aluminium-alloy body and table, carbon-steel and stainless guide rods, NBR seals, and a TPU bumper. Contact us to confirm thrust, dimensions, and allowable load-moment from the published datasheet tables and curves.
Airtac HLQ Dual-Axis Precision Slide Table Cylinder HLQ25X100SA Technical Specifications
| Model | Airtac HLQ Dual-Axis Precision Slide Table Cylinder HLQ25X100SA |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLQ (ball-bearing guide) |
| Bore | 25 mm |
| Push thrust @0.5 MPa | 378 N |
| Port size | 1/8" (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
A 25 mm bore provides higher thrust within the HLQ ball-bearing family; the on-page spec table carries the verified thrust value. The 100 mm stroke sits within the bore 25 range from the datasheet. The HLQ ball-bearing guide is the right choice when anti-rust and dust-proof operation are priorities, versus the cross-roller HLS for maximum rigidity or the low-height HLF for tight vertical envelopes.

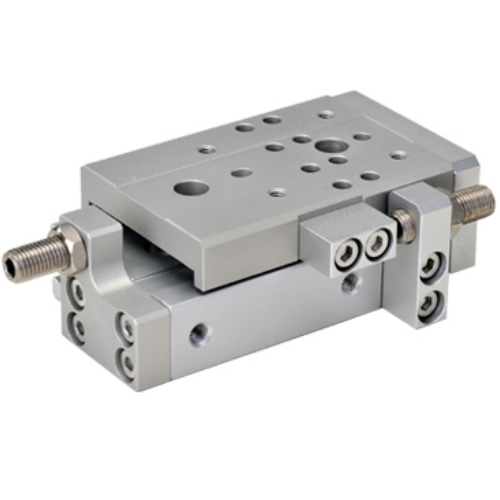

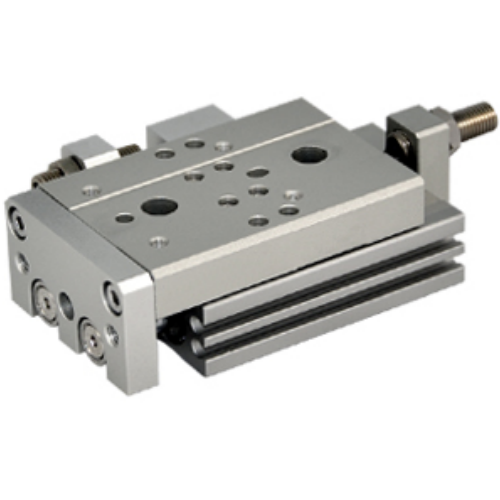

This model includes adjustable rubber stoppers at both ends (A code) for controlled end-of-stroke cushioning beyond the standard bumper. Thread is PT standard; request G or T for alternate port standards. We size load, moment, and kinetic energy from the published Wmax, Emax, and moment tables, so send us your application details.
Applications
Gripper Traverse
Carries a gripper across a 100 mm stroke for part handling, with rubber stoppers cushioning both ends for repeatable positioning.
Part Transfer Line
Moves small components between workstations with the ball-bearing guide providing anti-rust, dust-proof travel in exposed areas.
Assembly Positioning
Presents parts at an assembly station with dual-rod thrust and both-end rubber stoppers ensuring controlled, repeatable end positions.
FAQ
What does the A adjuster code mean on the HLQ25X100SA?
The A code indicates adjustable rubber stoppers at both ends of the stroke, providing cushioned end-position control beyond the standard bumper. Other options include B for shock absorbers, AS or BS for extension-side only, and AF or BF for retraction-side only.
How is allowable load and moment confirmed for this model?
Allowable load, moment, and kinetic energy are published as Wmax, Emax, and moment tables with deflection curves in the datasheet. We reference these to confirm suitability for your application; contact us with your load and stroke requirements.
