Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X125SBF

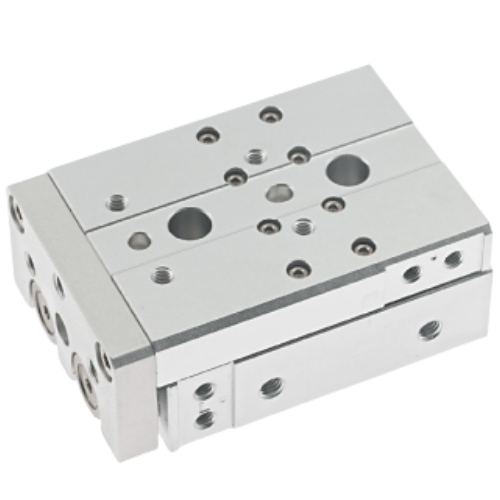

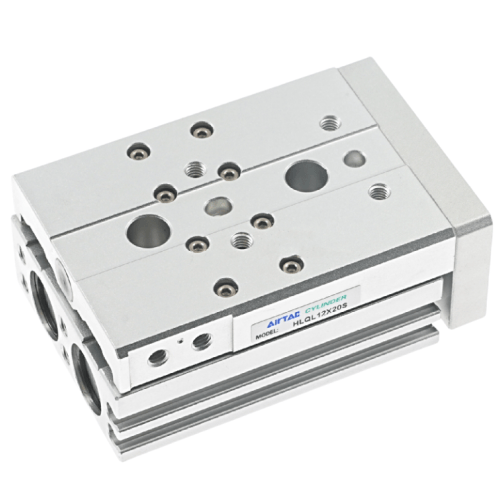

The AirTAC Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X125SBF is a genuine HLQ slide-table cylinder, 25 mm bore: a double-acting dual-rod air cylinder integrated with a ball-bearing guide so the table travels straight with high rigidity and low deflection. It delivers about 378 N of push at 0.5 MPa. This is the symmetrical version. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guideball-bearing guide
- Bore25 mm
- Push thrust @0.5 MPa378 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port size1/8"
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X125SBF
The AirTAC HLQL25X125SBF is a symmetrical ball-bearing slide-table cylinder with a 25 mm bore and 125 mm stroke. It combines an air cylinder with a linear ball-bearing guide for straight, low-deflection table travel. The dual-rod design doubles thrust, and the floating joint isolates the rods from side torque. The BF adjuster places a shock absorber on the retraction side only, softening the return-stroke stop where most impact energy typically occurs. This is a genuine AirTAC part with a standard magnet for position sensing; compatible sensor switches include CMSH, DMSH, and EMSH series. We confirm exact thrust, dimensions, load, and moment values from the datasheet or on-page spec table on request.
Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X125SBF Technical Specifications
| Model | Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X125SBF |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLQL (ball-bearing guide) |
| Bore | 25 mm |
| Push thrust @0.5 MPa | 378 N |
| Port size | 1/8" (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
The 25 mm bore is selected when higher thrust is needed for heavier workpieces; smaller bores suit lighter loads. HLQL ball-bearing guides are chosen for anti-rust and dust-proof performance where a cross-roller HLS would be over-specified. The 125 mm stroke falls within the bore 25 range. The BF adjuster adds a retraction-side shock absorber, ideal when the return stroke carries a heavier payload or needs gentler stopping than the extension stroke. Thread is PT. For load and moment sizing we reference the published Wmax, Emax, moment tables, and deflection curves - contact us to confirm fitment.
Applications
Assembly Stage Push
Pushes a part into an assembly fixture on extension and retracts with shock-absorber protection on the return stroke for repeatable positioning.
Stopper Mechanism
Acts as a guided stopper for workpieces on a line, extending to halt flow and retracting smoothly with the retraction-side shock absorber.
Small-Parts Transfer
Transfers parts between stations with symmetrical ball-bearing guidance and controlled retraction deceleration over the 125 mm stroke.
FAQ
What is the difference between SB and SBF adjuster codes?
SB places shock absorbers at both ends of the stroke; SBF places a shock absorber only on the retraction (return) side. SBF is chosen when the return stroke needs controlled deceleration but the extension stroke does not, or where space on the extension end is limited.
How are allowable load and moment confirmed for this model?
Allowable load, moment, and kinetic energy are published as Wmax, Emax, and moment tables with deflection curves in the datasheet. We reference these published values to confirm suitability for your specific mounting and payload - contact us for sizing verification.
