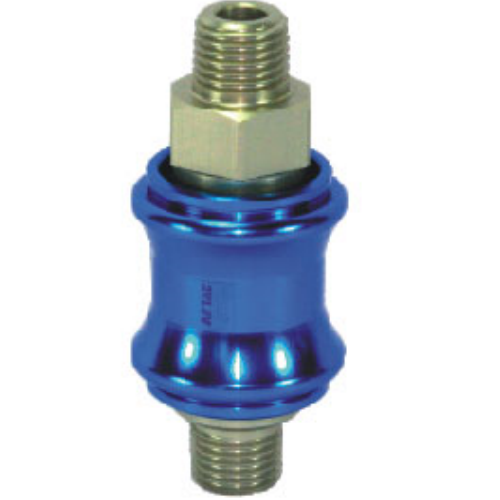

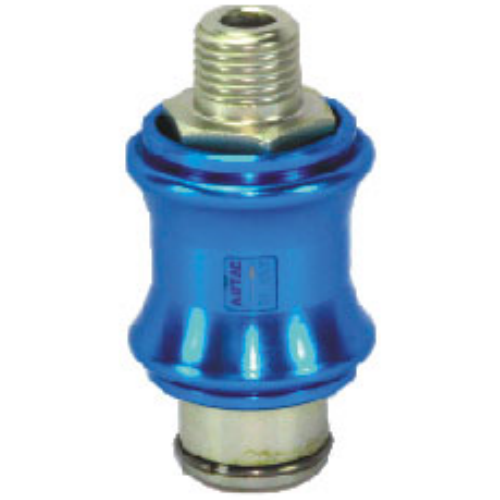

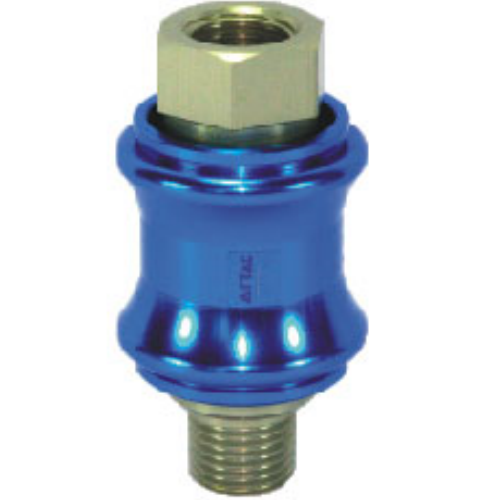

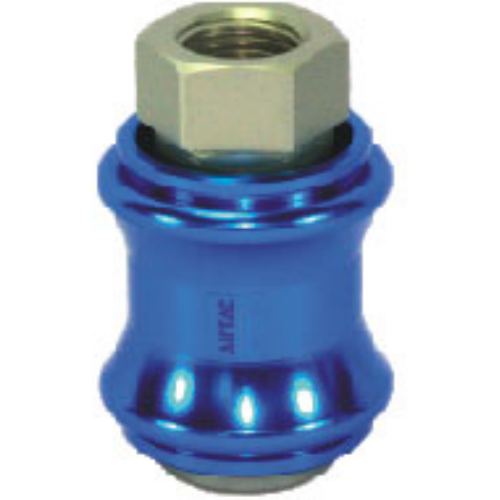

Airtac HSV Hand Slide Valve HSV20
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV20 Manual Slide Valve Technical Details
- Model: HSV20
- Type: 3-position (4-way) closed center manual slide valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Maximum flow rate: 850 L/min (ANR)
- Actuation type: Mechanical lever with detent positions
- Body material: Aluminum alloy (hard anodized)
- Seal material: NBR (nitrile) with reinforced PTFE wear pads
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 480g (1.06 lbs) ±2%
- Dimensions: 98mm(L) × 42mm(W) × 78mm(H)
- Port thread depth: 12mm (engagement length)
- Leakage rate: <0.1 Nml/min at 0.5 MPa
- Cyclic life: 1,000,000 operations (minimum)
Heavy-duty manual override valve featuring positive center position locking and tactile feedback. The HSV20's chrome-plated spool ensures smooth operation even in high particulate environments. Designed for systems requiring manual intervention without disconnecting pneumatic lines. Features dual O-ring seals and redundant dust wipers for extended maintenance intervals.
- Emergency override in automated production lines
- Maintenance bypass in hydraulic/pneumatic power units
- Manual mode switching in material handling systems
- Safety isolation during equipment troubleshooting
- Position locking in mobile construction machinery
Installation guidelines:
Mount with 20mm clearance above lever arc. Lubricate with ISO VG32-grade oil
before initial use. For vertical mounting, install exhaust port downward.
Critical note:
Do not exceed 1.0 MPa operating pressure. Avoid silicone-based lubricants
which may degrade NBR seals. Cycle valve fully 5 times after installation
to seat components.
| Property | Property Value |
|---|---|
| sku | HSV20 |
| Position | 3-Port 2-Position |
| Port Size | BSPT 3/4 |
