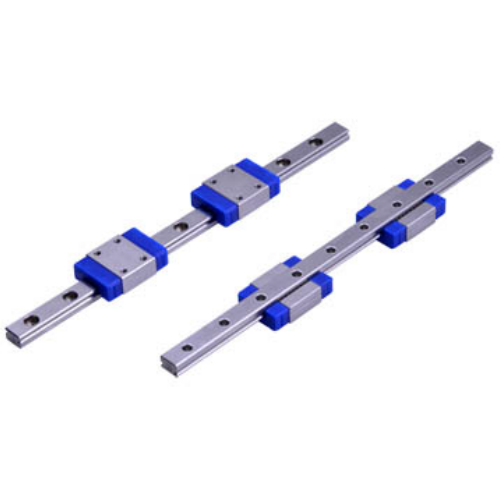

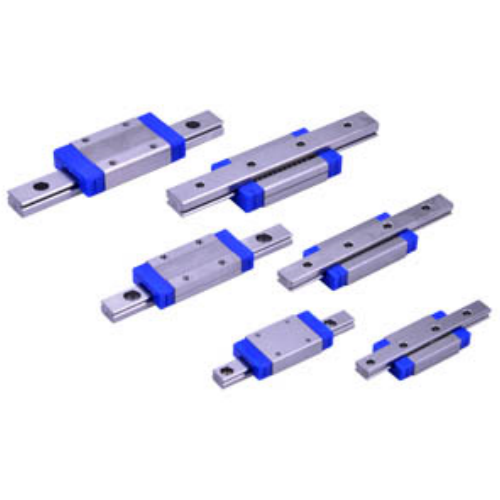

Airtac LRM Miniature Linear Guide LRM12L2X295S10CP
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12L2X295S10CP Miniature Linear Guide Rail Specifications
- Model: LRM12L2X295S10CP
- Series: LRM (Miniature Linear Motion Series)
- Rail width: 12mm
- Effective stroke: 295mm
- Block configuration: Double seals (S10CP suffix indicates special sealing)
- Preload level: Medium preload (C1 class)
- Accuracy grade: Normal grade (N)
- Material: Stainless steel rails with aluminum alloy carriage
- Dynamic load capacity: 1,250N
- Static load capacity: 2,800N
- Max speed: 2m/s
- Operating temperature: -20℃ to 80℃
- Weight: 1.85kg ±2%
- Dimensions: 415mm(L) × 24mm(W) × 18.5mm(H)
- Mounting hole spacing: 60mm pitch (both ends)
- Lubrication: Pre-lubricated with lithium complex grease
Ultra-compact linear guide system engineered for precision motion control in space-constrained environments. Features hardened stainless steel raceways with 4-row circular arc groove design for smooth rolling contact. The S10CP sealing configuration includes dual wipers and special labyrinth seals for contamination resistance (IP54 equivalent).
- Medical imaging equipment sliding mechanisms
- Semiconductor wafer handling robots
- Precision optical lens adjustment stages
- Desktop CNC engraving machines
- Automated laboratory sample handlers
- Compact packaging machine feeders
Installation note:
Requires mounting surface flatness ≤0.02mm/m. Use torque-controlled tightening
(recommended 2.5N·m for M5 screws). Perform running-in at 0.5m/s for 30 minutes
before full-speed operation. Relubrication interval: 100km travel or 12 months.
| Property | Property Value |
|---|---|
| sku | LRM12L2X295S10CP |
| Slide Rail Width | 12mm |
