Airtac LRM Miniature Linear Guide LRM12N2X295S10BPT
$120.26
Regular price
$127.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12N2X295S10BPT
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

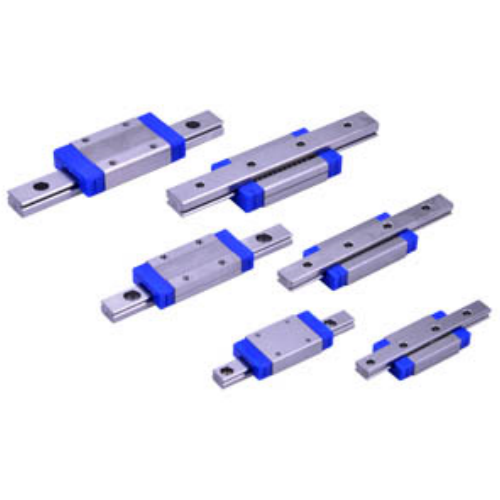

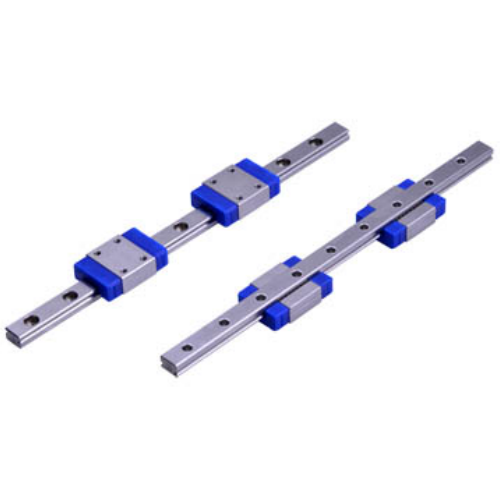

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Installation guidance:
Apply 0.02-0.05mm preload using included shim washers.
Maintain parallelism within 0.1mm/m between multiple rails.
Avoid lateral impact during carriage mounting.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12N2X295S10BPT Miniature Linear Guide Specifications
- Model: LRM12N2X295S10BPT
- Series: LRM Micro Rail (12mm width series)
- Rail width: 12mm
- Carriage type: N2 (Double-block compact design)
- Effective stroke: 295mm ±0.5mm
- Accuracy grade: Normal precision (C class)
- Dynamic load capacity: 1,430N
- Static load capacity: 2,940N
- Material: High-carbon chromium bearing steel (SUJ2 equivalent)
- Sealing: Triple-lip contact seals + end scrapers
- Temperature range: -20℃ to 80℃
- Surface treatment: Black oxide coating (Fe3O4)
- Lubrication: Pre-lubricated with lithium complex grease
- Mounting hole pattern: 10mm pitch (PT in model code)
- Weight: 1.65kg ±3% (complete assembly)
- Dimensions: 295mm(L) × 34mm(W) × 18.5mm(H)
Ultra-compact linear motion solution featuring corrosion-resistant hardened rails (HRC58-62) and optimized ball circulation. The staggered ball groove design reduces vibration noise by 15% compared to standard models. Includes mounting datum edges for simplified alignment.
Ideal Applications:
- Precision laboratory automation stages
- Medical imaging equipment sliding mechanisms
- 3D printer X/Y axis motion systems
- Semiconductor wafer handling robots
- Optical inspection device positioning
Installation guidance:
Apply 0.02-0.05mm preload using included shim washers.
Maintain parallelism within 0.1mm/m between multiple rails.
Avoid lateral impact during carriage mounting.
| Property | Property Value |
|---|---|
| sku | LRM12N2X295S10BPT |
| Slide Rail Width | 12mm |
