Airtac LRM Miniature Linear Guide LRM12N2X400S10AH
$118.61
Regular price
$126.11
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12N2X400S10AH
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

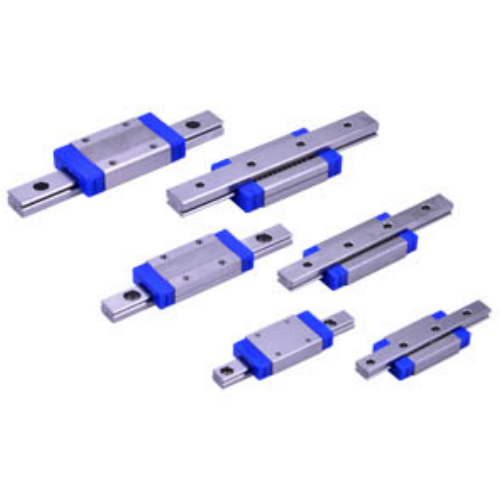

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Installation guidelines:
Use 0.02mm/m grade straightedge during mounting. Apply initial lubrication
every 100km travel or 6 months. Avoid lateral impact during operation -
maximum permissible moment: 1.8Nm.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM

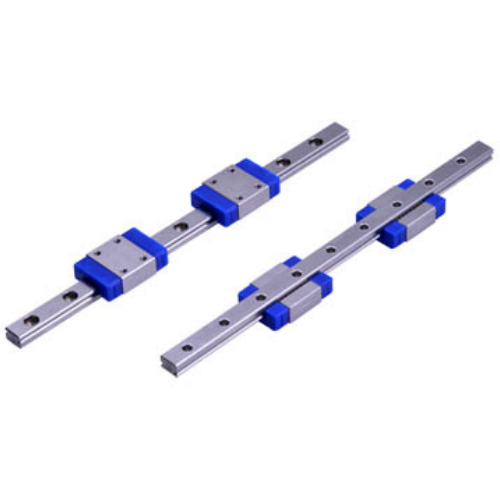

AirTAC LRM12N2X400S10AH Miniature Linear Guide Specifications
- Model: LRM12N2X400S10AH
- Series: LRM-N2 (Standard Precision)
- Rail width: 12mm
- Effective stroke: 400mm
- Block quantity: 2 units (pre-mounted)
- Dynamic load rating: 1.2kN
- Static load rating: 2.8kN
- Accuracy grade: C (Normal) ±50μm/300mm
- Seal type: Triple-lip rubber seals + metal scraper
- Material: Aluminum alloy rail with chrome-plated steel balls
- Weight: 1.23kg (complete assembly)
- Dimensions: 440mm(L) × 24mm(W) × 20mm(H)
- Mounting hole spacing: 30mm pitch (M4 threaded holes)
- Operating temperature: -20℃ to 80℃
- Lubrication: Pre-lubricated with VG32 grease
- Protection rating: IP54 (dust/water resistant)
Ultra-compact linear motion solution combining low-profile design with exceptional rigidity. Features staggered ball circuit pattern for smooth operation (≤35dB noise level) and anti-creep design for vertical applications. Includes alignment marks for simplified installation.
Ideal Applications:
- Precision laboratory automation stages
- Semiconductor wafer handling robots
- Medical imaging equipment sliding mechanisms
- High-speed 3D printer X/Y axis systems
- Optical lens positioning devices
Installation guidelines:
Use 0.02mm/m grade straightedge during mounting. Apply initial lubrication
every 100km travel or 6 months. Avoid lateral impact during operation -
maximum permissible moment: 1.8Nm.
| Property | Property Value |
|---|---|
| sku | LRM12N2X400S10AH |
| Slide Rail Width | 12mm |
