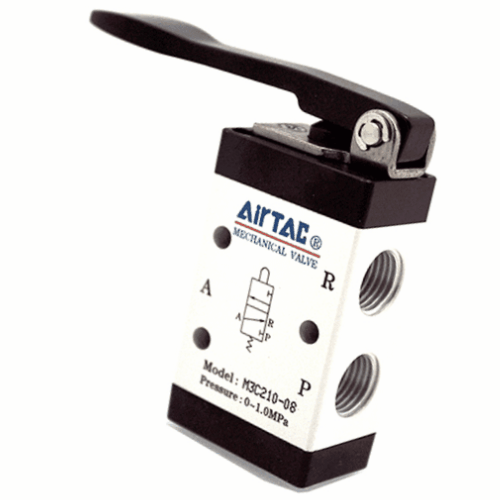

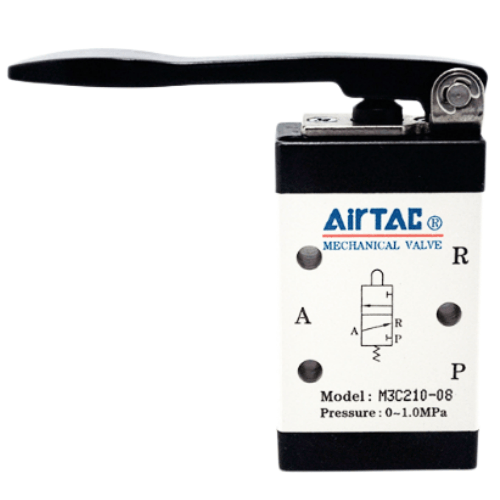

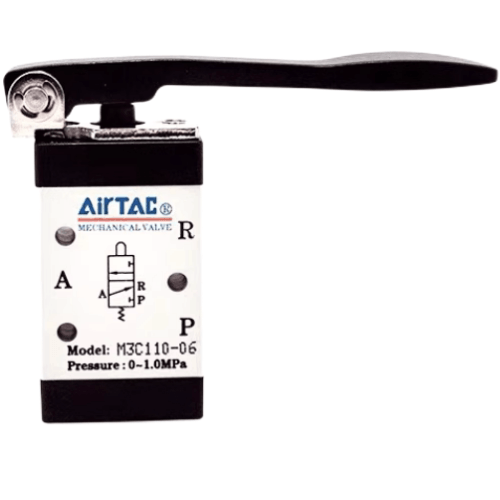

Airtac M3C Long Handle Type Mechanical Valve M3C21006
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
AirTAC M3C Long Handle Mechanical Valve M3C21006 Technical Details
- Model: M3C21006 (Long Handle Series)
- Valve type: 3/2-way normally closed (mechanical lever actuation)
- Port configuration: G1/8 (ISO228/1 standard)
- Thread specification: Rc1/8 (PT1/8) internal threads
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 750 L/min (ANR)
- Actuation force: ≤25N (lever operation)
- Body material: Aluminum alloy (anodized surface treatment)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Ambient temperature range: -10℃ to 60℃ (no freeze)
- Weight: 320g ±5g (including mounting accessories)
- Dimensions: 76mm(H) × 42mm(W) × 38mm(D)
- Mounting style: Direct piping or sub-base mounting (ISO 5599-1 compatible)
- Manual override: 180° rotating lever with position lock
Industrial-grade manual valve featuring ergonomic extended handle design for frequent operation. The hardened steel lever mechanism ensures 500,000+ cycles durability. Corrosion-resistant construction with IP54 splash protection, ideal for harsh environments. Includes built-in silencer (noise level ≤72dB).
- Emergency stop circuits in production lines
- Manual override for automated pneumatic systems
- Material handling equipment control
- Textile machinery air flow management
- Training simulators for industrial automation
- Mobile hydraulic/pneumatic hybrid systems
Installation guidelines:
Mount in accessible locations with ≥50mm clearance for lever operation.
Apply thread sealant (PTFE tape recommended) on port connections.
Perform monthly lever lubrication using silicone-based grease.
| Property | Property Value |
|---|---|
| sku | M3C21006 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
