Airtac M3D Short Lever Type Mechanical Valve M3D210-P13A
1. Exhaust ports integrated into the body facilitate silencer installation, reducing noise emissions and environmental contamination;
2. M3B, M3R, and M3L series feature external force-driven actuation mechanisms, compatible with position detection systems or limit switch applications;
3. M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series incorporate manual override mechanisms with multi-configuration actuator heads for versatile operational requirements;
4. Spool-type construction ensures consistent actuation force independent of working pressure (backpressure-resistant design), enhanced by internal ring seals for leak-tight performance and responsive directional switching;
5. Maintenance-free operation without lubrication requirements;
6. Multi-position mounting capability enables flexible installation configurations;
7. M3C, M3D, M3Y, M3R, and M3I series employ metal actuator heads for extended service life and enhanced operational reliability.
Category: Mechanical Valves, Brand: AIRTAC, Series: M3D

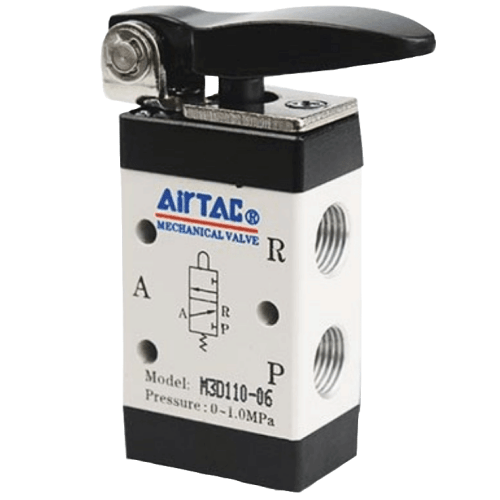

AirTAC M3D210-P13A Short Handle Mechanical Valve Specifications
- Model: M3D210-P13A
- Type: 3/2-way normally closed (mechanical lever-operated)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 850 L/min (Cv=1.2 at 0.5 MPa)
- Actuation force: ≤5 N (lever operation)
- Body material: Anodized aluminum alloy
- Seal material: High-grade NBR rubber
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Weight: 320±10g
- Dimensions: 78mm(L) × 42mm(W) × 63mm(H)
- Mounting: Direct piping or sub-base (ISO 15407-1 compliant)
- Protection rating: IP67 (dust/water resistant)
Compact mechanical valve with ergonomic short-stroke lever, optimized for manual override operations in confined spaces. Features dual-stage sealing for leak prevention and hardened stainless steel pivot pins for 500,000+ cycle durability. Requires 40μm filtered compressed air with oil mist lubrication recommended.
- Emergency stop systems in automated production lines
- Manual mode switching in packaging machinery
- Pneumatic fixture controls in CNC workstations
- Safety venting in semiconductor manufacturing equipment
- Mobile hydraulic/pneumatic hybrid systems
Installation note:
Lever axis must align with operator's natural hand position (±15° tolerance).
Apply thread sealant on port connections and torque to 12-15 N·m.
Avoid side-loading during lever operation.
