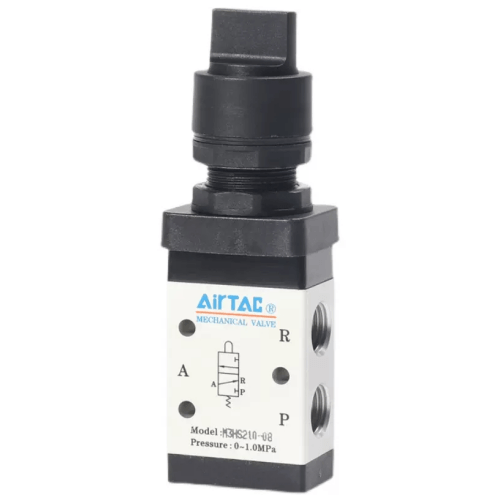

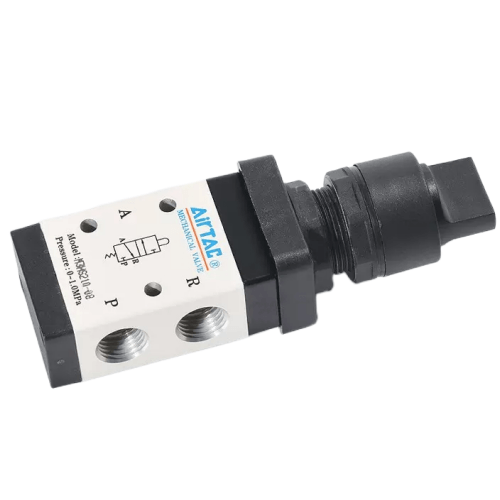

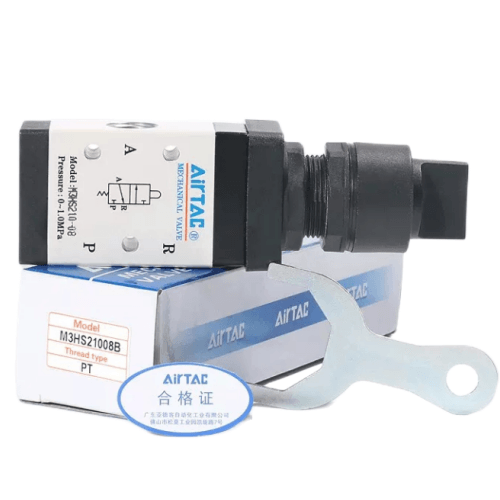

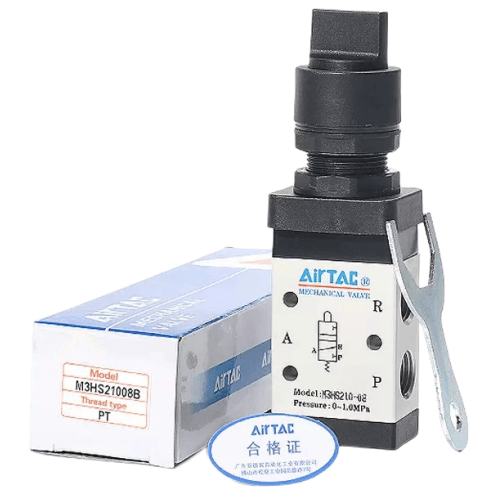

Airtac M3HS Selector Mechanical Valve M3HS11006G
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS Selection Type Mechanical Valve M3HS11006G Full Specifications
- Model: M3HS11006G (Factory code: 110006)
- Type: 3-position 5-way closed center (Mechanical lever operation)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Thread size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Maximum flow rate: 750 L/min (Cv=1.2)
- Actuation force: 3.5N±0.5N lever operation
- Weight: 315g±5g (including accessories)
- Dimensions: 80mm(L) × 35mm(W) × 65mm(H)
- Body material: PA66+30%GF (UL94 V-0 rated)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Response time: ≤50ms (at 0.5MPa)
- Lifespan: ≥3 million cycles (ISO 22858-1 tested)
- Protection rating: IP67 (dust/water resistant)
- Compliance: RoHS 2.0 & REACH SVHC
Manual override mechanical valve with center-block function, featuring dual exhaust ports for rapid cylinder movement control. The reinforced glass-fiber body withstands high mechanical stress in vibration environments. Integrated position indicator window with three-color (green/yellow/red) status visualization. Requires 25μm filtered dry air with ISO 8573-1:2010 Class 4.3.2 purity standards.
- Production line emergency stop systems
- Plastic injection molding machine clamp control
- Automated material handling equipment
- Textile machinery tension adjustment
- Semiconductor wafer transfer systems
- Hydraulic hybrid systems (pilot stage control)
Mounting guidelines:
Install with lever axis perpendicular to vibration sources.
Apply thread sealant only on male ports (PT/NPT).
For horizontal mounting, use support bracket AFF-12 (sold separately).
Critical note:
Do NOT use silicone-based lubricants - compatible only with
phosphate ester-based oils. Minimum 2mm clearance required
around exhaust ports for proper venting.
| Property | Property Value |
|---|---|
| sku | M3HS11006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
