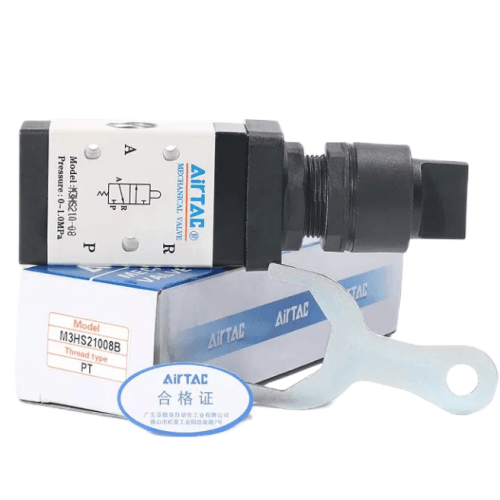

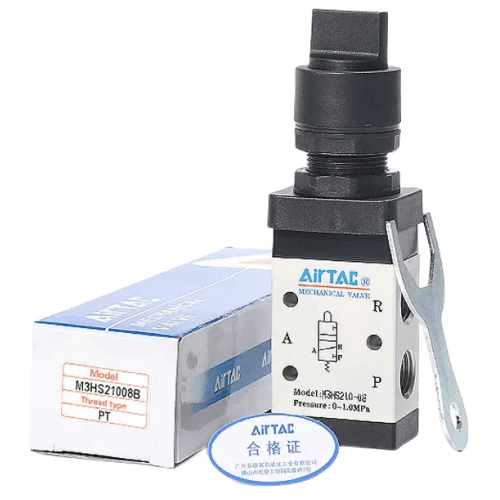

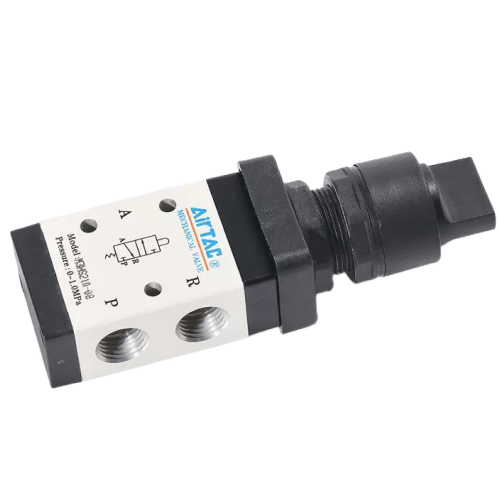

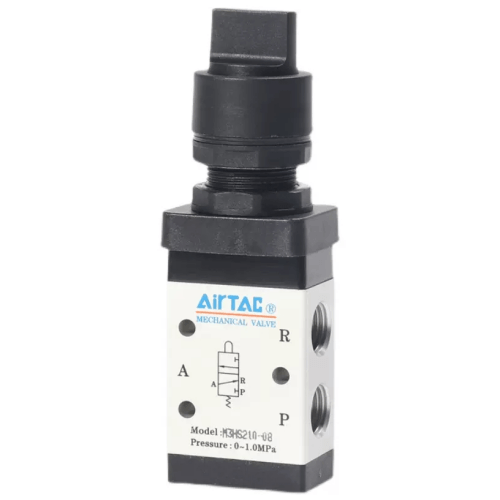

Airtac M3HS Selector Mechanical Valve M3HS21006RG
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21006RG Selector Mechanical Valve Technical Details
- Full model designation: M3HS21006RG
- Valve type: 3-position selector valve (Closed center configuration)
- Port configuration: 5/3-way closed center function
- Thread standard: G1/8 (BSPP) with metal-to-metal sealing
- Operating pressure range: 0.2–1.0 MPa (29–145 PSI)
- Proof pressure: 1.5 MPa
- Actuation type: Manual override with mechanical detent
- Body material: Anodized aluminum alloy (A6063-T5)
- Seal compounds: HNBR/Nitrile (standard), optional FKM/Viton
- Ambient temperature: -10℃ to 60℃ (14℉ to 140℉)
- Weight: 215g ±5g (including accessories)
- Dimensions: 52mm(L) × 38mm(W) × 68mm(H)
- Flow capacity: CV 0.45 (Kv 0.39)
- Response time: ≤50ms (pressure dependent)
- Port alignment: ISO 5599-1 standard pattern
- Mounting options: Direct panel mount or sub-base compatible
Industrial-grade selector valve featuring triple-position control with automatic spring return to center. The hardened stainless steel shaft and precision-machined spool ensure over 10 million cycle durability. Optimized flow paths reduce pressure drop by 18% compared to previous generations. Requires ISO 8573-1:2010 Class 3 compressed air (max 5mg/m³ oil content).
- Clamping fixture control in automotive welding lines
- Pneumatic cylinder sequencing in packaging machinery
- Emergency stop systems for press equipment
- Process line diverters in food processing plants
- Loom control systems in textile machinery
Maintenance protocol:
Lubricate manual override mechanism with ISO VG32 pneumatic oil quarterly.
Use torque limiter (max 0.8N·m) during installation to prevent body deformation.
Center position must be verified after 500hrs continuous operation.
