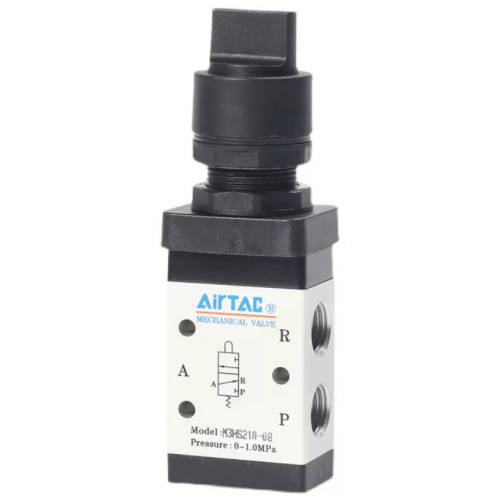

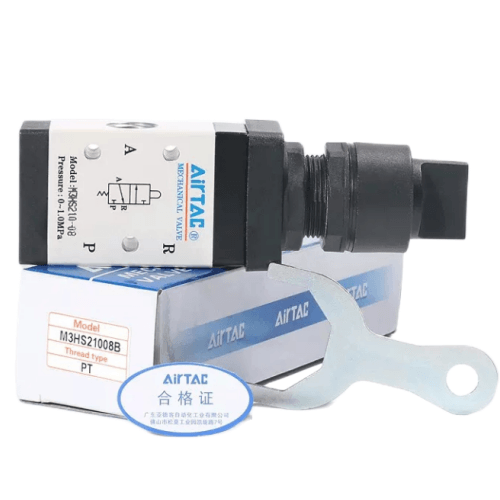

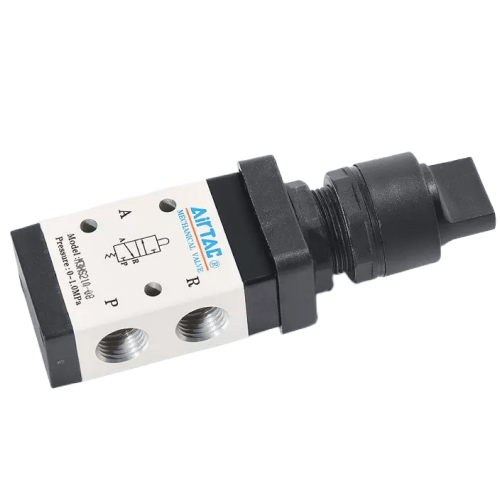

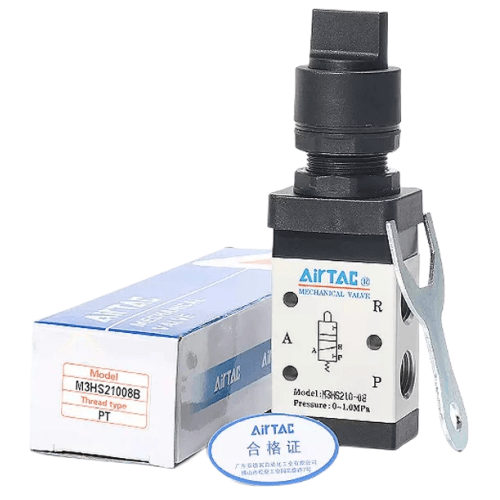

Airtac M3HS Selector Mechanical Valve M3HS21008B
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21008B Selector Mechanical Valve Technical Details
- Model: M3HS21008B
- Type: 3-position selector valve (Mechanical spring return)
- Port configuration: 5/3-way (3 ports, 5 flow paths)
- Port size: G1/8 (ISO228 standard)
- Operating pressure range: 0.1–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 20N±15% (manual override)
- Seal material: HNBR (Hydrogenated Nitrile) for enhanced oil resistance
- Temperature tolerance: -20℃ to 120℃ (with intermittent peak at 150℃)
- Body material: Aluminum alloy with hard anodized finish
- Weight: 220g ±5%
- Dimensions: 60mm(L) × 40mm(W) × 80mm(H)
- Mounting orientation: Any (360° multi-directional installation)
- Cycle life: ≥2 million operations
High-flow directional control valve with manual override capability, featuring a rugged aluminum body with corrosion-resistant coating. The optimized spool design ensures low operating torque (≤0.3N·m) while maintaining precise flow path switching. Requires ISO 8573-1:2010 Class 3.4.3 compressed air quality.
- Pneumatic cylinder sequencing in assembly lines
- Material handling system diverters
- Textile machinery tension control
- Automated welding equipment gas flow management
- Hydraulic system pilot controls (air-over-oil applications)
Maintenance protocol:
Lubricate pivot points every 2,000 operating hours using ISO VG32 turbine oil.
Avoid side-load forces exceeding 50N during manual operation. For optimal performance,
install upstream 5μm filter and maintain air dew point 10℃ below ambient temperature.
| Property | Property Value |
|---|---|
| sku | M3HS21008B |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
