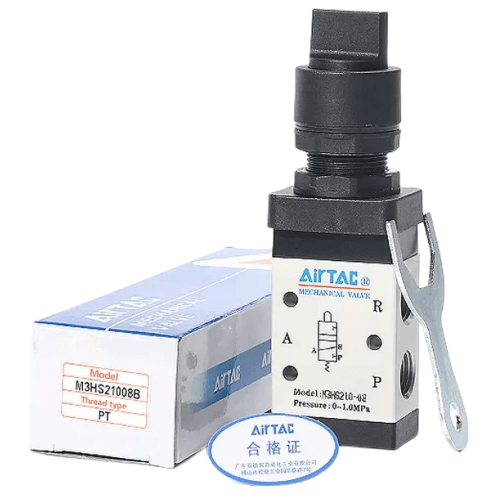

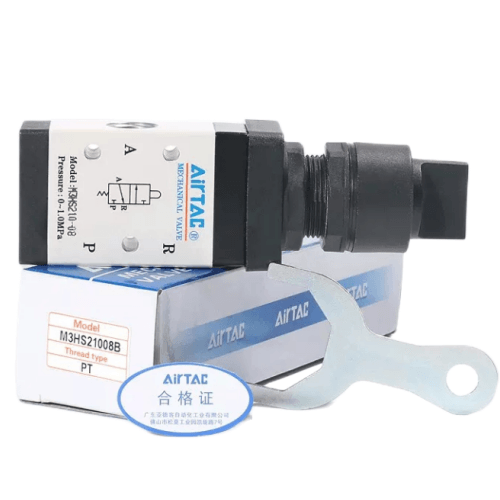

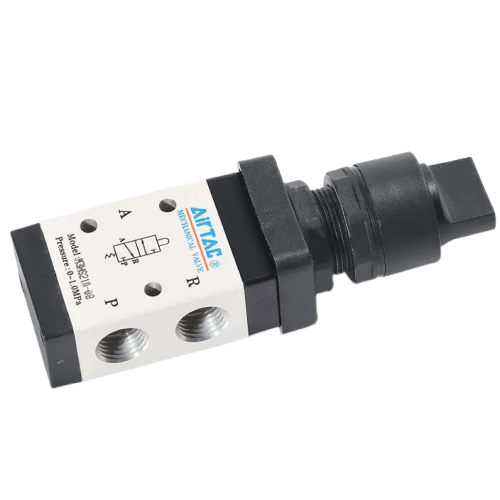

Airtac M3HS Selector Mechanical Valve M3HS21008BG
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21008BG Selector Mechanical Valve Technical Details
- Model: M3HS21008BG
- Type: 3-position selector valve (Mechanical spring return)
- Port configuration: 5 ports (P, A, B, EA, EB) / 3 positions
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.1–0.8 MPa
- Maximum flow rate: 750 L/min (ANR)
- Actuation force: 30N ±10% (manual override)
- Voltage compatibility: DC12V/24V or AC110V/220V (depending on solenoid option)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Temperature range: -20℃ to 80℃ (with dry air)
- Weight: 320g ±5% (including mounting accessories)
- Dimensions: 65mm(L) × 40mm(W) × 80mm(H)
- Response time: ≤20ms (electrical actuation)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥5 million operations
High-flow directional control valve with manual override capability, engineered for precision in pneumatic systems requiring mid-stroke position holding. Features dual exhaust ports (EA/EB) for rapid cylinder decompression and anti-vibration brass core structure. Requires ISO 8573-1:2010 Class 3.4.2 compressed air quality.
- Multi-position clamping fixtures in CNC machining centers
- Plastic injection molding machine safety interlocks
- Automated assembly line tooling changers
- Textile machinery tension control systems
- Cleanroom-compatible semiconductor handlers
Installation guidelines:
Mount horizontally with arrow direction matching airflow. Use shock-absorbing brackets
in high-vibration environments. Lubricate manual actuator monthly with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | M3HS21008BG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
