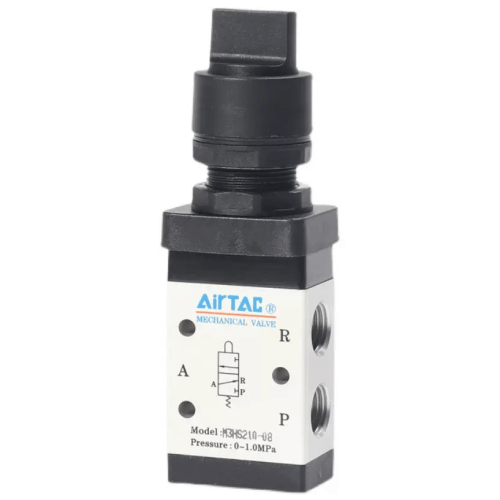

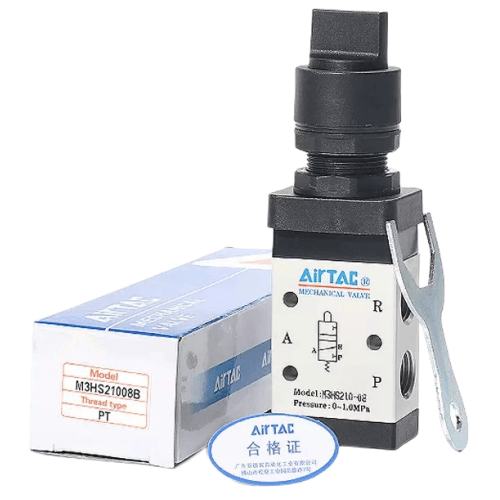

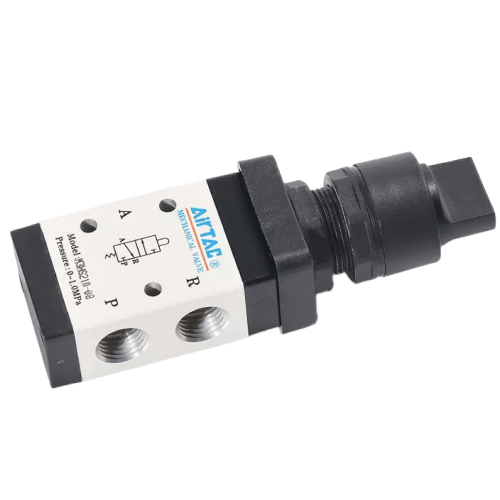

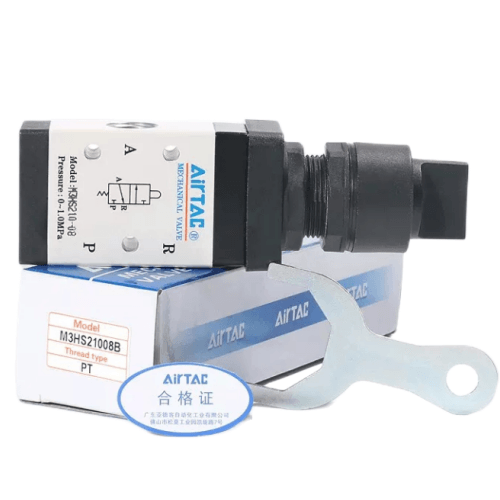

Airtac M3HS Selector Mechanical Valve M3HS21008G
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21008G Selector Mechanical Valve Technical Details
- Model: M3HS21008G
- Type: 3-position selector valve (Closed center, pilot-operated)
- Port configuration: 5 ports (P, A, B, EA, EB) / 3 positions
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.2–1.0 MPa (29–145 PSI)
- Maximum flow rate: 850 L/min (ANR)
- Actuation force: ≤5N manual operation
- Voltage compatibility: 12-24V DC (for optional solenoid pilot)
- Weight: 480g ±2% (including accessories)
- Dimensions: 58mm(W) × 45mm(H) × 122mm(L)
- Body material: Anodized aluminum alloy (AL6063-T5)
- Seal material: Heat-resistant NBR (up to 120℃ intermittent)
- Ambient temperature range: -10℃ to 60℃ (non-freezing)
- Response time: ≤0.3s (pilot-to-main valve actuation)
- Protection rating: IP67 (dust/water resistant)
- Mounting: ISO 15407-1 compliant sub-base
High-flow mechanical selector valve with manual override capability, featuring a robust aluminum body with anti-corrosion treatment. The closed-center design prevents unintended actuator movement during system shutdown. Optimized flow paths reduce pressure drop by 18% compared to previous generations. Compatible with ISO VG32 hydraulic oil when using optional seals.
- Machine tool clamping/unclamping systems
- Plastic injection molding machine sequence control
- Automated assembly line tool changers
- Test bench pressure regulation stations
- Food processing pneumatic circuits (NSF-H1 grease compatible version available)
Installation guidelines:
Mount with 10mm clearance above for manual operation access.
Use M5 mounting screws with 0.49-0.69N·m torque.
Lubricate pilot ports with ISO VG32 oil if using pneumatic pilot control.
| Property | Property Value |
|---|---|
| sku | M3HS21008G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
