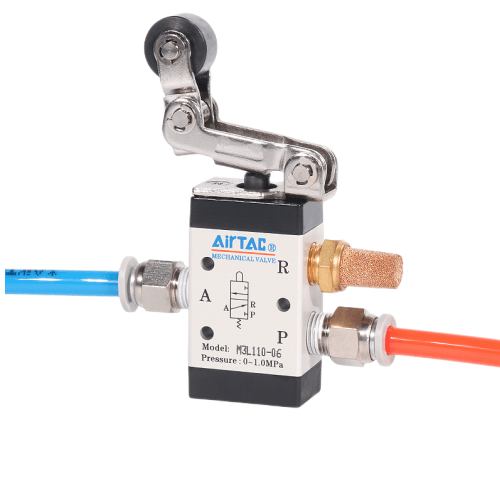

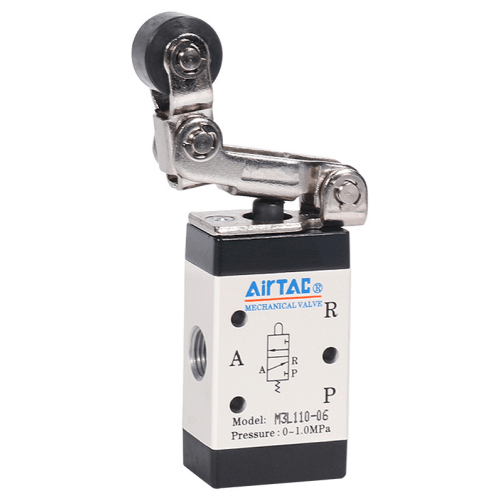

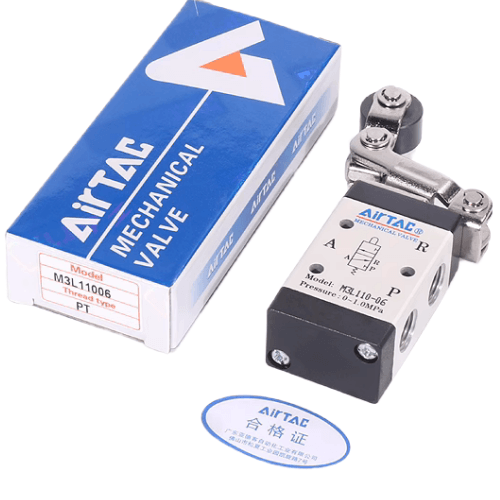

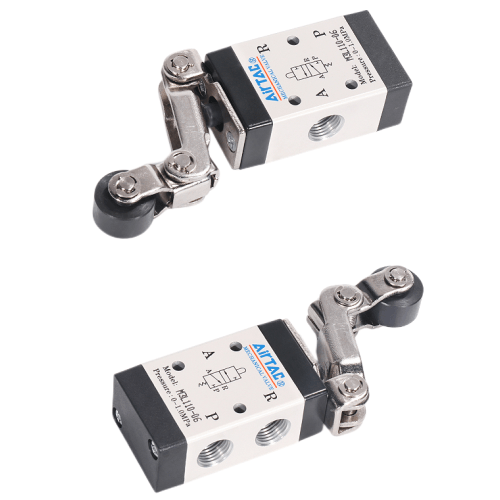

Airtac M3L One-way Roller Lever Type Mechanical Valve M3L05
$18.57
Regular price
$26.07
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3L05
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Exhaust ports integrated into valve body facilitate silencer installation for effective noise reduction and environmental protection;
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
Installation guidelines:
Align lever arm within 15° of actuation direction. Lubricate roller pivot
quarterly with silicone grease (ISO VG 10). Maintain 0.3-0.5mm gap between
actuator and trigger surface for optimal response.
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
AirTAC M3L05 Unidirectional Roller Lever Mechanical Valve Specifications
- Model: M3L05
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 equivalent)
- Operating pressure: 0.05–0.7 MPa (7-101.5 PSI)
- Operating force: 0.5-1.5N (lever actuation)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR
- Temperature range: -5℃ to 80℃ (23℉ to 176℉)
- Flow rate: 450 NL/min (ANR)
- Weight: 180g ±5g
- Dimensions: 53mm(L) × 34mm(W) × 40mm(H)
- Actuator stroke: 2.5mm ±0.3mm
- Repeat accuracy: ±0.1mm
- Protection rating: IP67
- Mounting: M5 screw or panel clip
Mechanically actuated valve with roller lever for reduced friction and precise position detection. Features anti-corrosion coating and wear-resistant roller bearing (100,000+ cycle rating). Optimized for both horizontal and vertical installation with dual mounting options.
Typical Applications:
- Conveyor belt object detection systems
- Cartesian robot end effector positioning
- Safety door interlocks in automated machinery
- Textile machine thread tension control
- Food packaging line product presence verification
Installation guidelines:
Align lever arm within 15° of actuation direction. Lubricate roller pivot
quarterly with silicone grease (ISO VG 10). Maintain 0.3-0.5mm gap between
actuator and trigger surface for optimal response.
Environmental requirements:
Use particle-free dry air (ISO 8573-1:2010 Class 2.4.2). Avoid direct
exposure to cutting fluids or chemical splashes. For washdown environments,
specify optional stainless steel version (M3L05-SS).
| Property | Property Value |
|---|---|
| sku | M3L05 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
