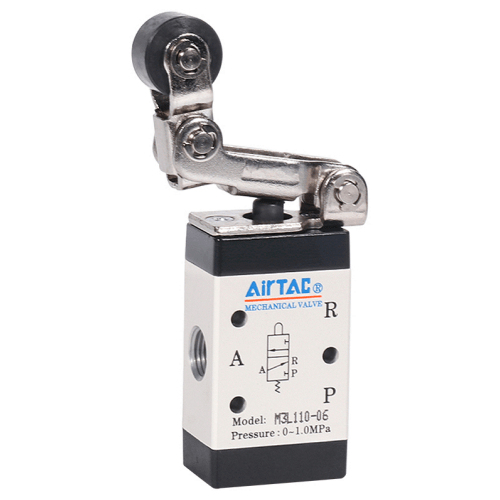

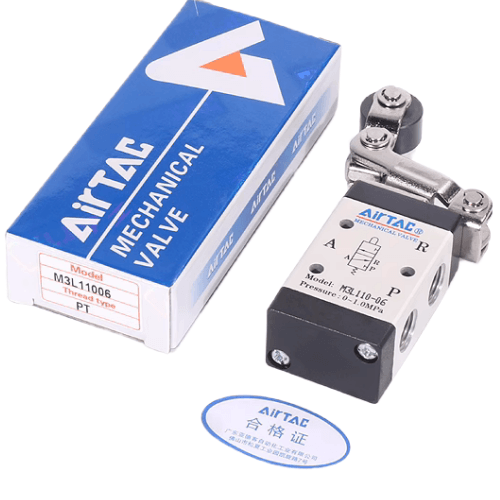

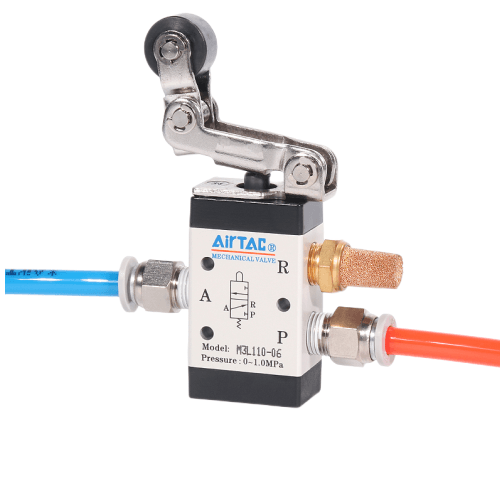

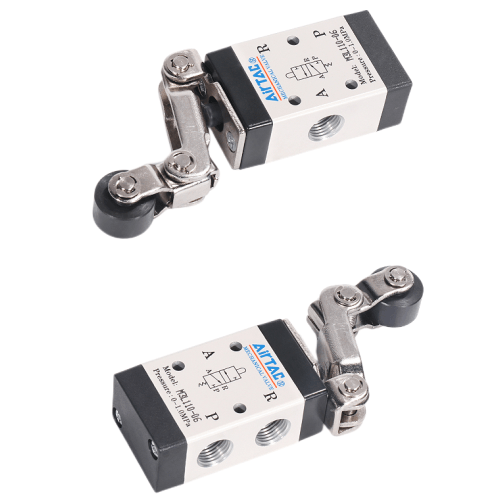

Airtac M3L One-way Roller Lever Type Mechanical Valve M3L11006
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
AirTAC M3L11006 Unidirectional Roller Lever Mechanical Valve Specifications
- Model: M3L11006
- Type: Single-acting roller lever valve (spring return)
- Port size: 1/4" BSPP (G1/4)
- Operating pressure: 0.05–0.7 MPa
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Operating temperature: -10℃ to 80℃
- Lever stroke: 3mm ±0.5mm
- Actuation force: 2.5N ±0.3N
- Mounting style: Panel mount with M5 threaded holes
- Weight: 250g ±5g
- Dimensions: 56mm(L) × 38mm(W) × 74mm(H)
- Cycle life: ≥1 million operations
- IP rating: IP67 (dust/water resistant)
- Compliance: RoHS compliant
Mechanical valve with precision roller lever mechanism designed for repeatable position detection in harsh environments. Features anti-vibration design with stainless steel return spring and wear-resistant POM roller. Optimized for both horizontal and vertical installation configurations.
- Conveyor system position verification
- Clamping fixture safety interlocks
- Packaging machine door safety switches
- Automated assembly line part presence detection
- Material handling equipment limit sensing
Installation note:
Align roller axis perpendicular to actuator movement direction.
Maintain 0.5-1mm overtravel allowance for optimal contact.
Lubricate roller bearing every 6 months in high-cycle applications.
Avoid lateral impacts on lever arm. Use protective guard (sold separately)
in environments with particulate contamination exceeding ISO 4406 18/16/13 class.
| Property | Property Value |
|---|---|
| sku | M3L11006 |
| Position | 3-Port 2-Position |
| Port Size | 1/8" |
