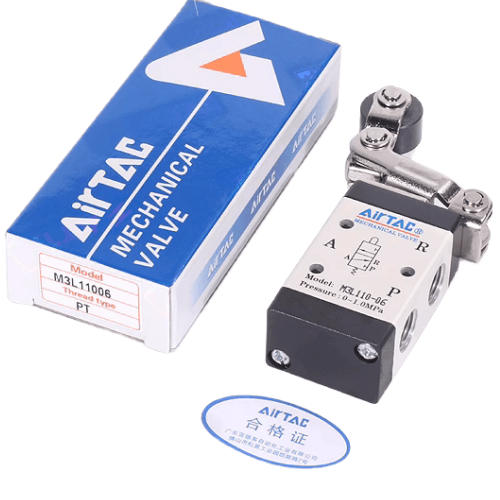

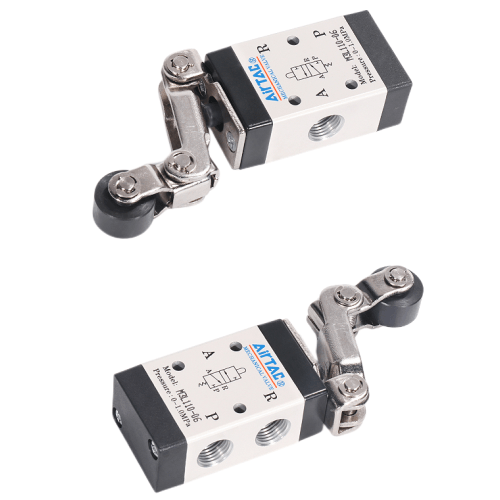

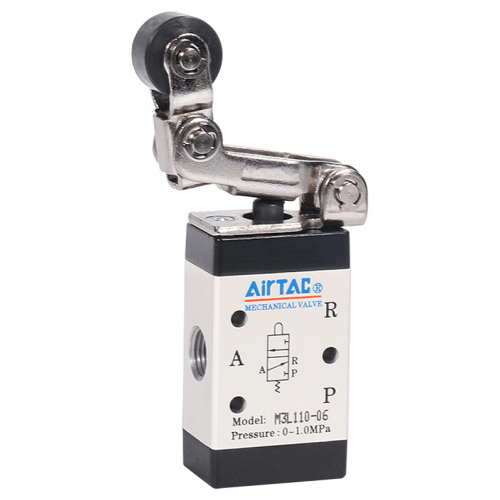

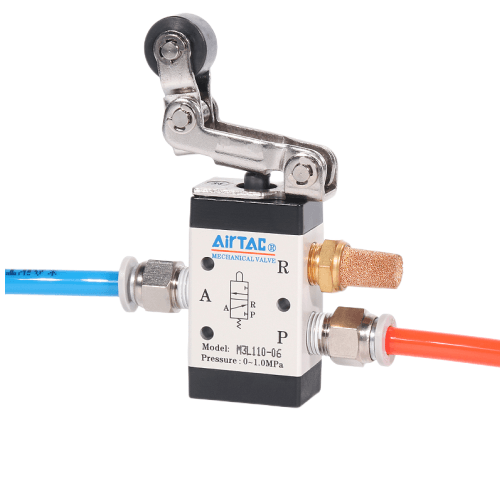

Airtac M3L One-way Roller Lever Type Mechanical Valve M3L21006
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
AirTAC M3L21006 Single Direction Roller Lever Mechanical Valve Specifications
- Model: M3L21006
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.8 MPa
- Operating force: 3.5N ±0.5N at lever tip
- Lever stroke: 2.5mm ±0.3mm
- Valve body material: Anodized aluminum alloy (black oxide finish)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Weight: 185g ±5g
- Dimensions: 38mm(W) × 24mm(D) × 54mm(H)
- Response time: ≤0.5ms (mechanical actuation)
- Flow rate: 750L/min (ANR) at 0.5MPa
- Protection rating: IP67 (dust/water resistant)
- Mounting options: Panel mount with M4 screws (2.5mm pitch)
Mechanically actuated valve featuring roller-lever design for smooth operation and reduced wear. The chrome-plated steel roller reduces friction during activation, with 200,000+ cycle durability. Optimized flow path design minimizes pressure drop. Includes built-in silencer for noise reduction (≤65dB).
- Safety door interlocks in automated production lines
- Position sensing in material handling systems
- Mechanical emergency stop triggers
- Packaging machine product detection systems
- Robotic arm end effector position feedback
Installation note:
Lever arm must align with actuation direction within ±5° tolerance.
Apply silicone-free lubricant (ISO VG32 grade) to roller bearings during maintenance.
Maximum side load on lever: 15N.
| Property | Property Value |
|---|---|
| sku | M3L21006 |
| Position | 3-Port 2-Position |
| Port Size | 1/8" |
