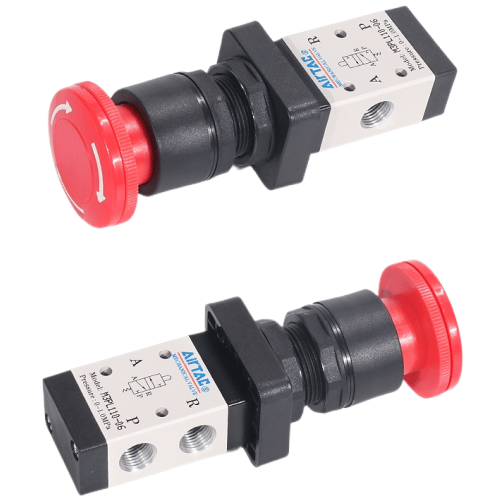

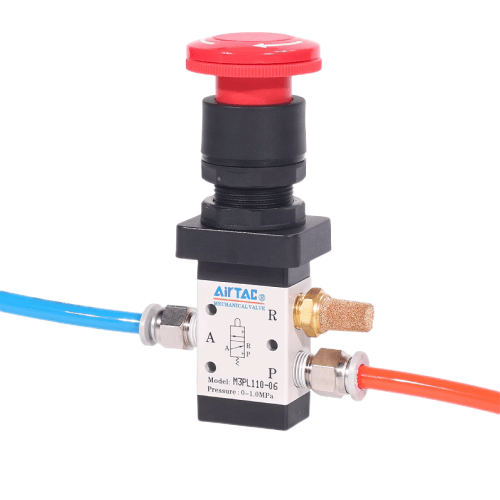

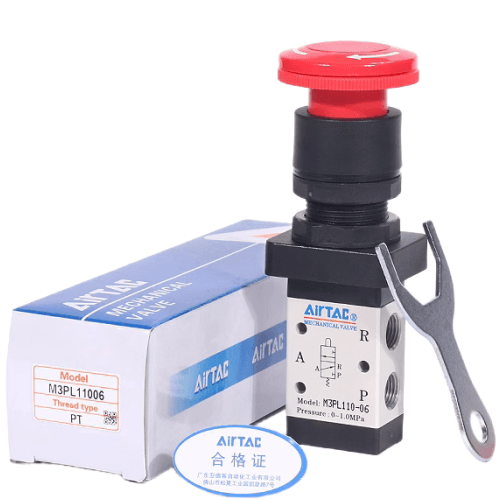

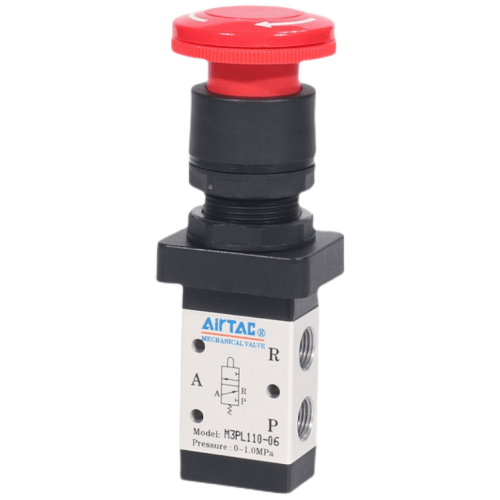

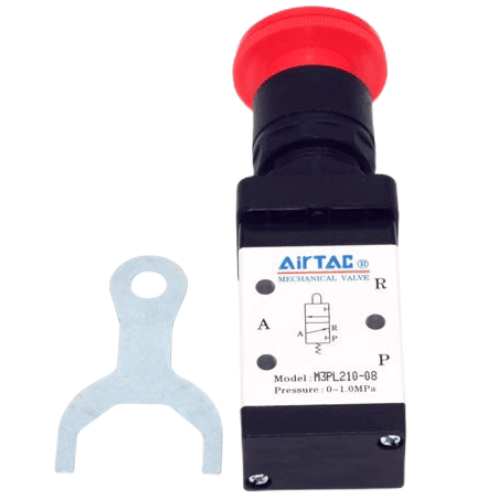

Airtac M3PL Detent Rotary Button Mechanical Valve M3PL11006G
2. M3B, M3R, and M3L series utilize externally-provided shifting force for valve actuation, enabling position sensing or limit switch applications.
3. Manually actuated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature multiple control head configurations optimized for diverse operating scenarios.
4. Spool-type construction with internal sealing ring ensures pressure-independent operation (backpressure-resistant), delivering reliable sealing performance and smooth directional switching.
5. Maintenance-free operation requiring no lubrication.
6. Multi-position mounting capability enables flexible installation configurations.
7. M3C, M3D, M3Y, M3R, and M3I series employ metal alloy control heads for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: M3PL Stationary Rotary Pushbutton Type
AirTAC M3PL11006G Parking Rotary Button Mechanical Valve Specifications
- Model: M3PL11006G
- Type: 3-position closed-center rotary mechanical valve (manual operation)
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.2–1.0 MPa
- Maximum flow rate: 850 L/min (ANR)
- Operating temperature: -5℃ to 60℃ (no freezing)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (oil-resistant)
- Actuation torque: ≤1.5 N·m
- Weight: 385g ±5g
- Dimensions: 58mm(W) × 58mm(H) × 86mm(L)
- Mounting pattern: ISO 15407-1 compliant
- Protection rating: IP67 (dust/water resistant)
Manual override valve with precise detent positioning, featuring a durable chrome-plated steel rotary knob with non-slip grooves. The three-position design allows for positive center shut-off and bidirectional flow control. Special shock-absorbing structure prevents accidental position changes during vibration.
- Emergency stop override in automated production lines
- Manual mode switching for hydraulic test benches
- Position locking in material handling equipment
- Maintenance bypass control for pneumatic circuits
- Robotic arm teaching mode activation
Installation guidelines:
Apply thread sealant (LOCTITE 5452 recommended) on port connections.
Ensure knob rotation plane has 120° clearance. Lubricate pivot point
with ISO VG32 hydraulic oil quarterly.
Critical note:
Do not exceed 300,000 actuation cycles without seal inspection.
Avoid side-load impacts on the control knob. Compatible with
air/water glycol mixtures only - not for pure hydraulic oil systems.
| Property | Property Value |
|---|---|
| sku | M3PL11006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
