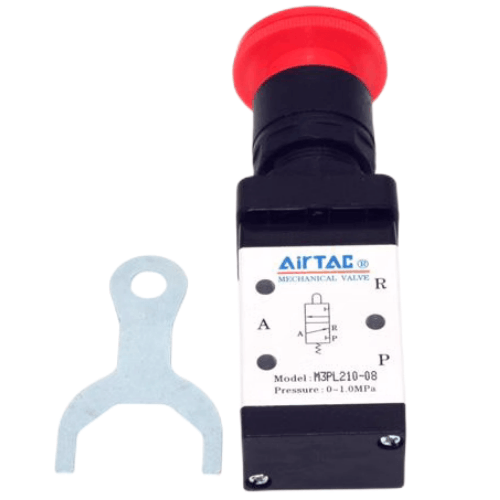

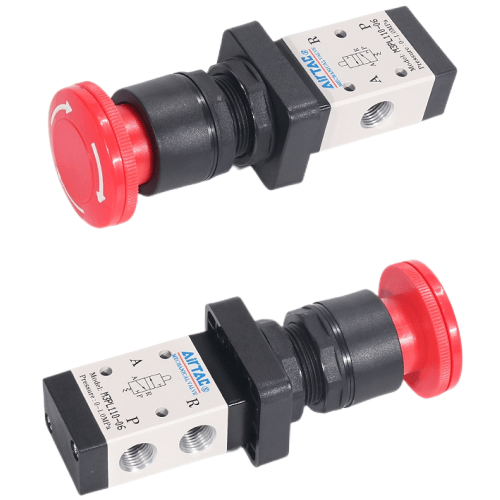

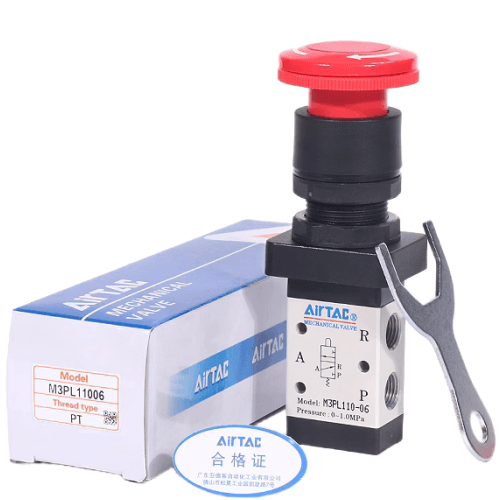

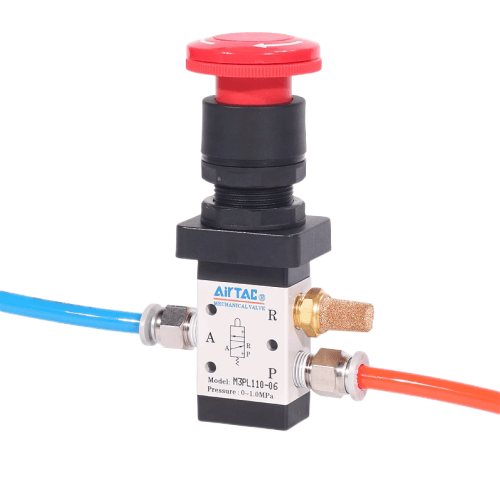

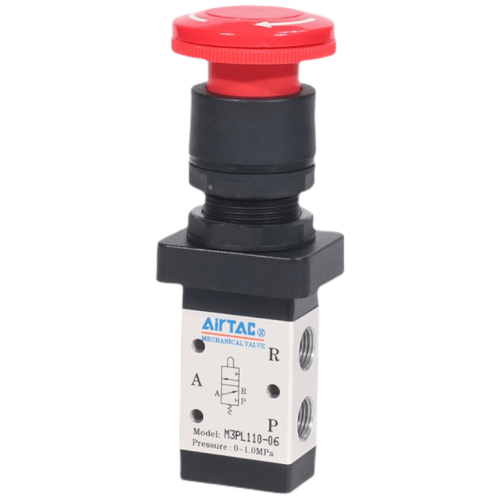

Airtac M3PL Detent Rotary Button Mechanical Valve M3PL21008
2. M3B, M3R, and M3L series utilize externally-provided shifting force for valve actuation, enabling position sensing or limit switch applications.
3. Manually actuated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature multiple control head configurations optimized for diverse operating scenarios.
4. Spool-type construction with internal sealing ring ensures pressure-independent operation (backpressure-resistant), delivering reliable sealing performance and smooth directional switching.
5. Maintenance-free operation requiring no lubrication.
6. Multi-position mounting capability enables flexible installation configurations.
7. M3C, M3D, M3Y, M3R, and M3I series employ metal alloy control heads for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: M3PL Stationary Rotary Pushbutton Type
AirTAC M3PL21008 Parking Rotary Button Mechanical Valve Specifications
- Model: M3PL21008
- Type: 2-position 5-way (parking rotary button with spring return)
- Port size: PT1/4 (G1/4 thread standard)
- Port configuration: 5 ports (P: pressure, A/B: outlets, R/S: exhausts)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Operating medium: Filtered compressed air (max 50μm particles)
- Ambient temperature: -5℃ to 70℃ (23°F to 158°F)
- Seal material: NBR (Nitrile rubber) standard
- Body material: Anodized aluminum alloy
- Manual override: 90° rotary operation with lockable position
- Actuation force: ≤3.5N (rotational torque ≤0.15Nm)
- Flow rate: 850 l/min (Cv=1.2) at 0.5MPa
- Weight: 320g ±5%
- Dimensions: 50mm(W) × 50mm(H) × 80mm(L)
- Mounting: Direct panel mounting with M4 screws (not included)
- Protection rating: IP65 (dust-tight & water jet resistant)
Industrial-grade manual override valve with positive locking mechanism, featuring a robust zinc alloy rotary knob with anti-slip grooves. The dual exhaust design minimizes backpressure during switching. Optimized flow paths reduce air turbulence by 30% compared to standard models. Requires lubrication-free operation and includes built-in silencers (R/S ports).
- Emergency stop systems in automated production lines
- Manual mode override in pneumatic clamping fixtures
- Dusty environment machinery (textile/woodworking equipment)
- Mobile hydraulic power units with manual control stations
- Safety interlocks in semiconductor manufacturing tools
Installation note:
Maintain horizontal mounting position for optimal drainage.
Apply thread sealant (PTFE tape) on port connections.
Perform monthly knob rotation tests under zero pressure to prevent seal adhesion.
| Property | Property Value |
|---|---|
| sku | M3PL21008 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
