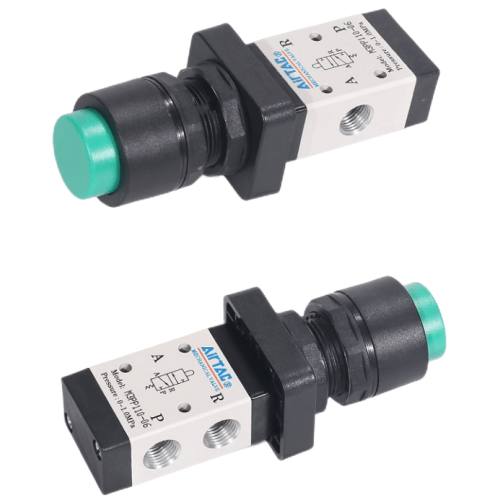

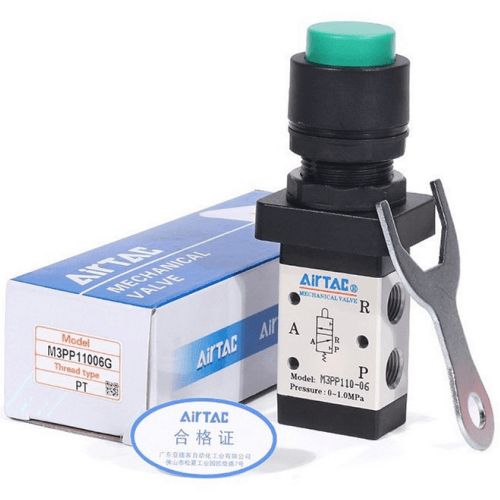

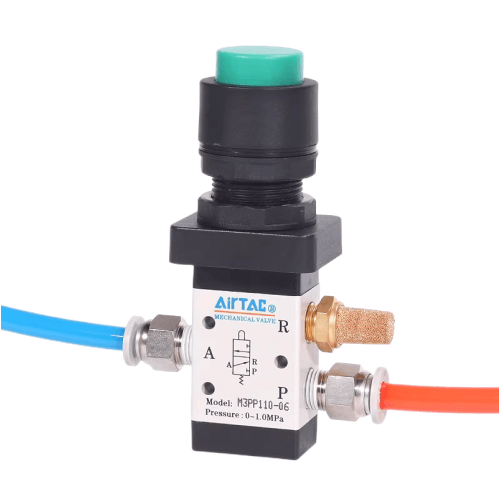

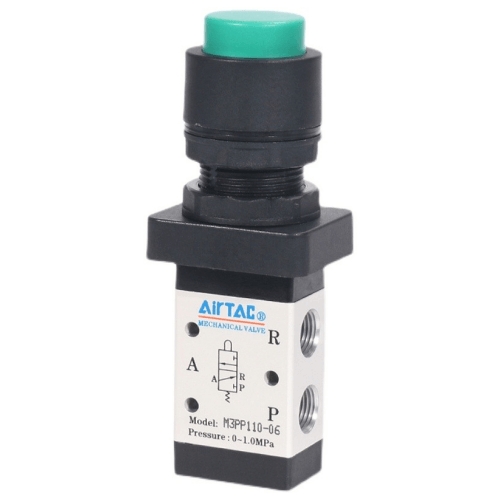

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP11006R
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP11006R Mushroom Head Push Button Mechanical Valve Specifications
- Model: M3PP11006R
- Type: 3/2-way normally closed (manual reset)
- Port size: 1/4" BSPP (G1/4)
- Operating pressure: 0.1–0.8 MPa
- Operation style: Maintained push-pull action with emergency stop function
- Mounting type: Panel mounting with Ø22mm cutout
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile) rubber
- Temperature range: -20℃ to 80℃
- Protection rating: IP65 (front side)/IP40 (rear side)
- Actuation force: 30-50N (manual operation)
- Weight: 280g ±5%
- Dimensions: 54mm(D) × 54mm(H) × 82mm(L)
- Reset mechanism: 45° rotation release
- Contact rating: 5A at 250VAC (gold-plated contacts)
Emergency stop valve with positive-locking mechanism featuring a bright red mushroom head for quick identification. The dual-color indicator (green/red) shows valve status, while the brass construction ensures corrosion resistance in harsh environments. Requires 40μm filtered air and compatible with ISO 13850 safety standards.
- Emergency stop circuits in production line machinery
- Safety interlocks for press machines
- Manual override systems in automated packaging equipment
- Training simulators for industrial control systems
- Maintenance lockout/tagout stations
Installation notes:
- Mount within 1m of operator position per ISO 13855 safety distance requirements
- Use M3PP-LB11006R lockable bracket for tamper-proof installations
- Apply thread sealant only on male threads (PT specifications)
- Test emergency function weekly with pull-twist-push reset procedure
| Property | Property Value |
|---|---|
| sku | M3PP11006R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
