Airtac M3R Roller Lever Type Mechanical Valve M3R05-P14A
$5.08
Regular price
$12.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3R05-P14A
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

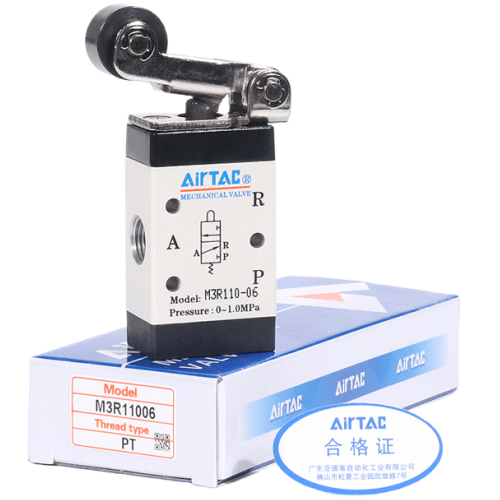

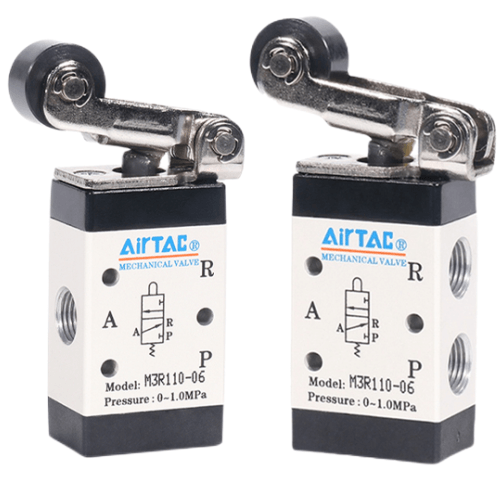

**AIRTRAC M3R Roller Lever Mechanical Valve Product Description:**
1. Exhaust ports integrated into the valve body facilitate silencer installation, effectively reducing noise emissions and environmental pollution.
2. The M3B, M3R, and M3L series utilize externally sourced actuation force for directional switching, enabling integration with position sensing or limit switch applications.
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature diversified actuator head configurations for optimized adaptability across operational conditions.
4. Spool-type architecture ensures consistent control force independent of working pressure (zero backpressure influence). Internal ring sealing mechanism guarantees leak-tight performance and responsive directional switching.
5. Lubrication-free operation eliminates routine maintenance requirements.
6. Multi-position mounting compatibility enhances installation flexibility and system integration efficiency.
7. Metal actuator heads in M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with reliable, stable performance under demanding conditions.
**Category:** Mechanical Valves | **Brand:** AIRTAC | **Series:** M3R Roller Lever Type
Installation Guidelines:
Mount horizontally with lever axis parallel to machine motion.
Maintain 0.5-1mm clearance between roller and actuator cam.
Lubricate pivot point with ISO VG32 hydraulic oil every 2,000 operating hours.
2. The M3B, M3R, and M3L series utilize externally sourced actuation force for directional switching, enabling integration with position sensing or limit switch applications.
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature diversified actuator head configurations for optimized adaptability across operational conditions.
4. Spool-type architecture ensures consistent control force independent of working pressure (zero backpressure influence). Internal ring sealing mechanism guarantees leak-tight performance and responsive directional switching.
5. Lubrication-free operation eliminates routine maintenance requirements.
6. Multi-position mounting compatibility enhances installation flexibility and system integration efficiency.
7. Metal actuator heads in M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with reliable, stable performance under demanding conditions.
**Category:** Mechanical Valves | **Brand:** AIRTAC | **Series:** M3R Roller Lever Type
AirTAC M3R Roller Lever Mechanical Valve M3R05-P14A Technical Details
- Model Code: M3R05-P14A
- Valve Type: 3/2-way normally closed (mechanical actuation)
- Actuation Method: Roller lever with 3mm roller diameter
- Port Thread: PT1/4 (G1/4 optional)
- Operating Pressure Range: 0.05–1.0 MPa
- Max Operating Frequency: 5 cycles/sec
- Operating Force: 3.5N (lever actuation force)
- Flow Capacity: 450 l/min (ANR)
- Seal Material: HNBR (Hydrogenated Nitrile) for enhanced oil resistance
- Temperature Tolerance: -10℃ to 80℃ (no freeze)
- Body Material: Aluminum alloy with hard anodized finish
- Weight: 285g ±5g
- Dimensions: 62mm(L) × 40mm(W) × 75mm(H) (excluding lever protrusion)
- Lever Travel: 4mm operating stroke
- Reset Method: Spring return
- Protection Class: IP67 (dustproof & waterproof)
Heavy-duty mechanical valve featuring a wear-resistant chromium-plated steel roller lever and anti-vibration lock nut. The dual-bearing lever mechanism ensures precise position retention and 500,000+ cycle durability. Includes built-in silencer (35dB noise reduction) and auto-drain function for humid environments.
Industrial Applications:
- Conveyor belt position detection systems
- Carton folding machine safety interlocks
- Robotic arm end effector position feedback
- Assembly line workpiece presence verification
- Packaging machine door safety switches
Installation Guidelines:
Mount horizontally with lever axis parallel to machine motion.
Maintain 0.5-1mm clearance between roller and actuator cam.
Lubricate pivot point with ISO VG32 hydraulic oil every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | M3R05-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
