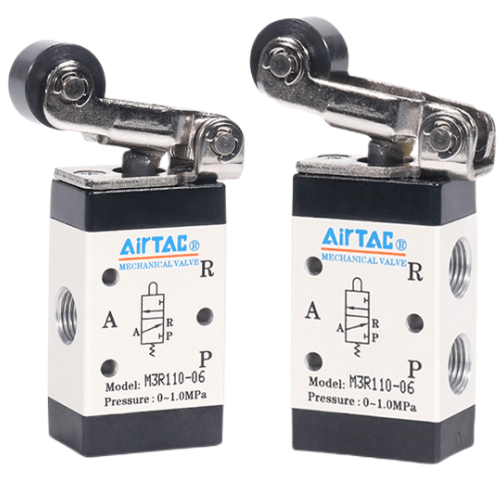

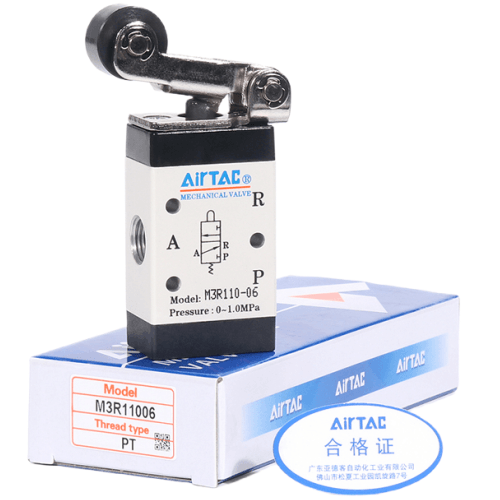

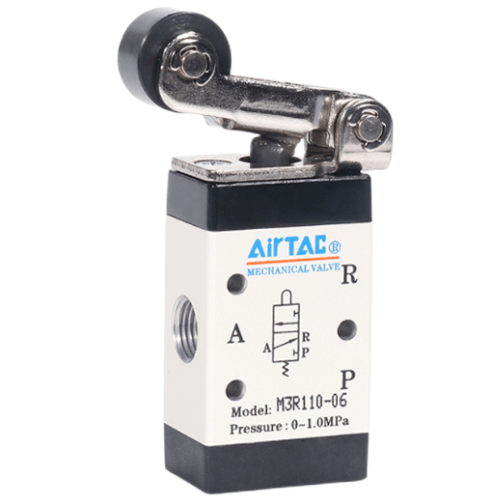

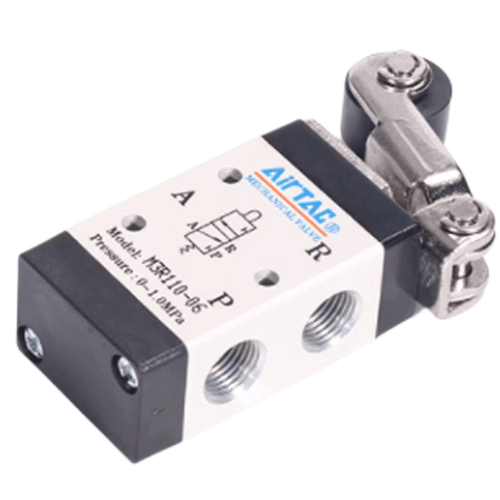

Airtac M3R Roller Lever Type Mechanical Valve M3R11006
2. The M3B, M3R, and M3L series utilize externally sourced actuation force for directional switching, enabling integration with position sensing or limit switch applications.
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature diversified actuator head configurations for optimized adaptability across operational conditions.
4. Spool-type architecture ensures consistent control force independent of working pressure (zero backpressure influence). Internal ring sealing mechanism guarantees leak-tight performance and responsive directional switching.
5. Lubrication-free operation eliminates routine maintenance requirements.
6. Multi-position mounting compatibility enhances installation flexibility and system integration efficiency.
7. Metal actuator heads in M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with reliable, stable performance under demanding conditions.
**Category:** Mechanical Valves | **Brand:** AIRTAC | **Series:** M3R Roller Lever Type
AirTAC M3R11006 Roller Lever Mechanical Valve Specifications
- Model: M3R11006
- Type: 3-way (3/2) roller lever operated mechanical valve
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.7 MPa
- Operating temperature: -5℃ to 60℃
- Body material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Roller material: Stainless steel SUS304
- Actuation force: 1.5N±0.3N
- Contact life: ≥1 million cycles
- Weight: 220g±5g
- Dimensions: 56mm(L) × 34mm(W) × 43mm(H)
- Mounting type: Direct piping or sub-base installation
- Response time: ≤0.1s
- IP rating: IP67 (dust/water resistant)
Mechanically actuated valve with precision roller lever mechanism, designed for position detection and pneumatic control in automated machinery. Features anti-corrosion treatment and wear-resistant roller bearing, optimized for high-cycle applications. Requires manual lever reset after actuation.
- Position sensing in conveyor systems
- Safety door interlocks in injection molding machines
- Workpiece detection in assembly lines
- Actuation control in packaging equipment
- Material handling system limit switches
Installation note:
Adjust lever angle (15°±2° recommended) before operation.
Lubricate roller pivot point every 200,000 cycles using ISO VG32 hydraulic oil.
Avoid lateral impact force exceeding 5N on lever arm.
| Property | Property Value |
|---|---|
| sku | M3R11006 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
