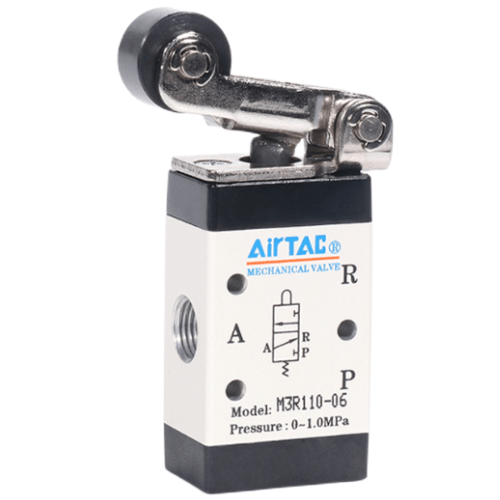

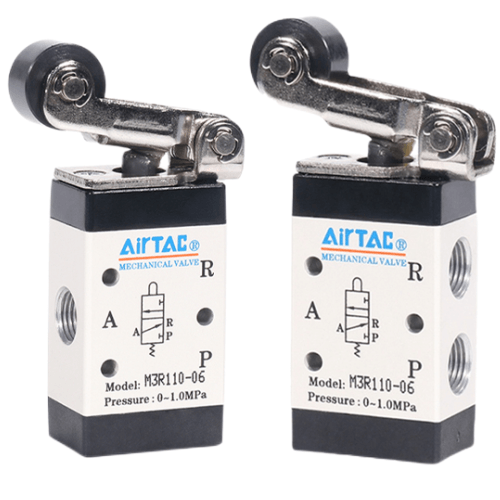

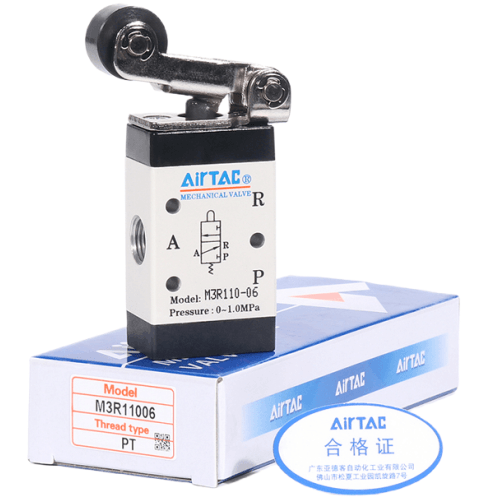

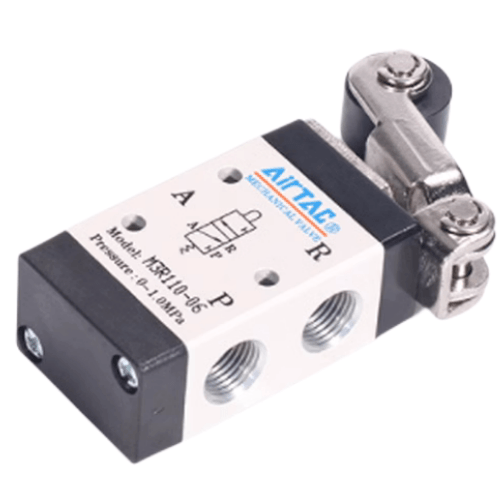

Airtac M3R Roller Lever Type Mechanical Valve M3R210-P14A
$5.80
Regular price
$13.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3R210-P14A
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
**AIRTRAC M3R Roller Lever Mechanical Valve Product Description:**
1. Exhaust ports integrated into the valve body facilitate silencer installation, effectively reducing noise emissions and environmental pollution.
2. The M3B, M3R, and M3L series utilize externally sourced actuation force for directional switching, enabling integration with position sensing or limit switch applications.
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature diversified actuator head configurations for optimized adaptability across operational conditions.
4. Spool-type architecture ensures consistent control force independent of working pressure (zero backpressure influence). Internal ring sealing mechanism guarantees leak-tight performance and responsive directional switching.
5. Lubrication-free operation eliminates routine maintenance requirements.
6. Multi-position mounting compatibility enhances installation flexibility and system integration efficiency.
7. Metal actuator heads in M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with reliable, stable performance under demanding conditions.
**Category:** Mechanical Valves | **Brand:** AIRTAC | **Series:** M3R Roller Lever Type
Installation note:
Mount lever arm parallel to machine motion direction. Apply silicone-free grease (Molykote EM-30L recommended)
to pivot points every 3 months. Avoid side-load forces exceeding 5N on lever.
Critical:
Do not use with corrosive gases or in environments with metal powder contamination.
For vertical mounting, install drain port downward.
2. The M3B, M3R, and M3L series utilize externally sourced actuation force for directional switching, enabling integration with position sensing or limit switch applications.
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature diversified actuator head configurations for optimized adaptability across operational conditions.
4. Spool-type architecture ensures consistent control force independent of working pressure (zero backpressure influence). Internal ring sealing mechanism guarantees leak-tight performance and responsive directional switching.
5. Lubrication-free operation eliminates routine maintenance requirements.
6. Multi-position mounting compatibility enhances installation flexibility and system integration efficiency.
7. Metal actuator heads in M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with reliable, stable performance under demanding conditions.
**Category:** Mechanical Valves | **Brand:** AIRTAC | **Series:** M3R Roller Lever Type
AirTAC M3R Roller Lever Mechanical Valve M3R210-P14A Specifications
- Model: M3R210-P14A
- Type: 3/2-way normally closed (manual reset)
- Operation method: Roller lever actuation (90° rotation)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Max flow rate: 850 NL/min (ANR)
- Actuation force: ≤1.5N at lever tip
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 215g ±5g (including fittings)
- Dimensions: 62mm(L) × 34mm(W) × 72mm(H)
- Mounting: Panel mounting with M4 screw holes (pitch 50mm)
- Lever stroke: 8mm ±0.5mm
- Repeat accuracy: ±0.2mm
- Durability: 1,000,000 cycles minimum
A heavy-duty mechanical valve featuring wear-resistant tungsten carbide roller and precision-machined stainless steel lever. The dual-spring return mechanism ensures reliable resetting even in high-vibration environments. Optimized flow path reduces air turbulence for stable operation in repetitive positioning systems. Requires ISO 8573-1:2010 Class 3 compressed air (max 5mg/m³ oil content).
Typical Applications:
- Pneumatic cylinder position confirmation in assembly lines
- Safety interlocks for stamping machine guards
- Material handling conveyor jam detection
- Packaging machine door position sensing
- Textile machinery thread breakage monitoring
Installation note:
Mount lever arm parallel to machine motion direction. Apply silicone-free grease (Molykote EM-30L recommended)
to pivot points every 3 months. Avoid side-load forces exceeding 5N on lever.
Critical:
Do not use with corrosive gases or in environments with metal powder contamination.
For vertical mounting, install drain port downward.
| Property | Property Value |
|---|---|
| sku | M3R210-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
