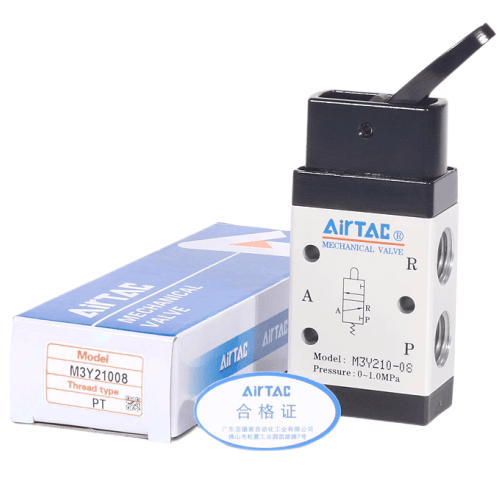

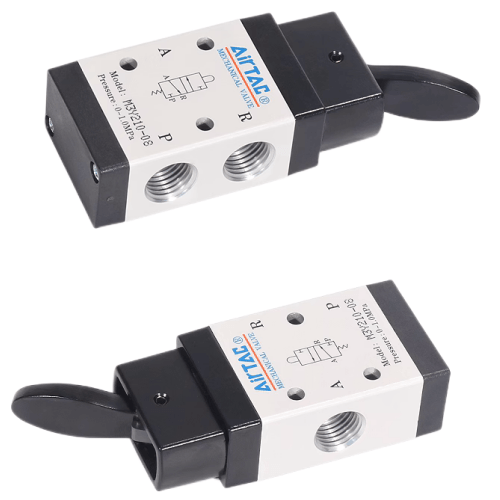

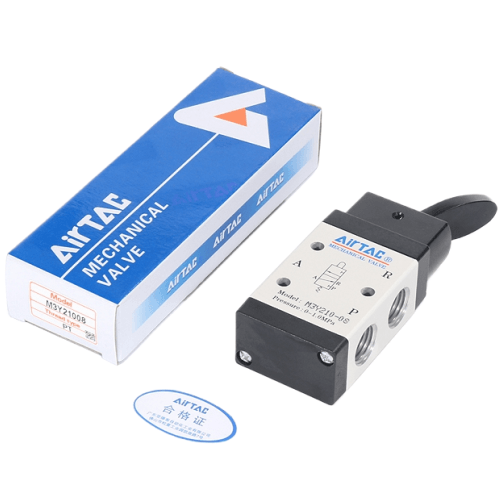

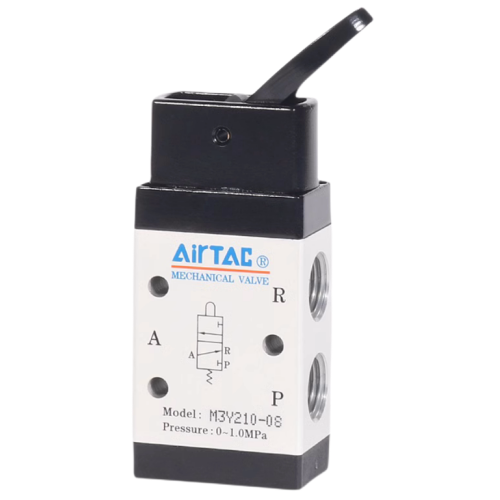

Airtac M3Y Rocker Arm Type Mechanical Valve M3Y11006G
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、M3B, M3R, and M3L series utilize external mechanism-driven actuation, enabling dual functionality for position sensing and stroke switching applications.
3、Manual-operated series (M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, M3HS) feature diversified actuator head configurations optimized for varied operational requirements.
4、Spool-type design with pressure-independent control force (zero back-pressure effect), incorporating internal ring sealing for reliable leak-proof performance and responsive directional switching.
5、Maintenance-free operation without lubrication requirements.
6、Multi-position mounting capability ensures flexible system integration and simplified installation.
7、Metal actuator construction in M3C, M3D, M3Y, M3R, and M3I series delivers enhanced lifespan and operational stability under demanding conditions.
Category: Mechanical Valves | Brand: AIRTAC | Series: M3Y Rocker Arm Type
AirTAC M3Y Lever-Operated Mechanical Valve M3Y11006G Technical Details
- Model: M3Y11006G
- Type: 3/2-way lever-operated mechanical valve (spring return)
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Actuation force: 2.5N max at lever tip
- Valve body material: Anodized aluminum alloy (black oxide finish)
- Seal material: Heat-resistant HNBR (-20℃ to 120℃)
- Flow capacity: 850 l/min (Cv=1.2 at 0.5MPa)
- Weight: 220g ±5g (including mounting hardware)
- Dimensions: 58mm(L) × 42mm(W) × 72mm(H)
- Port thread depth: 10mm (full engagement recommended)
- Operating cycles: ≥1,000,000 (under rated conditions)
- Protection rating: IP67 (dust-tight & temporary immersion)
Manual override valve with positive tactile feedback, featuring dual-bearing lever pivot for smooth operation. The chrome-plated lever arm includes anti-slip knurling and 120° actuation arc. Designed for systems requiring emergency manual control or frequent mode switching without electrical input. Compatible with ISO 15407-1 pneumatic systems.
- Production line emergency stop override systems
- Mobile hydraulic/pneumatic hybrid machinery
- Plastic injection molding machine safety gates
- Food processing equipment manual cycle initiation
- Railway brake test bench controls
Installation notes:
Mount in accessible locations with ≥50mm lever swing clearance.
Apply thread sealant to port connections (PTFE tape not recommended).
Lubricate pivot point with ISO VG32 hydraulic oil quarterly.
| Property | Property Value |
|---|---|
| sku | M3Y11006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
