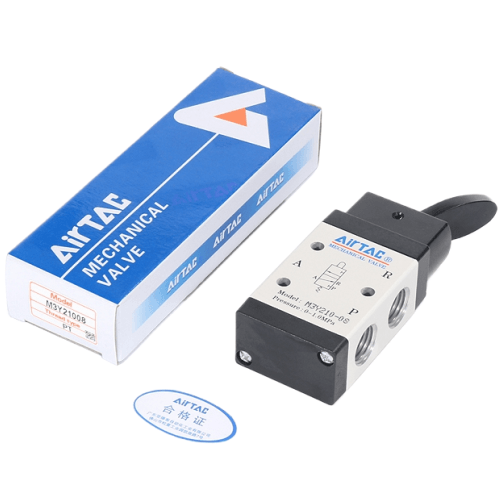

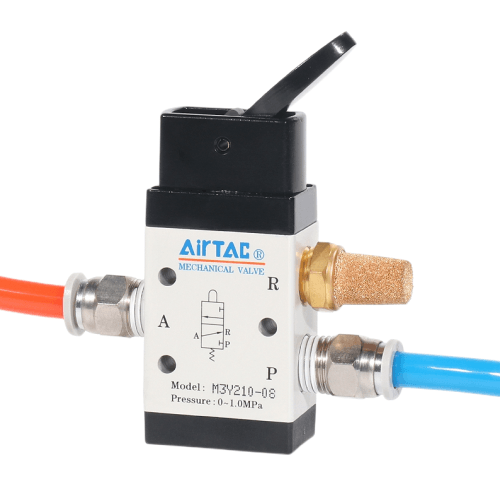

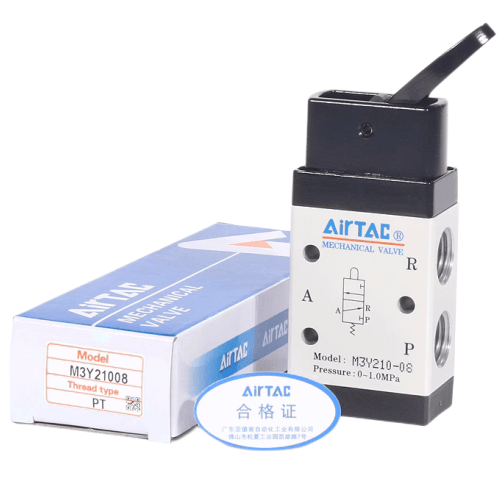

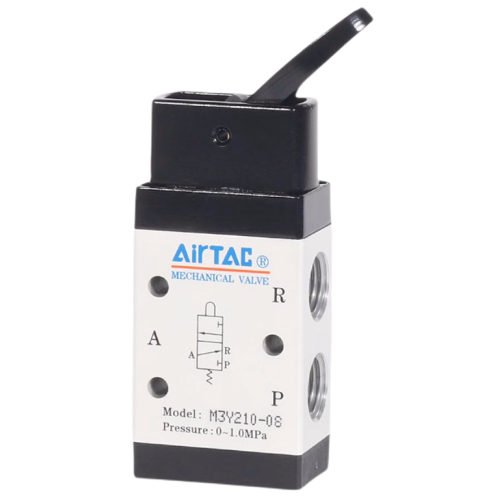

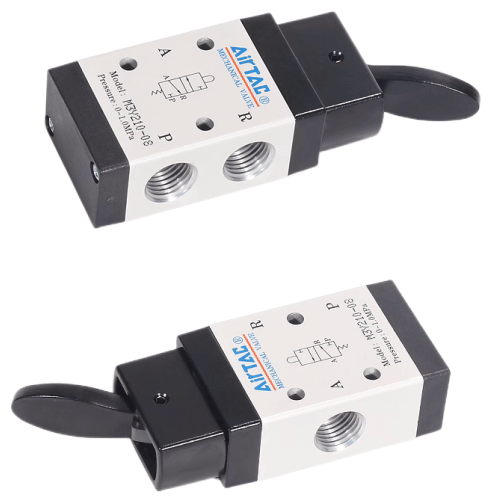

Airtac M3Y Rocker Arm Type Mechanical Valve M3Y21008
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、M3B, M3R, and M3L series utilize external mechanism-driven actuation, enabling dual functionality for position sensing and stroke switching applications.
3、Manual-operated series (M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, M3HS) feature diversified actuator head configurations optimized for varied operational requirements.
4、Spool-type design with pressure-independent control force (zero back-pressure effect), incorporating internal ring sealing for reliable leak-proof performance and responsive directional switching.
5、Maintenance-free operation without lubrication requirements.
6、Multi-position mounting capability ensures flexible system integration and simplified installation.
7、Metal actuator construction in M3C, M3D, M3Y, M3R, and M3I series delivers enhanced lifespan and operational stability under demanding conditions.
Category: Mechanical Valves | Brand: AIRTAC | Series: M3Y Rocker Arm Type
AirTAC M3Y21008 Lever-Operated Mechanical Valve Specifications
- Model: M3Y21008 (M3Y Series)
- Type: 3-position closed-center, lever-actuated mechanical valve
- Port configuration: 5 ports (P, A, B, EA, EB) / 3 positions
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.1–0.8 MPa
- Maximum flow rate: 750 L/min (ANR)
- Actuation force: ≤5N at lever tip
- Operating temperature: -5℃ to 70℃
- Seal material: NBR (Nitrile rubber)
- Body material: Aluminum alloy with hard anodizing
- Weight: 280g ±5g
- Dimensions: 72mm(L) × 42mm(W) × 98mm(H)
- Mounting type: Direct panel mounting with M4 screws
- Lever rotation angle: 30°±2° per position
- Protection rating: IP54 (standard), IP67 optional
Manual override valve with positive center position lock, designed for precise directional control in pneumatic systems requiring tactile feedback. Features wear-resistant pivot bearings and dual-stage sealing for leak-free operation. The ergonomic lever design allows single-finger operation with distinct position detents.
- Emergency stop override in automated production lines
- Manual mode switching for material handling robots
- Position control in pneumatic clamping fixtures
- Maintenance bypass in packaging machinery
- Manual override for CNC machine tool pneumatics
Installation note:
Lubricate pivot points with ISO VG32 hydraulic oil during maintenance.
Ensure lever clearance ≥15mm from adjacent components. For vertical mounting,
orient exhaust ports downward to prevent debris accumulation.
- Requires filtered air (≤40μm particles)
- Maximum cycling frequency: 1Hz continuous operation
- Do not use silicone-based lubricants (causes seal swelling)
| Property | Property Value |
|---|---|
| sku | M3Y21008 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
