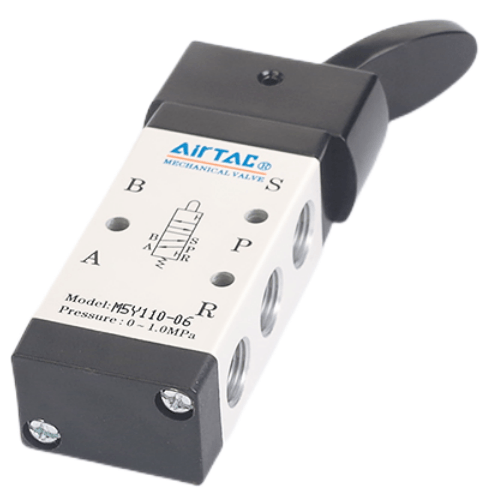

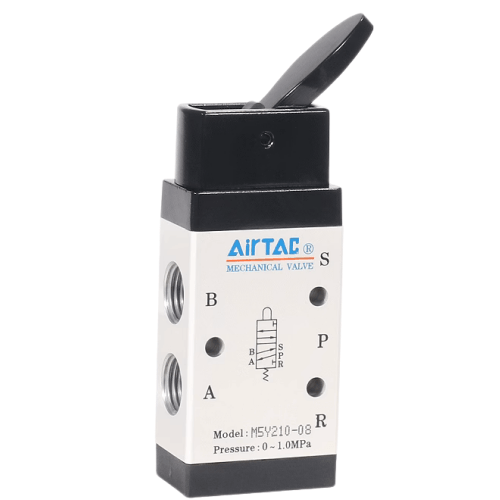

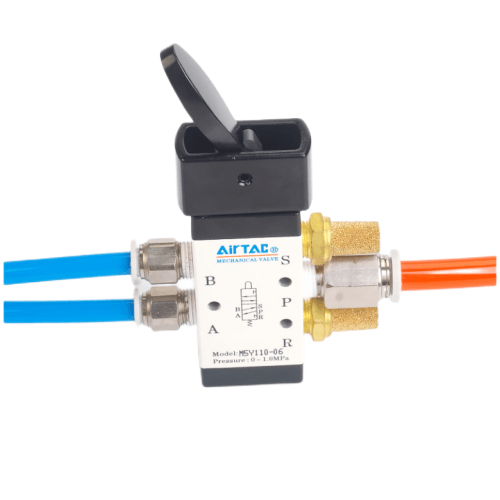

Airtac M5Y Rocker Type Mechanical Valve M5Y21008
2. M5B/M5R/M5L series utilize externally supplied actuation force for switching, enabling position detection or travel switch applications.
3. M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual operation with diversified actuator configurations, optimized for diverse operating conditions.
4. Spool-type structure ensures consistent control force independent of working pressure (zero backpressure effect). Internal sealing design guarantees superior leak-tightness and responsive directional switching.
5. Oil-free lubrication system eliminates maintenance requirements.
6. Multiple mounting orientations enhance installation flexibility and operational convenience.
7. Metal actuators in M5C/M5D/M5Y/M5R/M5L series ensure extended service life with reinforced reliability and stability.
Category: Mechanical Valves | Brand: Airtac | Series: M5Y
AirTAC M5Y21008 Lever-Operated Mechanical Valve Specifications
- Model: M5Y21008
- Type: 3-position (Lever Return to Center) / 5-port
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Operating force: ≤50N lever actuation
- Flow capacity: 750 L/min (ANR)
- Weight: 350g ±5%
- Dimensions: 65mm(L) × 42mm(W) × 28mm(H)
- Body material: Die-cast aluminum alloy (hard anodized)
- Seal material: HNBR (Heat-resistant Nitrile)
- Temperature range: -10℃ to 80℃ (with silicone seals optional for -20℃ to 120℃)
- Port thread depth: 12mm (minimum engagement 9mm)
- Actuation angle: 25°±2° lever rotation
- Lever life: ≥500,000 cycles
- Mounting options: Panel mount with M5 screws (included)
Manual override valve with tactile lever feedback, featuring symmetrical flow paths for bidirectional control. The hardened steel pivot mechanism ensures smooth operation even under vibration. Includes built-in exhaust mufflers and dust-resistant stem bearings. Compatible with ISO 15407-1 standards.
- Emergency stop override in automated production lines
- Manual mode switching for packaging machinery jigs
- Material handling equipment position lock
- Textile machine tension adjustment systems
- Mobile hydraulic platform safety controls
Installation note:
Apply thread sealant only on male ports (not NPT threads).
Lubricate lever pivot quarterly with ISO VG32 hydraulic oil.
Maximum side load on lever: 15N perpendicular to actuation plane.
