Airtac MAC Stainless Steel Mini Air Cylinder MAC40X25SCA
$55.12
Regular price
$62.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MAC40X25SCA
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

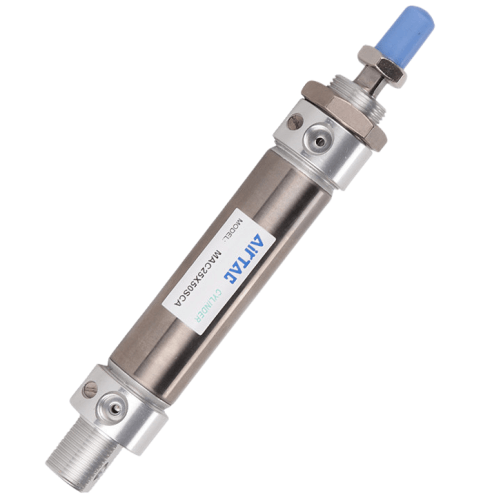

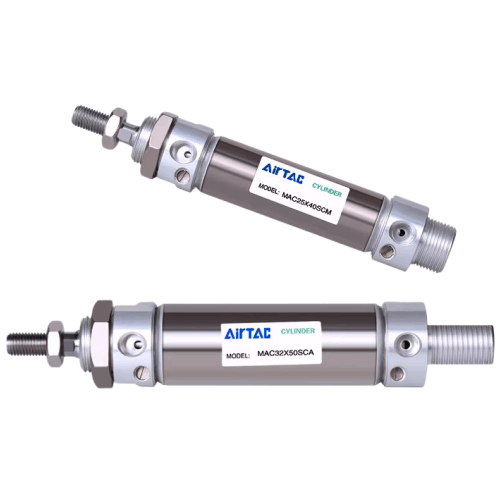

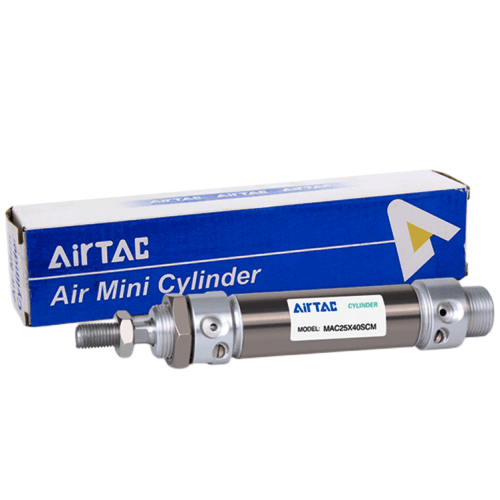

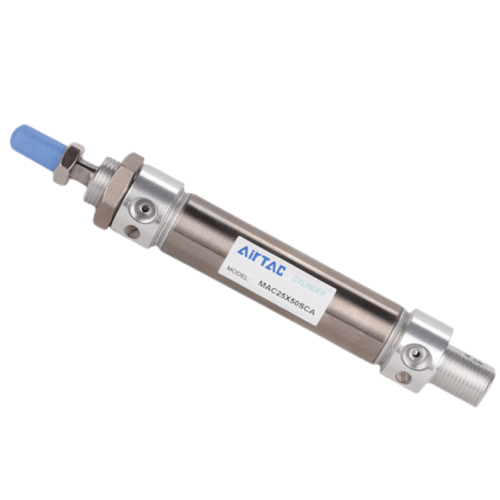

MAC Stainless Steel Miniature Cylinder
1. Manufactured in compliance with AirTAC corporate standards;
2. Features custom bidirectional sealing profile with compact dimensions and integrated oil reservoir design for enhanced piston lubrication;
3. Equipped with fixed cushioning pads on both end caps to mitigate directional reversal impact;
4. Multiple rear cover configurations ensure versatile mounting flexibility;
5. Stainless steel barrel and end caps assembled through combined riveting and encapsulation process for robust connection;
6. Precision-engineered from high-grade stainless steel tubing offering exceptional corrosion resistance and structural integrity;
7. Comprehensive selection of cylinder specifications and mounting accessories available for customized applications;
8. Full-range magnetic version standard across series.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MAC
Operational guidance:
For maximum service life, maintain 0.3-0.6 MPa operating pressure and lubricate with ISO VG32 turbine oil.
Avoid side load exceeding 15N·m. Installation torque: 12-15N·m for mounting bolts.
1. Manufactured in compliance with AirTAC corporate standards;
2. Features custom bidirectional sealing profile with compact dimensions and integrated oil reservoir design for enhanced piston lubrication;
3. Equipped with fixed cushioning pads on both end caps to mitigate directional reversal impact;
4. Multiple rear cover configurations ensure versatile mounting flexibility;
5. Stainless steel barrel and end caps assembled through combined riveting and encapsulation process for robust connection;
6. Precision-engineered from high-grade stainless steel tubing offering exceptional corrosion resistance and structural integrity;
7. Comprehensive selection of cylinder specifications and mounting accessories available for customized applications;
8. Full-range magnetic version standard across series.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MAC
AirTAC MAC40X25SCA Stainless Steel Miniature Cylinder Specifications
- Model: MAC40X25SCA
- Bore size: 40mm
- Stroke: 25mm (customizable 10-300mm)
- Construction material: SUS304 stainless steel
- Operating pressure: 0.1-0.9 MPa
- Port size: PT1/8 (G1/8 optional)
- Piston rod diameter: 12mm
- Rod end thread: M12×1.25
- Buffer type: Adjustable pneumatic cushioning
- Mounting style: Basic type (MF1) with optional front/rear flange
- Temperature range: -20℃ to 80℃
- Seal material: NBR (nitrile rubber) standard
- Weight: 0.68kg (bare cylinder), 0.75kg with accessories
- Dimensions:
- Length: 135mm (min. retracted length)
- Width: 48mm (mounting bracket width)
- Height: 50mm (cylinder body diameter)
Premium corrosion-resistant cylinder with full stainless steel construction, featuring precision honed tube and dual cushioning adjustment. The compact MAC series combines high rigidity with 50% reduced installation space versus standard cylinders. Requires ISO 8573-1:2010 Class 3-4-3 compressed air quality.
Industrial Applications:
- Cleanroom automation in semiconductor manufacturing
- Chemical processing equipment actuators
- Food packaging machinery (NSF-compliant design)
- Marine environment automation systems
- High-cycle medical device mechanisms
Operational guidance:
For maximum service life, maintain 0.3-0.6 MPa operating pressure and lubricate with ISO VG32 turbine oil.
Avoid side load exceeding 15N·m. Installation torque: 12-15N·m for mounting bolts.
| Property | Property Value |
|---|---|
| sku | MAC40X25SCA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Stroke | <25 mm> |
