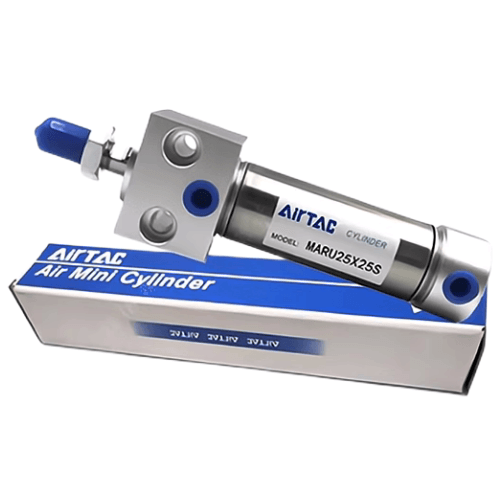

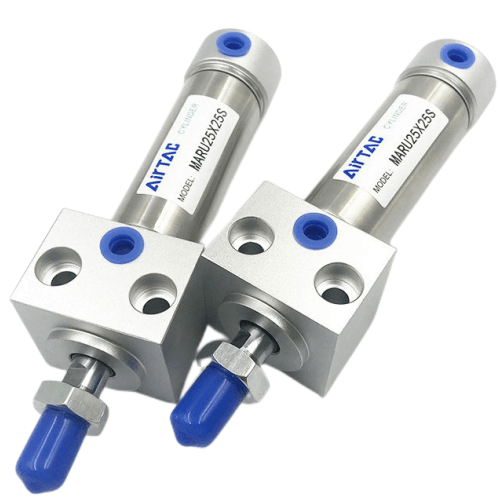

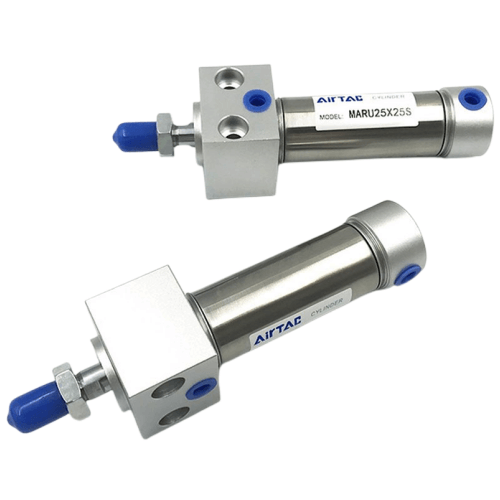

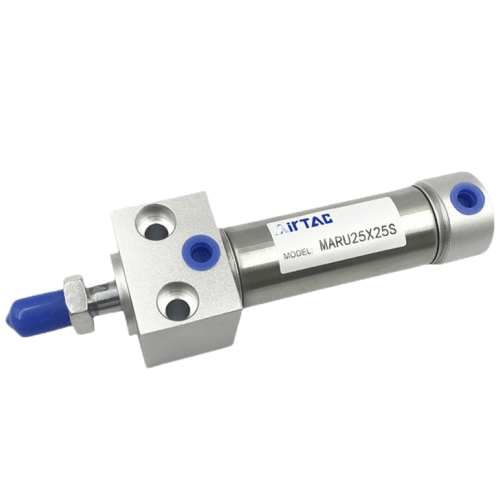

Airtac MARU Stainless Steel Mini Cylinder MARU25X80S
2. Features asymmetrical bidirectional piston seal configuration with compact dimensions and integrated oil reservoir functionality;
3. Integrated cushioning pads on both end caps mitigate impact during directional changes;
4. Multiple rear cover configurations facilitate flexible mounting solutions;
5. Riveted composite enclosure structure ensures reliable connection between end caps and stainless steel barrel;
6. Precision-engineered stainless steel tubing barrel demonstrates exceptional mechanical strength and superior corrosion resistance;
7. Comprehensive options including multiple bore sizes and mounting accessories available for customized applications;
8. Full magnetic circuit pre-installed across all series models.
Category: Stainless Steel Miniature Cylinders | Brand: AIRTAC | Series: MARU
AirTAC MARU Stainless Steel Mini Cylinder MARU25X80S Specifications
- Model: MARU25X80S
- Bore size: 25mm
- Stroke: 80mm
- Material: Stainless steel (SUS304 barrel/piston rod)
- Operating pressure: 0.15–0.7 MPa
- Temperature range: -20℃ to 80℃
- Cushion type: Adjustable rubber buffer
- Mounting style: Basic type (MF1)
- Port size: M5×0.8 (G1/8 optional)
- Seal material: NBR/FKM (optional)
- Rod thread: M10×1.25
- Weight: 0.85kg
- Dimensions: 135mm(L) × 50mm(W) × 50mm(H)
- Protection rating: IP65 (standard), IP67 (w/ special seals)
- Max theoretical thrust: 88N @0.5MPa
Compact stainless steel cylinder with full-body corrosion resistance, featuring precision-ground rod and chromium-plated piston for smooth operation. Integrated shock absorption reduces end-impact noise to ≤75dB. Optional auto switch grooves (M5/M9) for sensor mounting. Requires ISO 8573-1 class 3 compressed air.
- Food processing machinery (washdown environments)
- Semiconductor wafer handling robots
- Medical sterilization equipment actuators
- Pharmaceutical packaging lines
- Coastal area automation systems
Installation note:
Use anti-vibration pads when mounting on thin panels (>2mm thickness recommended).
Lubricate with ISO VG32 hydraulic oil during maintenance cycles. Avoid lateral
force exceeding 15N on piston rod.
| Property | Property Value |
|---|---|
| sku | MARU25X80S |
| Front Cover Type | Upper Fixed Type |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | 80 mm |
