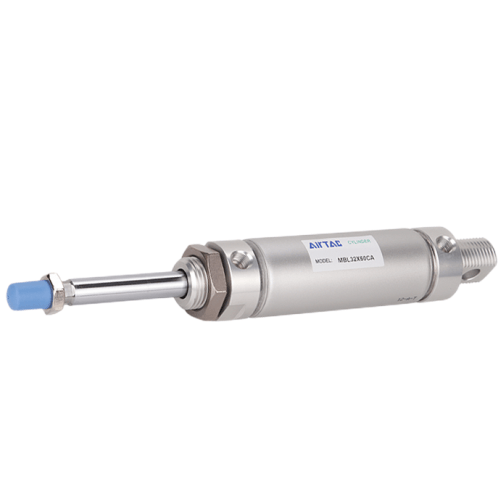

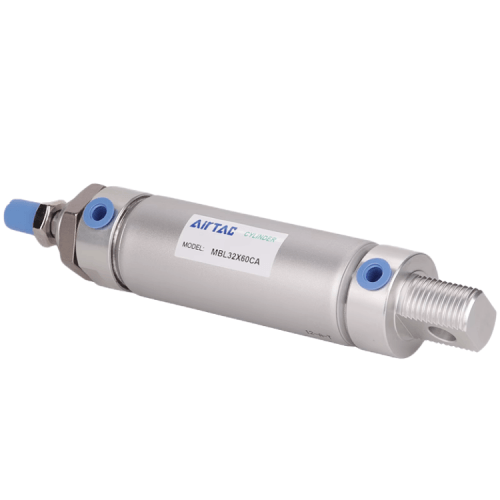

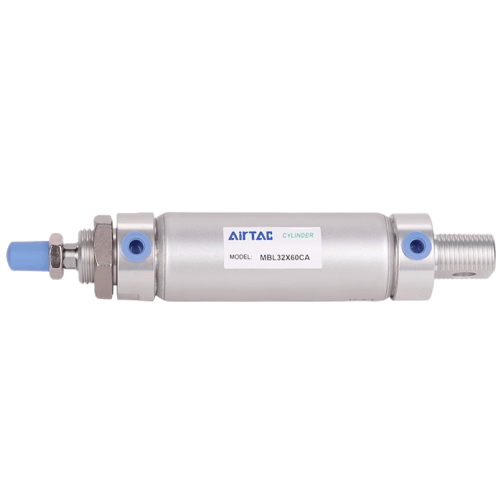

Airtac MBL Aluminum Alloy Mini Cylinder MBL40X450SU
1. Constructed with precision-engineered aluminum alloy tubing for optimal strength-to-weight ratio;
2. Incorporates zinc alloy front/rear covers with riveted overlapping structure ensuring secure connections;
3. Utilizes aerofoil-shaped bidirectional piston sealing configuration offering compact dimensions and integrated oil reservoir function;
4. Multiple rear cover configurations enable flexible mounting solutions;
5. Comprehensive range of standard cylinder specifications and optional mounting accessories available for customized applications.
Category: Aluminum Alloy Mini Cylinders | Brand: AIRTAC | Series: MBL
AirTAC MBL Series Aluminum Miniature Cylinder MBL40X450SU Technical Details
- Model: MBL40X450SU
- Type: Double-acting cylinder with magnetic piston
- Bore size: 40mm
- Stroke: 450mm (adjustable cushion)
- Operating pressure: 0.15-0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting style: Basic type (MF1) with standard foot mounting
- Port size: M5x0.8 (Rc1/8/NPT1/8 optional)
- Material: Aluminum alloy body, NBR seals
- Piston rod material: Stainless steel (SUS304)
- Weight: 2.35kg (excluding accessories)
- Dimensions: 550mm(L) × 62mm(W) × 62mm(H)
- Max theoretical thrust: 502N @0.6MPa
- Speed range: 50-750mm/s
- Protection class: IP54 (standard)
This compact aluminum cylinder combines extended stroke capability with space-saving design, featuring anodized surface treatment for enhanced corrosion resistance. The built-in magnet in piston enables position sensing compatibility with magnetic switches (D-M9N series recommended). Pre-lubricated for immediate use with filtered air.
- High-speed pick-and-place automation systems
- Precision material handling in cleanroom environments
- Textile machinery tension control mechanisms
- Semiconductor wafer processing equipment
- Vertical lifting applications in packaging lines
Installation guidelines:
Ensure proper rod alignment (±0.5° angular tolerance) and use flexible couplings for stroke over 300mm.
Maintain 1.5mm minimum clearance between magnetic switch and cylinder body. Lubricate every 3 months under normal operation.
| Property | Property Value |
|---|---|
| sku | MBL40X450SU |
| Rear Cover Type | Flat Tail Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Stroke | 450mm |
