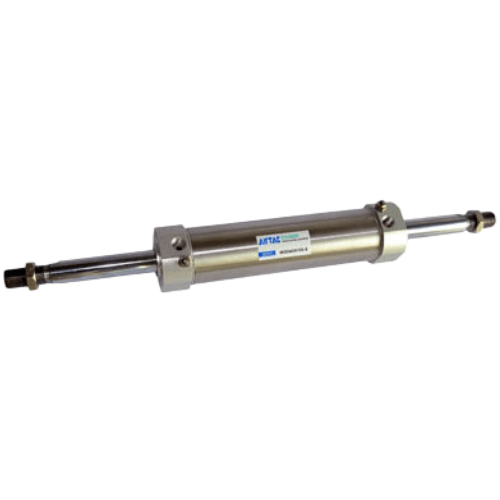

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD32X200

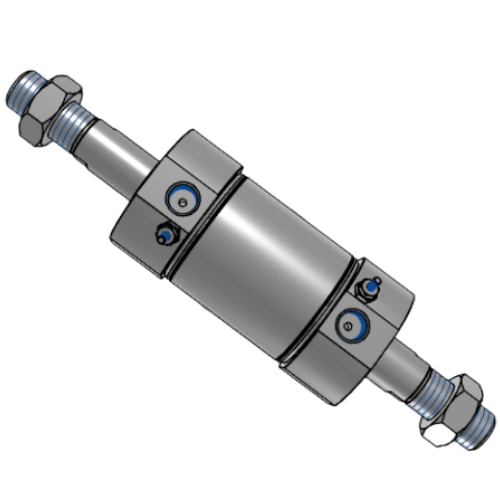

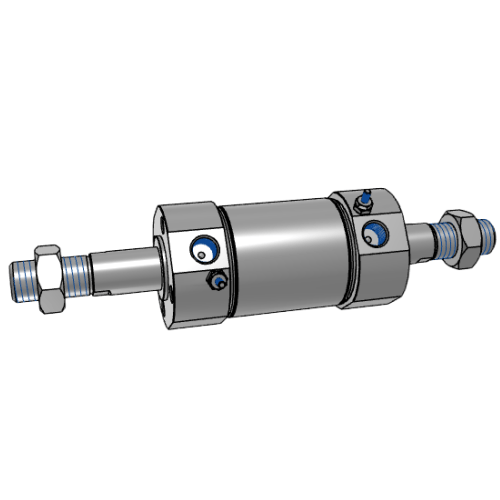

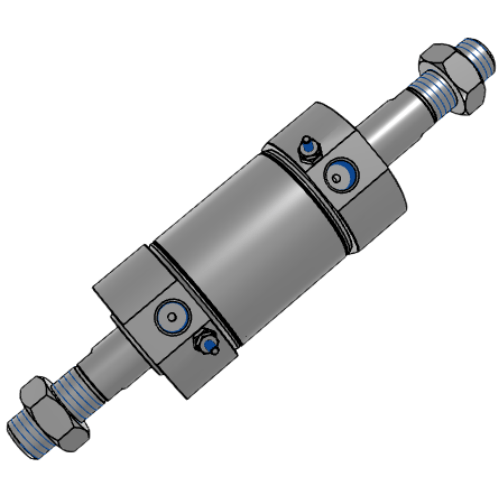

The AirTAC MGCD32X200 is a double acting, double-rod JIS round-body mini cylinder with a 32 mm bore and 200 mm stroke. Because a 12 mm hard-chrome rod exits BOTH covers with the same M10x1.25 male thread at each end, the effective area is the rod-side area in both directions, so output is equal both ways: about 345.6 N at 0.5 MPa and 483.8 N at 0.7 MPa (theoretical maximum 70.5 kgf at 1.0 MPa). A variable air cushion at each end decelerates the piston smoothly, letting this 32 mm cylinder run faster or carry heavier loads than an un-cushioned build. As a rough buyer insight, plan on roughly 17 kg of safe vertical load, which is about half of the 35 kg the 345.6 N push represents at 0.5 MPa.

Construction follows the JIS mini-cylinder footprint with a riveted SUS304 stainless barrel and hard-chrome-plated carbon steel rod, and a two-way lubricant-storing piston seal. It runs on air filtered to 40 um at 0.15-1.0 MPa (22-145 psi), tolerates a proof pressure of 1.5 MPa (215 psi), works from -20 to +70 C, and covers 30-800 mm/s. Ports are 1/8". The rear rod end doubles as a mounting point for a stop, flag or second load, and anti-rotation comes naturally from the through-rod. Mount with the LB foot or FA flange, add I or Y rod knuckles, and order the optional S code (magnet) if you want CMSG, DMSG or EMSG switch sensing; this standard MGCD32X200 ships without a magnet, so no sensor can be mounted.
