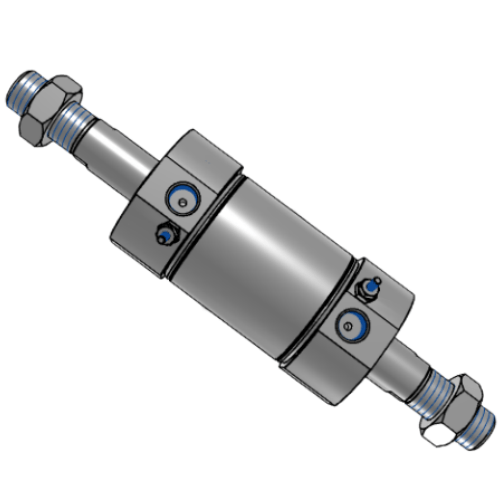

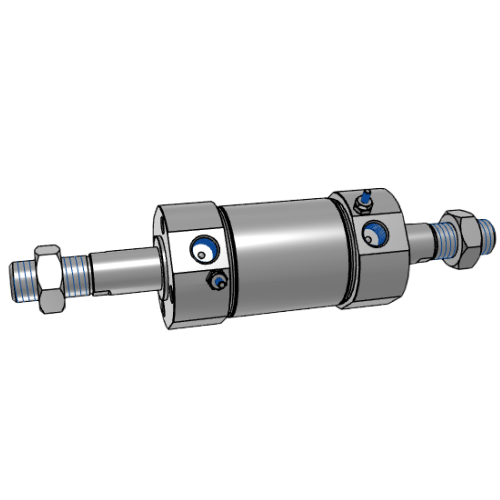

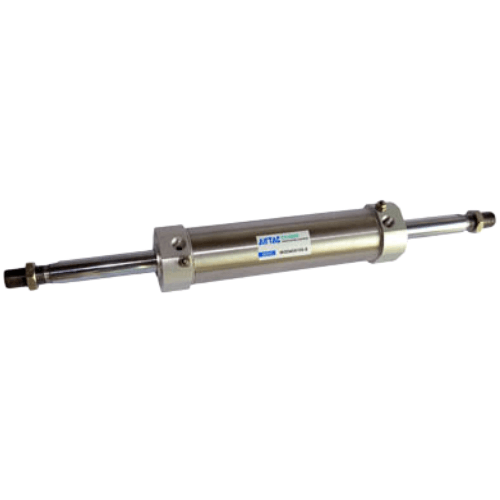

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD50X500
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Mini Cylinder MGCD50X500 Technical Details
- Model: MGCD50X500
- Bore size: 50mm
- Stroke: 500mm
- Operating pressure: 0.1–1.0 MPa
- Operating temperature: -20℃ to 150℃
- Medium: Clean air (lubricated/non-lubricated)
- Port size: M5x0.8 (G1/8 adapter optional)
- Cushioning: Adjustable rubber buffer
- Piston rod thread: M10x1.25
- Mounting type: Basic fixed (MF1) with front flange
- Material: Stainless steel (SUS304 barrel, CR12MoV piston rod)
- Seal material: NBR/FKM (optional)
- Weight: 2.38kg (excluding accessories)
- Dimensions:
- Body diameter: Φ50mm
- Extended length: 638mm (stroke+min. length)
- Retracted length: 138mm
- Mounting base: 70mm x 50mm
Corrosion-resistant stainless steel cylinder with precision ground rod, designed for harsh environments requiring frequent washdowns or chemical exposure. Features double-acting operation and 20% higher lateral load capacity than standard models. Includes anti-rotation guide for stable linear motion.
- Pharmaceutical cleanroom automation
- Food processing machinery (FDA-compliant version available)
- Marine equipment controls
- High-temperature furnace door mechanisms
- Precision glass molding systems
Operation tip:
For full stroke applications exceeding 400mm, install intermediate support brackets every 300mm
to prevent rod deflection. Use regulated air supply with 25μm filtration for optimal seal life.
| Property | Property Value |
|---|---|
| sku | MGCD50X500 |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Stroke | 500mm |
