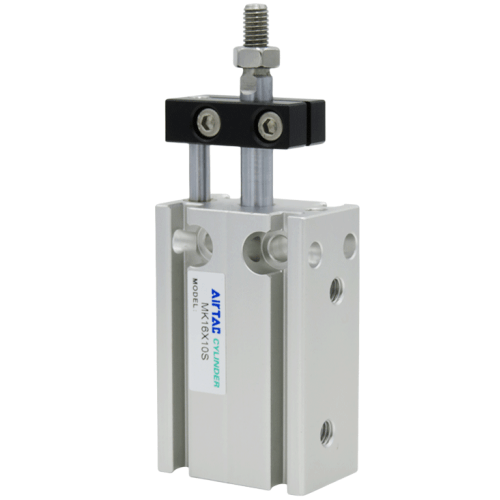

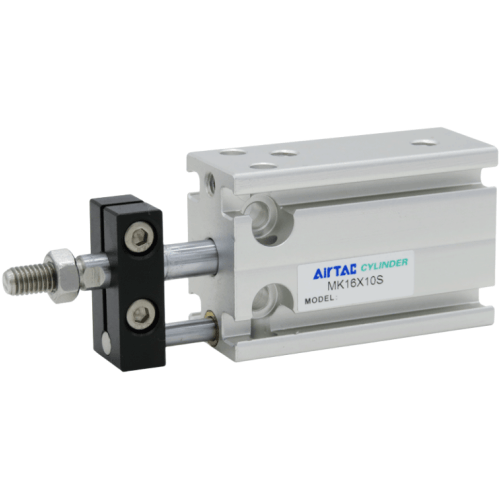

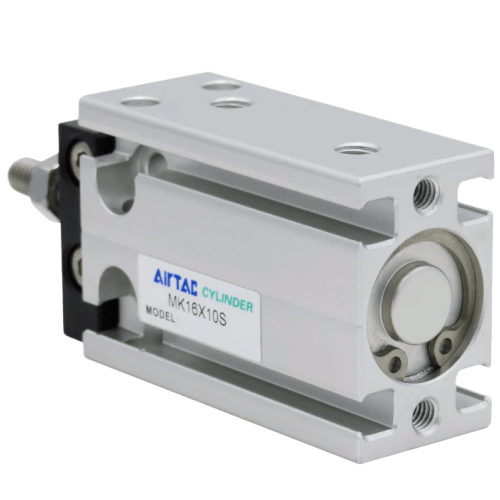

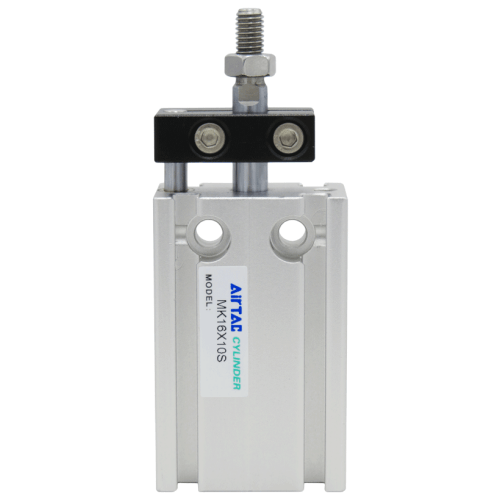

Airtac MK Series Multi-position Locking Cylinder MK25X50S
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
AirTAC MK Multi-Position Locking Cylinder MK25X50S Specifications
- Model: MK25X50S
- Type: Multi-position lockable double-acting cylinder
- Bore size: 25mm
- Stroke: 50mm
- Operating pressure: 0.15–0.8 MPa
- Locking positions: 3 fixed positions (extended/mid/retracted)
- Mounting style: Standard ISO 15552 foot mounting
- Cushioning: Adjustable air cushion at both ends
- Piston rod material: Hard chrome-plated steel
- Seal material: NBR (nitrile rubber)
- Ambient temperature: -20℃ to 80℃
- Port size: G1/8 (M5 optional)
- Weight: 0.82kg (without accessories)
- Dimensions:
- Body length: 166mm
- Stroke-adjusted total length: 216mm
- Width (mounting base): 34mm
- Height (including rod): 54mm
High-precision locking cylinder with mechanical position memory function, featuring a unique dual-piston design for stable intermediate stops. The anodized aluminum body ensures corrosion resistance in humid environments. Includes magnetic piston for position sensing compatibility (sensor not included). Requires ISO 8573-1 Class 3 lubricated or non-lubricated air.
- Multi-stage positioning in automated assembly lines
- Precision clamping devices for CNC machining centers
- Material handling with intermediate buffering positions
- Packaging machinery requiring sequenced movements
- Automated test equipment with position verification
Installation note:
For optimal locking accuracy, maintain perpendicular alignment (±0.5°) between cylinder axis and load direction.
Apply 2-3 drops of ISO VG32 hydraulic oil monthly through air inlet for maintenance.
| Property | Property Value |
|---|---|
| sku | MK25X50S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | <50mm> |
