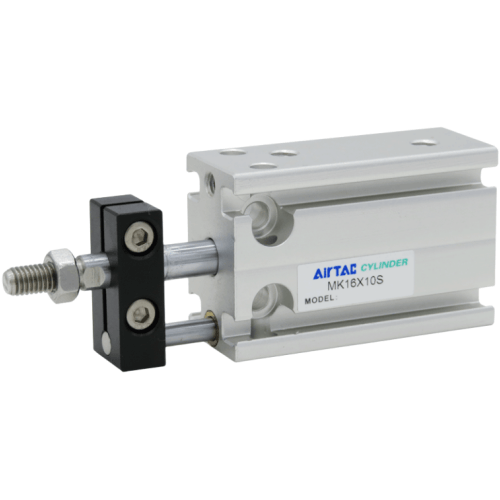

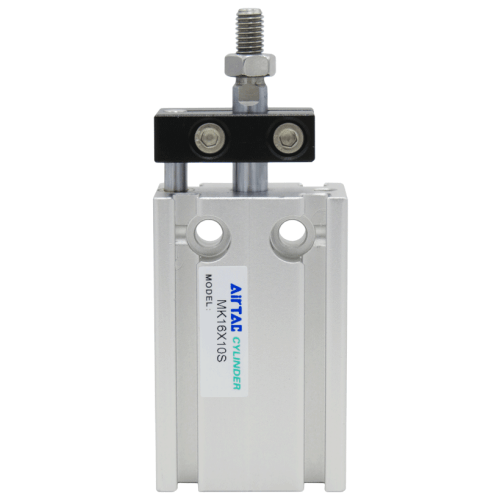

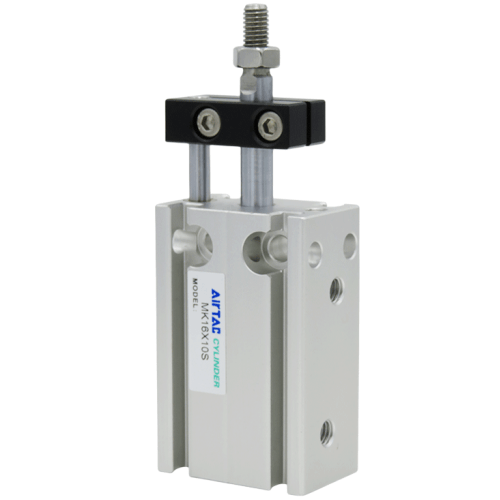

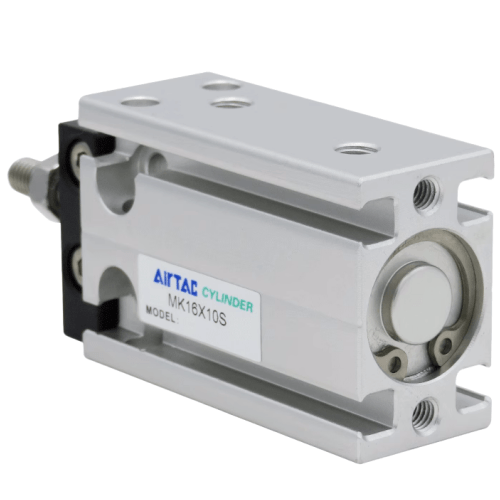

Airtac MK Series Multi-position Locking Cylinder MK25X60S
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
AirTAC MK Series Multi-Position Locking Cylinder MK25X60S Specifications
- Model: MK25X60S
- Type: Multi-position rod lock cylinder (double-acting)
- Bore size: 25mm
- Stroke: 60mm
- Mounting style: Fixed center (ISO 15552 standard)
- Operating pressure: 0.05–1.0 MPa
- Locking positions: 3-stage (adjustable via external mechanical stoppers)
- Temperature range: -10℃ to 80℃
- Cushioning: Adjustable pneumatic cushion at both ends
- Port size: G1/8 (BSPP thread)
- Rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Weight: 890g ±2%
- Dimensions:
- Body length: 138mm
- Extended length: 198mm (stroke included)
- Mounting width: 32mm
- Rod end thread: M10×1.25
- Mounting hole spacing: 50mm (center-to-center)
Precision multi-station cylinder featuring mechanical position locking with ±0.5mm repeatability. The MK25X60S combines position memory function with IP67-rated dust/water resistance. Its anti-rotation rod design ensures stable load handling, while the dual-sensor slots (T-slot and U-groove) enable flexible magnetic switch mounting.
- PCB board clamping/fixturing in electronics assembly
- Multi-stage press tool positioning
- Automated welding jig sequencing
- Packaging machine product height adjustment
- Textile machinery thread guide positioning
Installation note:
Lubricate rod with ISO VG32 hydraulic oil before initial operation.
For position locking engagement, maintain 0.2-0.3MPa residual pressure.
Avoid side loads exceeding 30N during operation.
| Property | Property Value |
|---|---|
| sku | MK25X60S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | 60mm |
