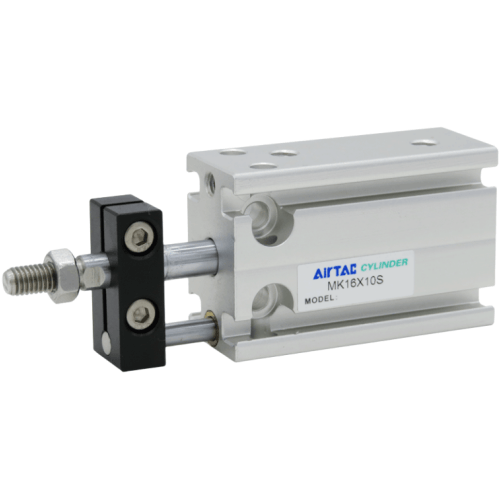

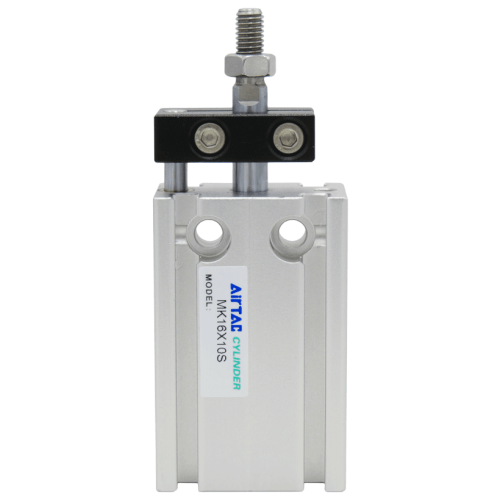

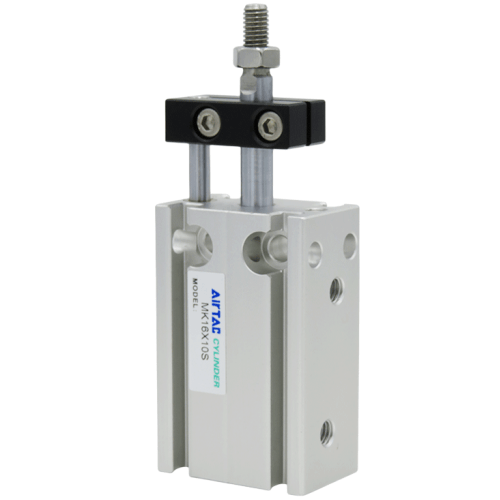

Airtac MK Series Multi-position Locking Cylinder MK6X20
$31.39
Regular price
$38.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MK6X20
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with enterprise standards;
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
Installation note:
Ensure compressed air is filtered (5μm or finer) and lubricated (ISO VG32 or equivalent).
For mid-stroke locking applications, maintain 0.3-0.5MPa minimum pressure for reliable
position retention. Avoid side loads exceeding 2N during operation.
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
AirTAC MK6X20 Multi-Position Fixed Cylinder Specifications
- Model: MK6X20
- Type: Compact multi-position locking cylinder
- Bore diameter: 6mm
- Stroke: 20mm
- Operating pressure: 0.05–0.7 MPa
- Temperature range: -10℃ to 70℃
- Port size: M5×0.8 (dual Rc1/8 optional)
- Mounting style: Front flange with 4×M3 threaded holes
- Piston material: Aluminum alloy with hard anodizing
- Seal type: NBR rubber seals
- Cushioning: Adjustable air cushion
- Weight: 0.25kg (without accessories)
- Dimensions: 150mm(L) × 20mm(W) × 20mm(H)
- Position accuracy: ±0.2mm (with lock mechanism engaged)
- Max piston speed: 500mm/s
Precision mini cylinder featuring 3-position mechanical locking (extended/retracted/mid-stroke) via integrated toggle clamps. Anti-rotation design maintains orientation stability during multi-axis operations. Corrosion-resistant construction with IP54 protection rating.
Typical Applications:
- PCB board positioning in SMT machines
- Semiconductor wafer handling systems
- Micro-precision clamping in medical device assembly
- Multi-stage positioning in packaging indexers
- Robotic end-effector tool switching mechanisms
Installation note:
Ensure compressed air is filtered (5μm or finer) and lubricated (ISO VG32 or equivalent).
For mid-stroke locking applications, maintain 0.3-0.5MPa minimum pressure for reliable
position retention. Avoid side loads exceeding 2N during operation.
| Property | Property Value |
|---|---|
| sku | MK6X20 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <6mm> |
| Stroke | <20mm> |
