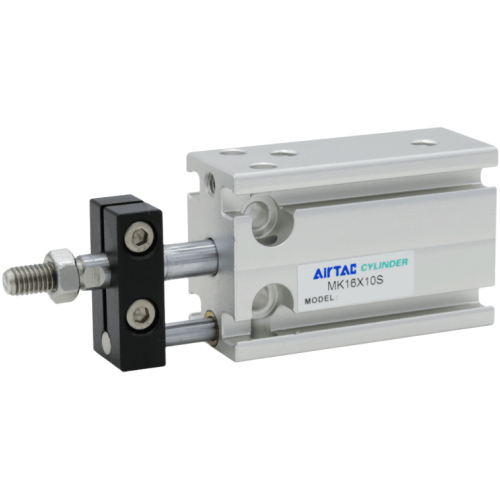

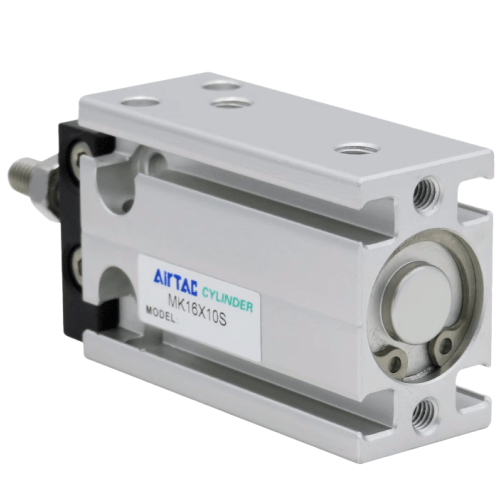

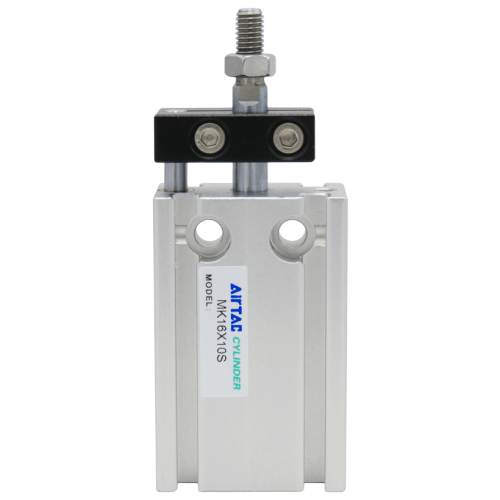

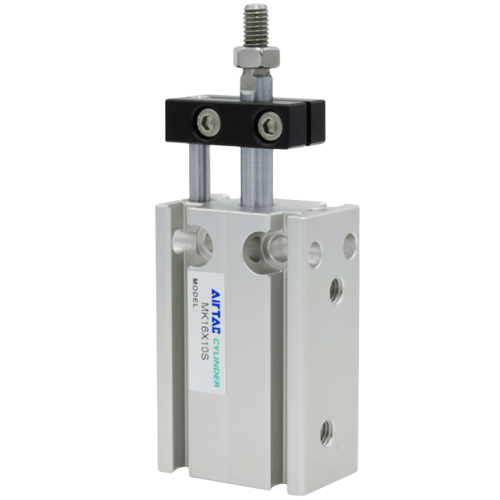

Airtac MK Series Multi-position Locking Cylinder MK6X40
$38.11
Regular price
$45.61
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MK6X40
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with enterprise standards;
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
Installation tips:
Apply silicone-free lubricant (ISO VG32) during assembly.
Ensure lateral load ≤0.3N·m and axial alignment within ±0.5°.
For multi-cylinder setups, maintain 5mm minimum spacing between units.
Do NOT use with pulsating pressures above 1.2MPa.
Locking mechanism requires minimum 0.3MPa to disengage safely.
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
AirTAC MK Series Multi-Position Locking Cylinder MK6X40 Technical Details
- Model: MK6X40
- Type: Compact multi-position locking cylinder (double-acting)
- Bore size: 6mm
- Stroke: 40mm
- Operating pressure: 0.05–0.9 MPa
- Port thread: M5×0.8 (standard), G1/8 optional
- Cushioning: Adjustable rubber buffer
- Mounting style: Female thread (M4×0.7) with guide slot
- Piston rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal type: NBR + PU hybrid seals
- Temperature range: -10℃ to 80℃
- Weight: 98g ±2g (excluding accessories)
- Dimensions:
- Length (retracted): 90mm
- Length (extended): 130mm
- Body diameter: Φ20mm
- Mounting base: 25mm × 18mm
Precision mini cylinder with mechanical locking mechanism for intermediate position holding. Features anti-rotation guide structure and IP54-rated dust protection. The low-friction design achieves ≤0.15N starting pressure, compatible with ISO 6432 mounting accessories.
Ideal for:
- PCB board clamping/fixturing in electronics assembly
- Precision stop mechanisms in semiconductor handlers
- Modular tooling systems requiring position memory
- Medical device actuation with space constraints
- Packaging machine gate positioning
Installation tips:
Apply silicone-free lubricant (ISO VG32) during assembly.
Ensure lateral load ≤0.3N·m and axial alignment within ±0.5°.
For multi-cylinder setups, maintain 5mm minimum spacing between units.
Do NOT use with pulsating pressures above 1.2MPa.
Locking mechanism requires minimum 0.3MPa to disengage safely.
| Property | Property Value |
|---|---|
| sku | MK6X40 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <6mm> |
| Stroke | <40mm> |
