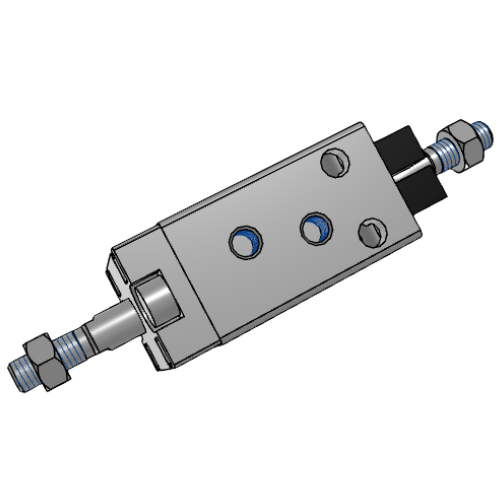

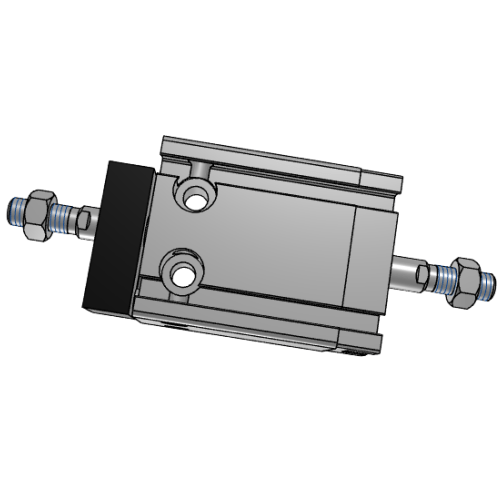

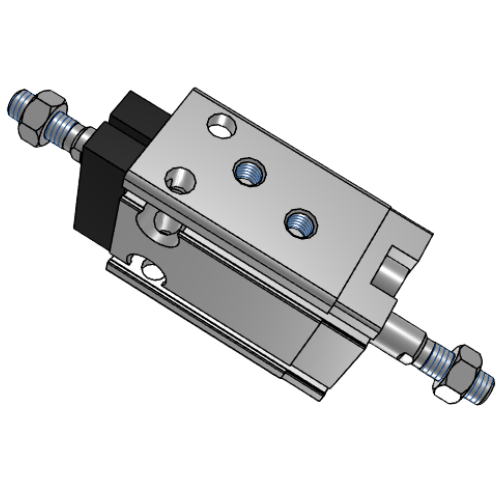

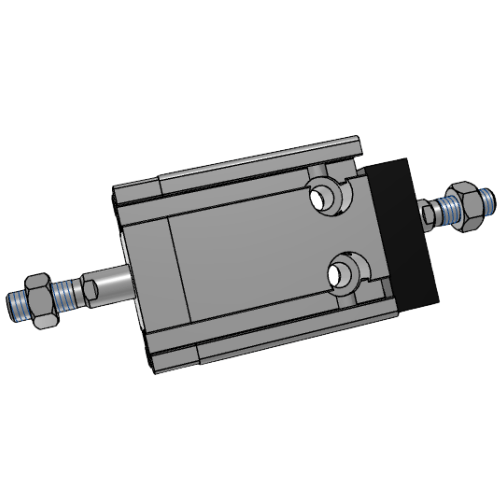

Airtac MKD Multi-position Clamping Cylinder MKD6X25
2. Body features multiple mounting configurations for simplified installation and operation;
3. Modular structure allows clustered assembly of multiple cylinders, enabling efficient space utilization;
4. Precision-guided piston rod ensures stable motion with maintenance-free operation (external lubrication not required);
5. Integrated anti-rotation locking block prevents rod rotation during operation;
6. Comprehensive specifications available for diverse application requirements;
7. Optional high-temperature seals extend operating temperature range to 150°C (0–150°C optional).
Category: Multi-position Fixed Cylinders | Brand: Airtac | Series: MKD
AirTAC MKD6X25 Multi-Position Locking Cylinder Specifications
- Model: MKD6X25
- Type: Compact multi-position locking cylinder (rodless type)
- Bore size: 6mm
- Stroke: 25mm (adjustable locking positions)
- Operating pressure: 0.1–0.8 MPa
- Max. piston speed: 500 mm/s
- Ambient temperature: -20℃ to 80℃
- Port size: M5x0.8 (dual ports)
- Mounting style: Foot/base mounting with 12mm spacing
- Piston material: Aluminum alloy (hard anodized)
- Seal material: NBR rubber
- Buffer type: Rubber cushion (both ends)
- Weight: ~0.15kg
- Dimensions: 98mm(L) × 28mm(W) × 32mm(H)
A precision linear actuator featuring mechanical locking at multiple intermediate positions (2-3 programmable stops). The rodless design minimizes lateral load while maintaining 0.05mm repeat positioning accuracy. Integrated groove slots enable direct sensor mounting for position feedback.
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Semiconductor wafer handling robots
- Micro-dispensing equipment
- Optical lens alignment fixtures
Operation tip:
Engage locking pins only when cylinder is stationary. For multi-position setups,
use external stoppers (sold separately) at 5mm intervals along the 25mm stroke.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | MKD6X25 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <6mm> |
| Stroke | <25 mm> |
