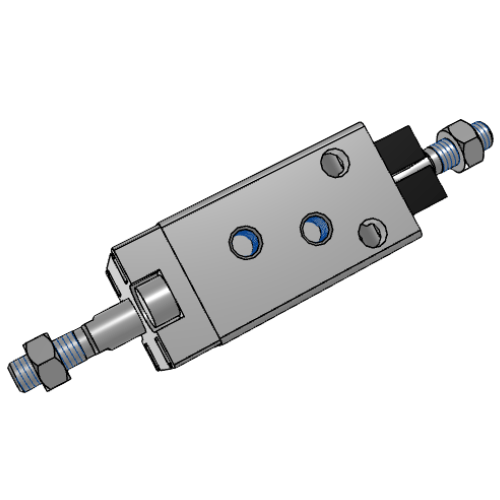

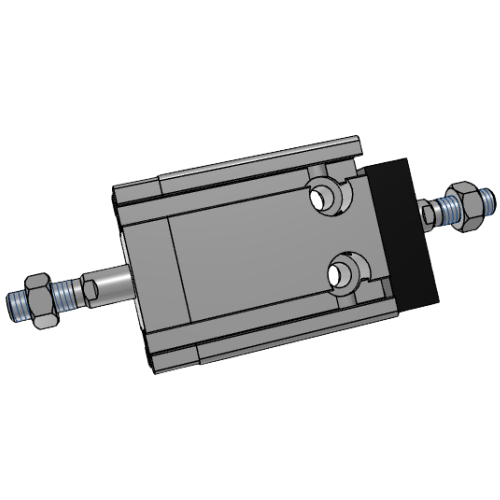

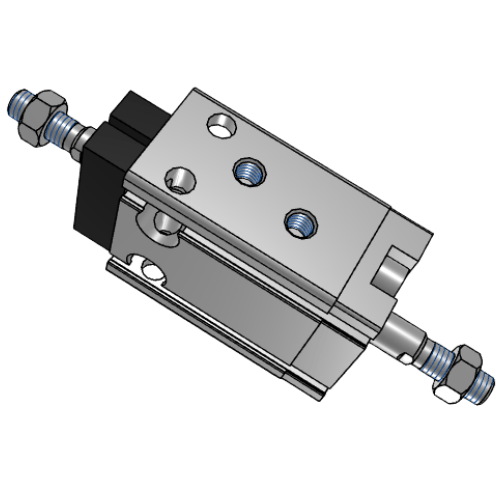

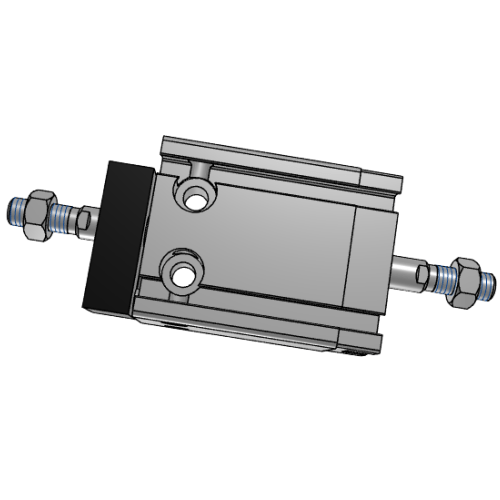

Airtac MKD Multi-position Clamping Cylinder MKD6X25S
$49.74
Regular price
$57.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MKD6X25S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with enterprise standards;
2. Body features multiple mounting configurations for simplified installation and operation;
3. Modular structure allows clustered assembly of multiple cylinders, enabling efficient space utilization;
4. Precision-guided piston rod ensures stable motion with maintenance-free operation (external lubrication not required);
5. Integrated anti-rotation locking block prevents rod rotation during operation;
6. Comprehensive specifications available for diverse application requirements;
7. Optional high-temperature seals extend operating temperature range to 150°C (0–150°C optional).
Category: Multi-position Fixed Cylinders | Brand: Airtac | Series: MKD
Operation note:
Engage locking mechanism only when cylinder is stationary. Lubricate guide rods monthly with ISO VG32 hydraulic oil. Maximum lateral load: 2N·m.
2. Body features multiple mounting configurations for simplified installation and operation;
3. Modular structure allows clustered assembly of multiple cylinders, enabling efficient space utilization;
4. Precision-guided piston rod ensures stable motion with maintenance-free operation (external lubrication not required);
5. Integrated anti-rotation locking block prevents rod rotation during operation;
6. Comprehensive specifications available for diverse application requirements;
7. Optional high-temperature seals extend operating temperature range to 150°C (0–150°C optional).
Category: Multi-position Fixed Cylinders | Brand: Airtac | Series: MKD
AirTAC MKD Multi-Position Locking Cylinder MKD6X25S Specifications
- Model: MKD6X25S
- Type: Multi-position locking cylinder (pneumatic)
- Bore size: 6mm
- Stroke: 25mm
- Operating pressure: 0.15–0.8 MPa
- Cushion type: Elastic buffer
- Locking positions: 3 (adjustable via external stoppers)
- Mounting style: Front flange (ISO 6432 standard)
- Port size: PT1/8 (dual ports at both ends)
- Temperature range: -20℃ to 80℃
- Material: Aluminum alloy body, stainless steel piston rod
- Seal material: NBR (nitrile rubber)
- Protection rating: IP40
- Weight: 0.35kg ±5%
- Dimensions: 100mm(L) × 25mm(W) × 25mm(H) (excluding mounting accessories)
Compact multi-station cylinder with mechanical locking mechanism for precise intermediate position control. Features wear-resistant guide bushings and dual anti-rotation design for stable load handling. Requires dry compressed air (ISO 8573-1:2010 Class 3.4.2).
Typical Applications:
- Semiconductor wafer handling robots
- Medical device assembly positioning
- Precision fixture clamping systems
- Automated optical inspection (AOI) equipment
- Multi-stage packaging machinery
Operation note:
Engage locking mechanism only when cylinder is stationary. Lubricate guide rods monthly with ISO VG32 hydraulic oil. Maximum lateral load: 2N·m.
Configuration Options:
- Adjustable stopper resolution: 0.5mm increments
- Optional magnetic sensor slots (M5 mounting)
- Customizable rod end threads (M4/M5/M6)
- High-temp variant available (up to 120℃)
| Property | Property Value |
|---|---|
| sku | MKD6X25S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <6mm> |
| Stroke | <25 mm> |
