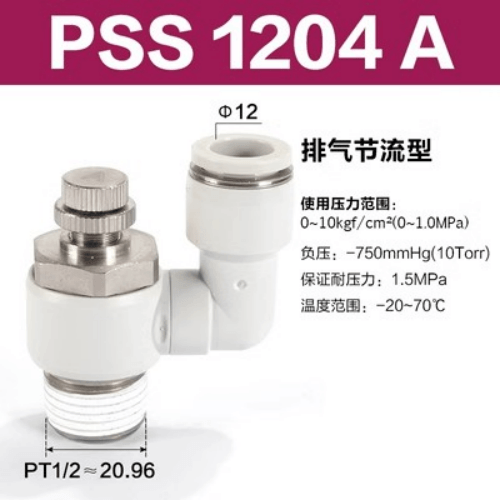

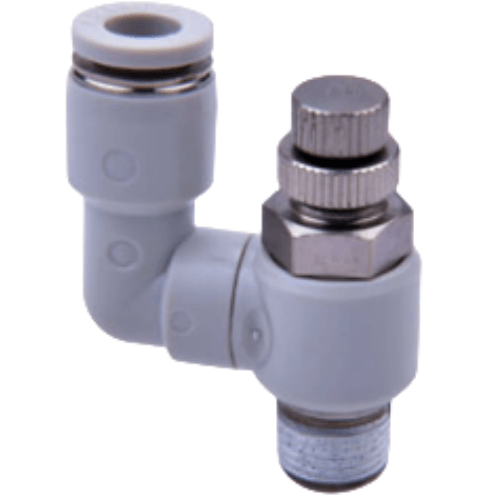

Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A
The AirTAC Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A is a genuine universal speed controller with knob with aluminium-alloy locking cap and 360 degree adjustable tube direction, used to set the speed of a pneumatic cylinder by throttling its air.
- TypeUniversal speed controller
- SeriesPSS
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- AdjustmentKnob with aluminium-alloy locking cap
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A
The PSS1204A is AirTAC's universal speed controller for Dia 12 soft nylon or polyurethane tubing, fitted to a 1/2in PT port. It meters air in one direction and lets it run free in the other, which is how you set the stroke speed of a pneumatic actuator. This is the A suffix, so the controlled path runs from the thread port to the tube. AirTAC treats meter-out as the first choice: on a double-acting cylinder driven by a solenoid valve, throttling the exhaust traps a back-pressure cushion that carries the load evenly, instead of letting the piston lurch ahead of the supply.
Unlike the fixed-direction PSL, the PSS body swivels a full 360 degrees on its 1/2in connection, so you can tighten the thread into whatever orientation the port gives you and then turn the body until the knob faces the operator. Adjustment is a grey knob over an aluminium-alloy locking cap: lift, set, press down to lock. Inside, a brass throttling column and body shape the flow, with a PBT holder, NBR O-ring and POM sealing faces completing the wetted stack. Fully closed it will still weep slightly by design - this is a flow control, not an isolating valve.
Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A Technical Specifications
| Model | Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A |
|---|---|
| Type | Universal speed controller |
| Series | PSS |
| Adjustment | Knob with aluminium-alloy locking cap |
| Orientation | 360 degree adjustable tube direction |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. A speed controller is not a shut-off valve - a small leak past a fully closed needle is normal. Close it before applying air, and turn it open slowly. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A
| PSS | Universal speed controller. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| A / B | A = meter-out (controls flow from the thread port to the tube). B = meter-in. |
| D | Black. Blank = grey. |
Meter-Out or Meter-In?
- check Meter-out (A) is the default. It throttles the air LEAVING the cylinder, so the piston runs against a back-pressure cushion and moves smoothly.
- check Use meter-out on double-acting cylinders - it is the one AirTAC lists as first priority.
- check Meter-in (B) throttles air ENTERING the cylinder. It suits single-acting cylinders and air motors.
- check Meter-in on a double-acting cylinder tends to give a jerky, stick-slip stroke under varying load.
- check Fit the controller at the cylinder port, not at the valve, so the throttled volume is as small as possible.
Where the Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A Is Used
Palletiser pusher stroke
On a case palletiser, a Dia 12 cylinder indexes layers onto the stack. Meter-out control with the PSS1204A cushions the exhaust so a heavy layer is placed instead of dropped, and the swivel body lets the 1/2in port thread point any way the machine frame dictates.
Timber saw gate
A sliding guard gate on a saw line must close firmly but never slam where operators work. A large-bore actuator throttled at the exhaust gives a controlled close, and the locking cap stops the setting drifting once the cycle time has been signed off.
Press tool return speed
On a pneumatic bench press, the fast return stroke needs slowing so the tool does not whip up and shower swarf. Tuning the return with a meter-out controller in the 1/2in capped port sets a repeatable, operator-safe upstroke.
Is the Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A the Right Part?
Choose the A (meter-out) version when a solenoid valve drives a double-acting cylinder - pick-and-place arms, presses, slides - because exhaust throttling keeps the stroke smooth under varying load. The B (meter-in) variant suits single-acting cylinders instead. Knob adjustment is faster to set during commissioning than the push-lock caps on the PTL family; if your fitting gets knocked by operators or chips, the push-lock design resists that better.
Sizing: on the PSS ladder the 1/2in thread is offered in Dia 12 only, so this is the largest part in the series and there is no bigger step up. If your thread is 3/8in, step down to PSS1203A for the same 12mm bore, or PSS1003A if a 10mm tube suits the cylinder port. Mount the controller directly in the cylinder port rather than at the valve - the throttled air volume stays small and speed control stays crisp.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
- ✓ Meter-out (A) unless you know you need meter-in
Airtac PSS Exhaust Throttle Type Universal Speed Control Valve PSS1204A FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), proof pressure 1.5 MPa, usable under vacuum to -750 mmHg (10 Torr), operating temperature -20 to +70 C. It accepts Dia 12 mm soft nylon or polyurethane tube on a 1/2in PT tapered thread and controls flow in the meter-out direction (A suffix), thread to tube.
The thread is PT taper, so seal it with PTFE tape or thread sealant on the male thread only - keep sealant out of the air path. Because the PSS body swivels 360 degrees after the nut is tightened, you do not need to fight the port orientation: tighten the joint, then rotate the body so the knob is reachable for adjustment.
