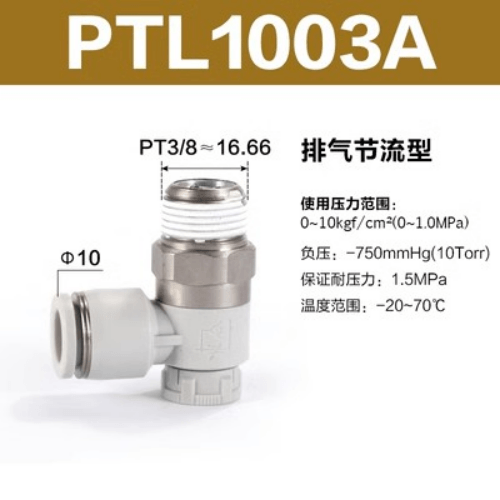

Airtac PTL Exhaust Throttle Type Speed Control Valve PTL1003A
2、Effectively regulates operational speed of pneumatic actuators and transmission of air pressure signals;
3、Features intuitive push-pull adjustment with superior control responsiveness;
4、Quick-adjust mechanism with precise flow control calibration;
5、Excellent flow characteristics with high sensitivity and fine-tuning capability;
6、Switchable exhaust throttle and intake throttle configurations compatible with various pneumatic actuators;
7、Nickel-plated brass surface enhances corrosion resistance and contamination prevention;
8、Integrated PT seal ring in threaded ports ensures leak-proof connection integrity.
AirTAC PTL Exhaust Throttle Flow Control Valve PTL1003A Specifications
- Model: PTL1003A
- Type: Bilateral exhaust throttle with check valve
- Port size: 1/8" NPT (M5 adapter optional)
- Operating pressure range: 0.05–0.8 MPa
- Max flow rate: 120 L/min (at 0.5 MPa)
- Adjustment method: Rotary knob with graduated scale (0-5)
- Body material: Reinforced PBT + glass fiber
- Seal material: Nitrile rubber (NBR) / Optional FKM
- Temperature range: -5℃ to 80℃ (NBR) / -20℃ to 150℃ (FKM)
- Weight: 185g ±5g
- Dimensions: 58mm(L) × 32mm(W) × 41mm(H)
- Thread engagement depth: 9mm minimum
- Pressure drop: ≤0.02 MPa at max flow
- Protection rating: IP54 (standard sealing)
Precision bidirectional speed controller featuring dual exhaust throttling with integrated check valve. The brass-threaded adjustment knob provides 300° rotation with 0.8N·m torque resistance, enabling micrometer-level flow control. Anti-vibration design maintains set values under 15Hz frequency mechanical shocks.
- Pneumatic cylinder speed synchronization in assembly lines
- Vacuum generator flow regulation for pick-and-place robots
- Medical bed actuator speed control
- Packaging machine clamp cylinder deceleration
- Semiconductor wafer handling equipment
Installation protocol:
Install vertically with flow arrow aligned to cylinder port. For cylinder speed adjustment:
1) Fully open valve during initial setup
2) Gradually tighten until desired return speed achieved
3) Lock with 0.7-1.2N·m torque
Use 5-40μm filtered air to prevent orifice clogging.
