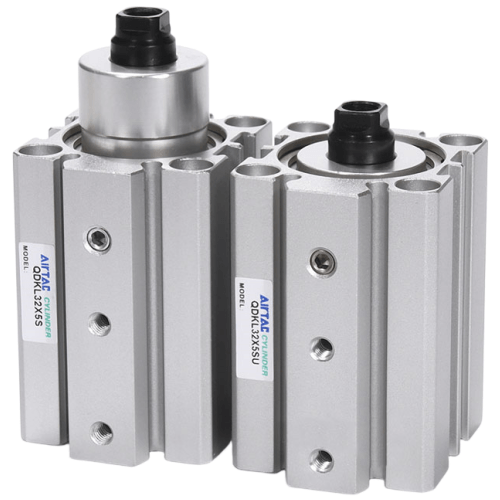

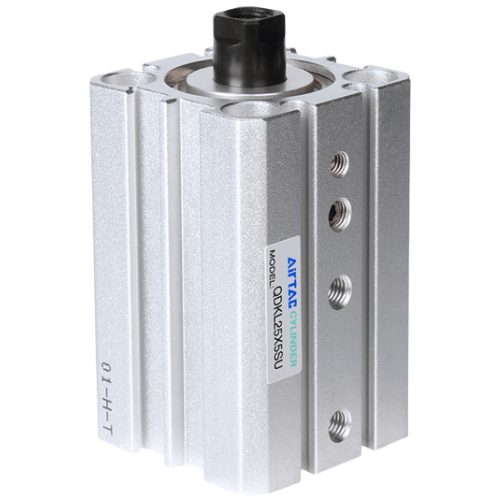

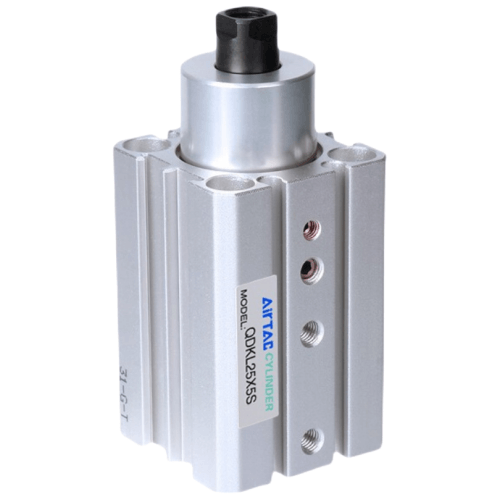

Airtac QDKL Pivot Clamp Cylinder QDKL20X5-S
2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL20X5-S Rotary Clamping Cylinder Technical Specifications
- Model: QDKL20X5-S
- Type: Compact rotary clamp cylinder (90° rotation)
- Bore size: 20mm
- Stroke: 5mm ±0.5mm
- Rotation angle: 90° ±2°
- Operating pressure: 0.1-0.8 MPa
- Temperature range: -20℃ to 80℃
- Port size: M5 (G1/8 optional)
- Cushioning: Rubber buffer with adjustable end lock
- Mounting: Standard side mounting holes (M4×0.7)
- Body material: Aluminum alloy (anodized)
- Rod material: Stainless steel (SUS304)
- Repeat positioning accuracy: ±0.05mm
- Rotation torque: 25 N·cm @ 0.5MPa
- Weight: 0.8kg ±5%
- Dimensions: 130mm(L) × 40mm(W) × 40mm(H)
- Protection class: IP40 (dust protected)
High-precision rotary clamping cylinder with integrated guide mechanism, featuring dual-action piston rotation and linear clamping force. The hardened stainless steel shaft and self-lubricating bushings ensure smooth operation under 300,000+ cycles. Includes magnetic piston for position sensing compatibility.
- CNC machine tool fixture positioning
- Automated welding jig rotation systems
- PCB assembly line component clamping
- Robotic end-effector tool changing
- Pharmaceutical blister packaging alignment
Installation guidance:
Maintain 0.5-1mm clearance between clamp arm and workpiece surface during initial setup.
Requires filtered lubricated air (ISO 8573-1:2010 [7:4:4] class) with 10-20 cSt oil viscosity.
| Property | Property Value |
|---|---|
| sku | QDKL20X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Direction Code | LH (Left-Hand) |
