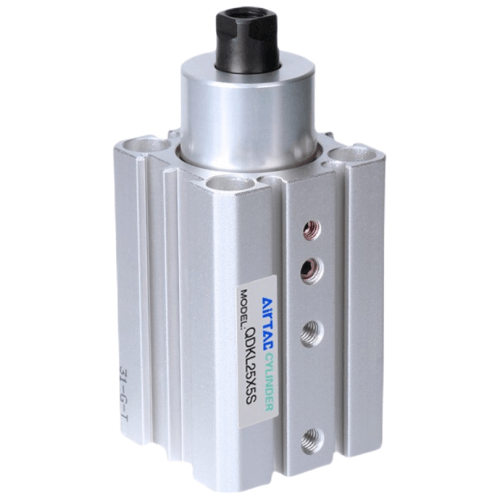

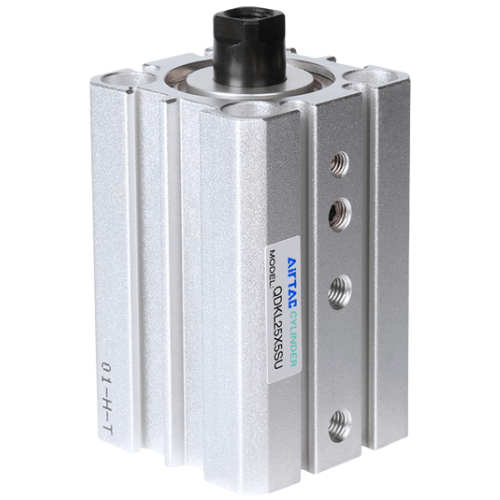

Airtac QDKL Pivot Clamp Cylinder QDKL20X5-S-U

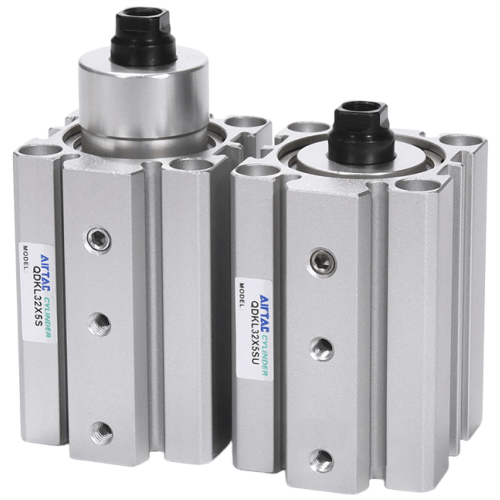

2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL20X5-S-U Rotary Clamping Cylinder Specifications
- Model: QDKL20X5-S-U
- Type: Double-acting planar rotary clamp cylinder
- Bore size: 20mm
- Stroke: 5mm
- Operating pressure: 0.1–0.8 MPa
- Temperature range: -20℃ to 80℃
- Port size: M5x0.8 (1/8" NPT optional)
- Rotation angle: 180° (±2° tolerance)
- Mounting style: Side-mount with reinforced flange
- Cushioning: Adjustable pneumatic cushion
- Seal material: Heat-resistant NBR
- Protection rating: IP40 (Dust-resistant)
- Weight: 0.8kg (excluding accessories)
- Dimensions: 155mm(L) × 60mm(W) × 60mm(H)
- Torque output: 1.8 N·m @ 0.6 MPa
- Piston speed: 50–800 mm/s
- Repeating accuracy: ±0.5°
Precision rotary clamp cylinder with integrated 180° rotation mechanism, featuring wear-resistant chromium-plated piston rod and anti-rotation guide pins. Designed for high-cycle clamping applications requiring angular positioning accuracy. Includes built-in magnet for sensor mounting (inductive sensor not included).
- Automated fixture systems in CNC machining
- Workpiece positioning in robotic welding cells
- PCB board clamping during SMT processes
- Precision alignment in optical inspection stations
- Rotary tool changers in modular assembly lines
Installation note:
Maintain perpendicular alignment between clamping surface and workpiece.
Use locking compound on mounting screws (M6x1.0). Lubricate with ISO VG32
hydraulic oil before initial operation. Avoid side-load forces exceeding 30N.
| Property | Property Value |
|---|---|
| sku | QDKL20X5-S-U |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Direction Code | LH (Left-Hand) |
