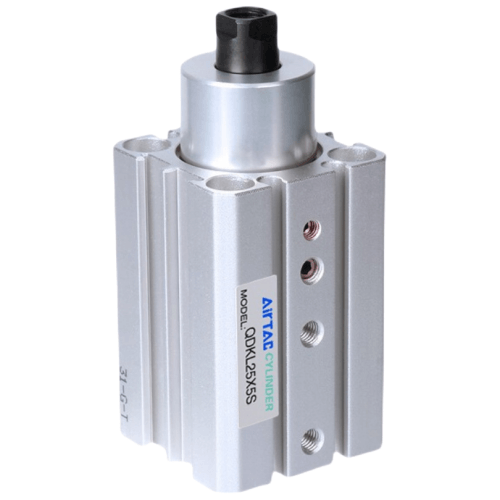

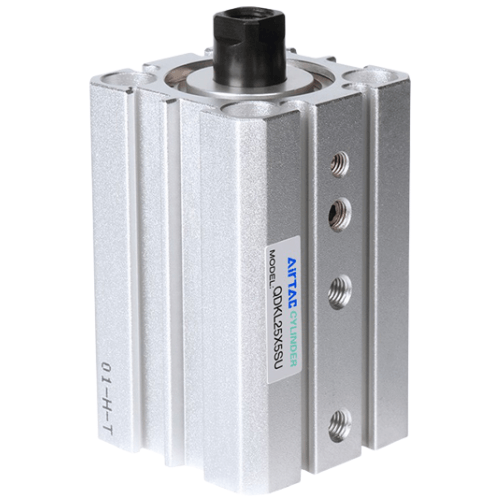

Airtac QDKL Pivot Clamp Cylinder QDKL25X5S

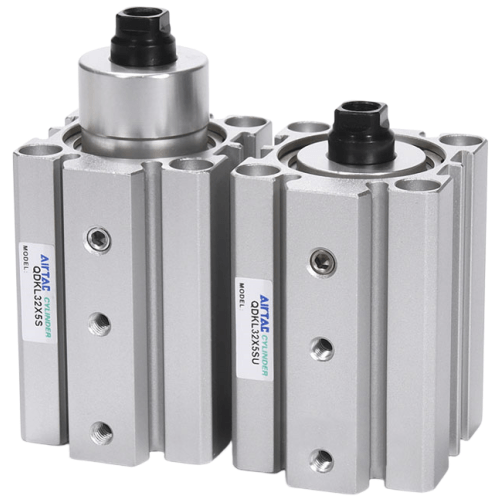

2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL25X5S Rotary Clamping Cylinder Specifications
- Model: QDKL25X5S
- Type: Double-acting rotary clamp cylinder
- Bore size: Ø25mm
- Stroke: 5mm
- Rotation angle: 90° ± 5°
- Operating pressure: 0.15–0.8 MPa
- Port size: M5x0.8 (standard), G1/8 optional
- Piston speed: 50-700mm/s
- Cushion type: Fixed rubber buffer
- Mounting style: Foot-mounted with 4xM5 threaded holes
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Weight: 0.85kg ±2%
- Dimensions (L×W×H):
- Total length: 116mm (extended)
- Body width: 40mm
- Rotation block height: 28mm
- Mounting base: 25×25mm
- Protection rating: IP54 (standard), IP67 optional
- Magnetic switch: Compatible (D-A93 series)
Compact rotary clamping cylinder combining linear motion with 90° rotation for precision workpiece positioning. Features wear-resistant guide mechanism with adjustable torque (3-5N·m via side hex screw). Includes anti-rotation safety lock and grease retention grooves for extended maintenance intervals.
- CNC machine tool fixture clamping
- Automated welding jig positioning
- PCB assembly line component flipping
- Robotic arm end-effector tool changing
- Packaging machine rotary sealing units
Operation tip:
Apply ISO VG32 hydraulic oil lubrication to air supply (1/1000 ratio).
Maintain 0.3mm minimum clearance between rotation block and workpiece.
Avoid side loads exceeding 20N during rotation phase.
| Property | Property Value |
|---|---|
| sku | QDKL25X5S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Direction Code | LH (Left-Hand) |
