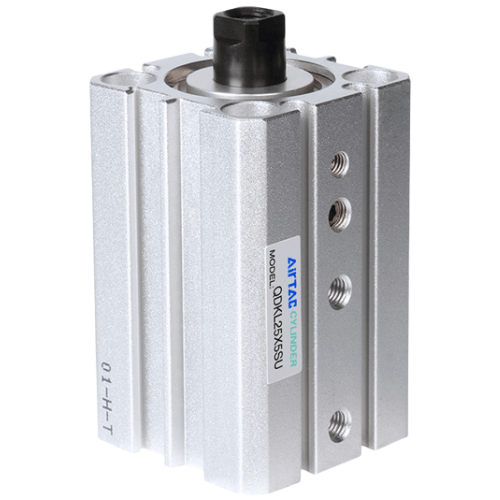

Airtac QDKL Pivot Clamp Cylinder QDKL25X5SU

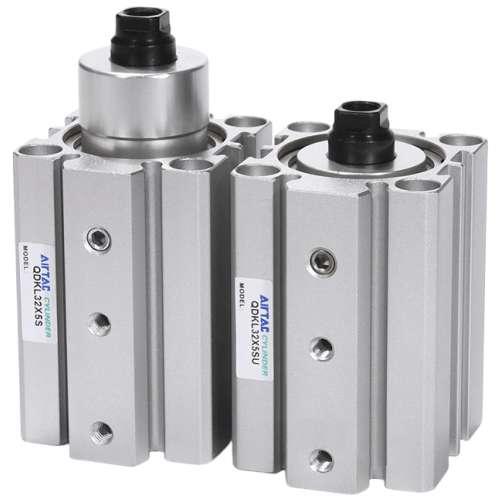

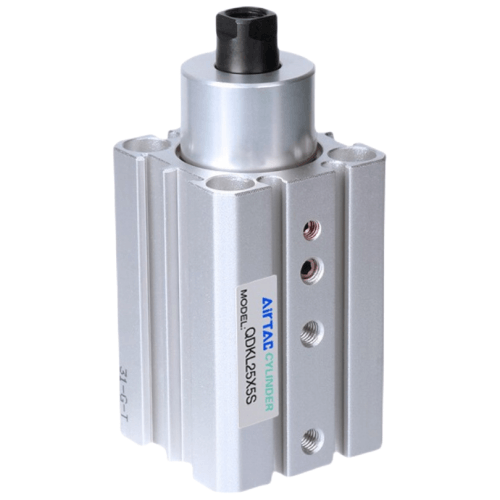

2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL25X5SU Plane Rotation Clamping Cylinder Specifications
- Model: QDKL25X5SU
- Type: Double-acting rotary clamp cylinder
- Bore size: 25mm
- Stroke: 5mm
- Rotation angle: 90°±5° (automatic reset)
- Operating pressure: 0.15–0.8 MPa
- Port size: G1/8 (ISO228 standard)
- Piston material: Aluminum alloy (hard anodized)
- Rod material: Stainless steel (SUS304)
- Seal type: NBR wear-resistant seals
- Temperature range: -10℃ to 70℃
- Weight: 0.82kg ±2%
- Dimensions: 98mm(L) × 50mm(W) × 50mm(H)
- Mounting type: Standard base with M5 threaded holes
- Protection rating: IP54 (dust/water spray resistant)
- Lubrication: Pre-lubricated (DO NOT relubricate)
Precision rotary clamping cylinder combining linear motion with 90° rotation, featuring integrated mechanical lock mechanism. The hardened guide structure ensures ≤0.03mm repeat positioning accuracy. Optimized air circuit design achieves 50% faster response than standard models. Includes anti-vibration pads for high-cycle applications.
- CNC machine tool fixture positioning
- Automated welding jig rotation systems
- Electronics assembly press-fit operations
- Pharmaceutical blister packaging sealing
- Robotic end-effector tool switching
Installation note:
Maintain 0.5-1mm clearance between clamp arm and workpiece surface during initial setup.
Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 air quality.
Maximum permissible side load: 15N at full extension.
| Property | Property Value |
|---|---|
| sku | QDKL25X5SU |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Direction Code | LH (Left-Hand) |
