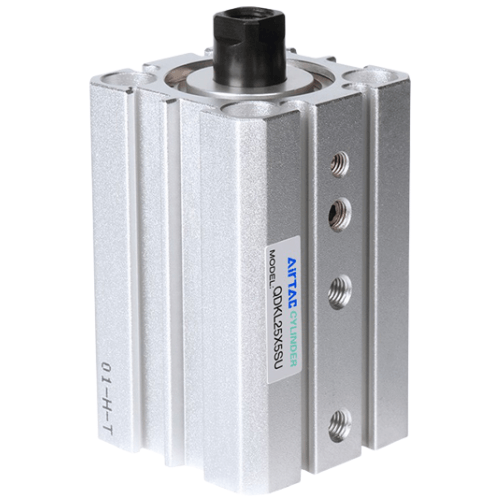

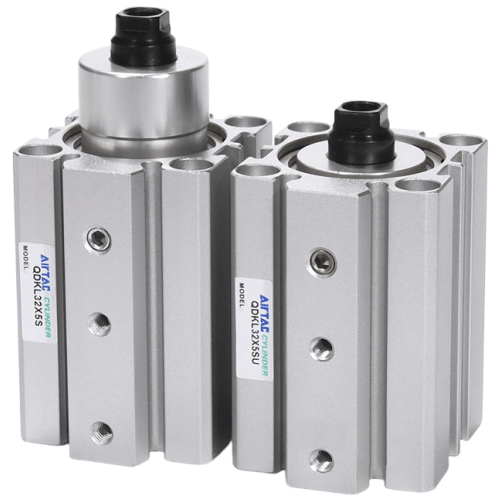

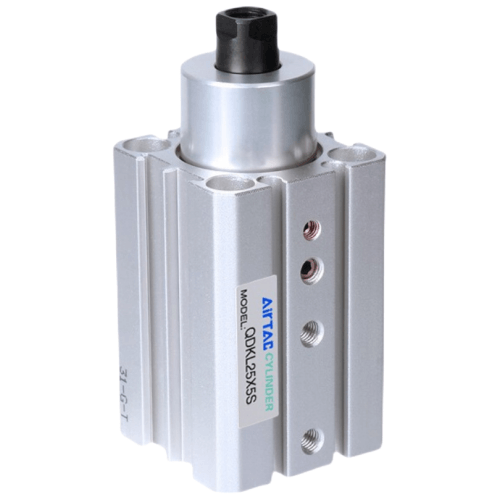

Airtac QDKL Pivot Clamp Cylinder QDKL32X5-S
2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL32X5-S Plane Rotary Clamping Cylinder Specifications
- Model: QDKL32X5-S
- Type: Double-acting rotary clamp cylinder with mechanical lock
- Bore size: Ø32mm
- Stroke: 5mm
- Rotation angle: 90° ±5°
- Operating pressure: 0.2–1.0 MPa
- Locking force: 1,080N @0.5MPa
- Piston speed: 50–500mm/s
- Ambient temperature: -10℃ to 60℃
- Port size: M5×0.8 (Standard) / NPT1/8 (Optional)
- Seal material: NBR (Standard) / FKM (Optional)
- Body material: Aluminum alloy (anodized)
- Piston rod material: Stainless steel SUS304
- Weight: 2.4kg ±5%
- Dimensions: 185mm(L) × 85mm(W) × 85mm(H)
- Mounting type: Standard base with 4×M6 threaded holes
- Accessories: Built-in magnetic sensor slot (no sensor included)
Heavy-duty rotary clamping cylinder featuring twin-piston torque amplification and mechanical position lock. The hardened steel cam mechanism ensures precise 90° rotation with ±0.5° repeat accuracy. Integrated wear-resistant bushings reduce metal-to-metal contact. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
- CNC machine tool fixture positioning
- Automotive welding jig clamping
- Die-casting mold securement systems
- Robotic arm end-effector tool switching
- Semiconductor wafer handling equipment
Operation guidance:
Lubricate pivot points with ISO VG32 hydraulic oil monthly.
Avoid side-load forces exceeding 200N during rotation phase.
Allow 2-second dwell time after clamping for pressure stabilization.
| Property | Property Value |
|---|---|
| sku | QDKL32X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Direction Code | LH (Left-Hand) |
