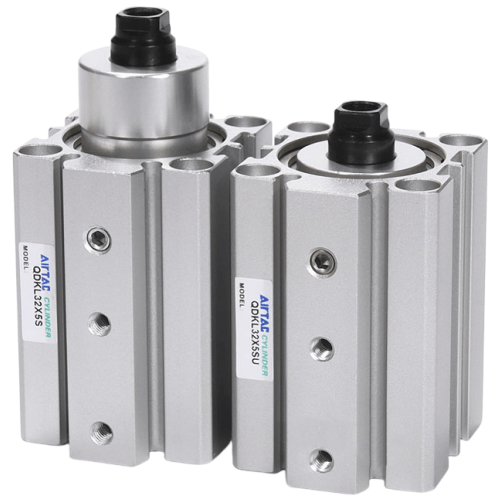

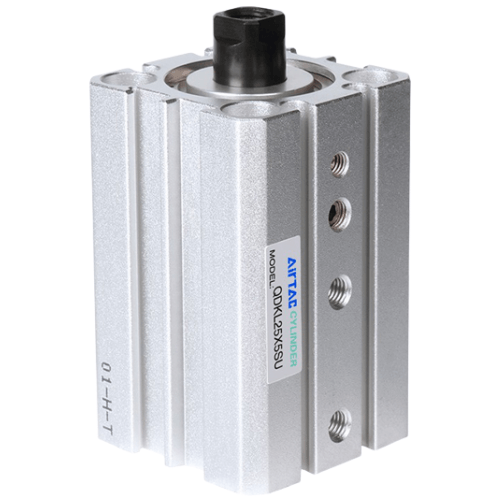

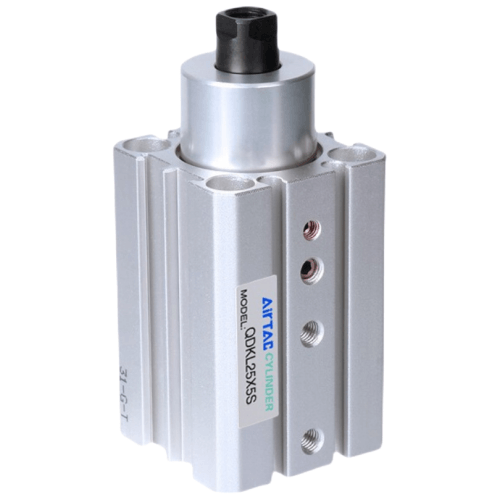

Airtac QDKL Pivot Clamp Cylinder QDKL32X5-S-U
2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL32X5-S-U Plane Rotation Clamping Cylinder Specifications
- Model: QDKL32X5-S-U
- Type: Plane rotation clamping cylinder (double-acting)
- Bore size: 32mm
- Stroke: 5mm
- Operating pressure: 0.1-0.8 MPa
- Operation mode: Pneumatic rotary clamping with linear thrust
- Port size: G1/8 (Rc1/8 optional)
- Cushioning: Adjustable hydraulic damper
- Rotation angle: 90°±2° standard
- Seal material: HNBR rubber (high nitrile)
- Temperature range: -10℃ to 80℃
- Protection rating: IP54 (dust & splash resistant)
- Weight: 1.85kg ±3%
- Dimensions: 160mm(L) × 32mm(Ø) × 96mm(H) (mounting base to rod end)
- Mounting pattern: 14mm × 14mm square flange with M5×0.8 threaded holes
- Rod thread: M12×1.25 external thread
- Max clamping force: 285N @0.5MPa
Precision rotary clamping cylinder with integrated linear thrust mechanism, engineered for high-rigidity fixturing applications. Features wear-resistant chrome-plated piston rod and aluminum alloy body with anodized finish. The dual-axis motion (rotation + linear) enables efficient workpiece positioning and secure clamping in confined spaces. Requires filtered lubricated air (ISO 8573-1 class 3.4.2).
- CNC machine tool pallet clamping systems
- Robotic welding jig position locking
- Automated inspection equipment fixturing
- Stamping press die change mechanisms
- Precision grinding machine workpiece retention
Installation note:
Ensure proper alignment of rotary axis before operation. Lubricate pivot points monthly with ISO VG32 hydraulic oil.
Maintain 0.3-0.6 MPa operating pressure for optimal torque output (12-15 N·m).
| Property | Property Value |
|---|---|
| sku | QDKL32X5-S-U |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Direction Code | LH (Left-Hand) |
