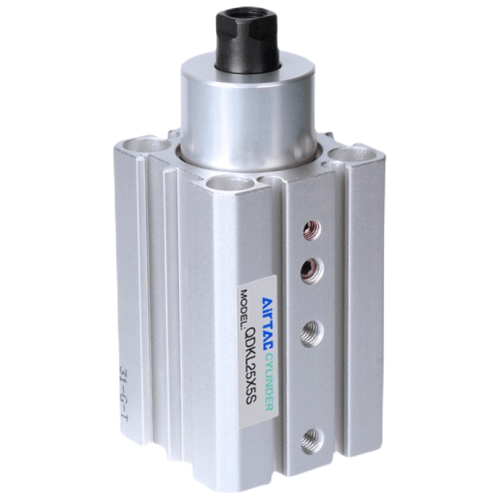

Airtac QDKL Pivot Clamp Cylinder QDKL40X5-S

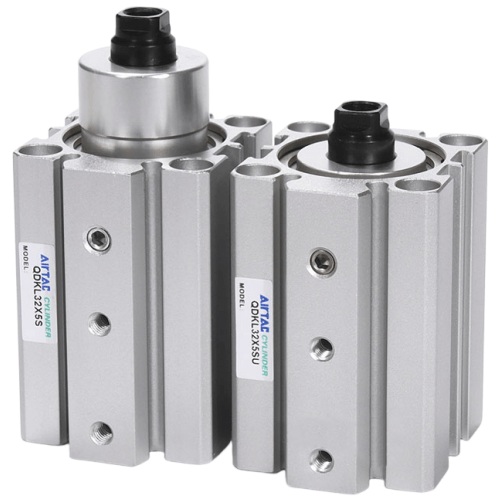

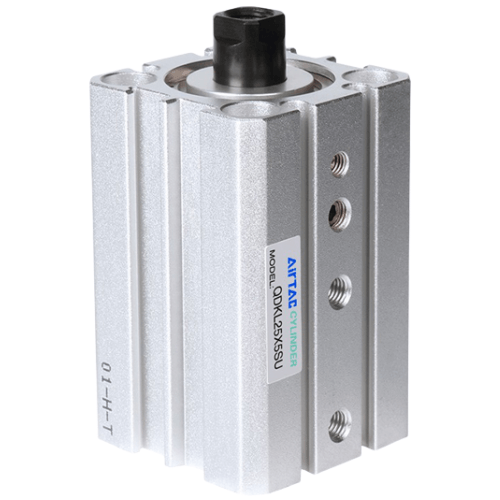

2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL40X5-S Flat Rotary Clamping Cylinder Specifications
- Model: QDKL40X5-S
- Series: QDKL (Flat Rotary Clamp Type)
- Bore size: 40mm
- Stroke: 5mm
- Rotation angle: 90° ±5°
- Operating pressure: 0.1–0.7 MPa
- Port size: PT1/4 (G1/4 optional)
- Clamping force: 1,030N @0.5MPa
- Rotation torque: 2.5N·m max
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Stainless steel (SUS304)
- Seal type: NBR wear-resistant seals
- Temperature range: -20℃ to 80℃
- Weight: 1.85kg ±3%
- Dimensions: 132mm(L) × 96mm(W) × 40mm(H) (Extended length: 137mm when rotated)
- Mounting: Through-hole M6×1.0×4 places
- Repeat positioning accuracy: ±0.2mm
- Air cushion: Adjustable buffer (both ends)
High-precision rotary clamping cylinder with integrated T-slot for tooling plate attachment. Features anti-rotation guide mechanism for stable 90° rotation and self-locking function during clamping. Corrosion-resistant construction with IP54 protection rating, compatible with ISO 6432 mounting standards.
- CNC machine tool fixture positioning
- Automated welding jig rotation systems
- Pallet clamping in FMS (Flexible Manufacturing Systems)
- Robotic arm end-effector tool switching
- Precision grinding machine workpiece holding
Installation notes:
1) Ensure proper alignment with guided rail systems.
2) Use M6 class 8.8 or higher mounting screws with Loctite 243.
3) Lubricate with ISO VG32 turbine oil through air line lubricator.
4) Max lateral load: 150N at clamp tip.
| Property | Property Value |
|---|---|
| sku | QDKL40X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Direction Code | LH (Left-Hand) |
